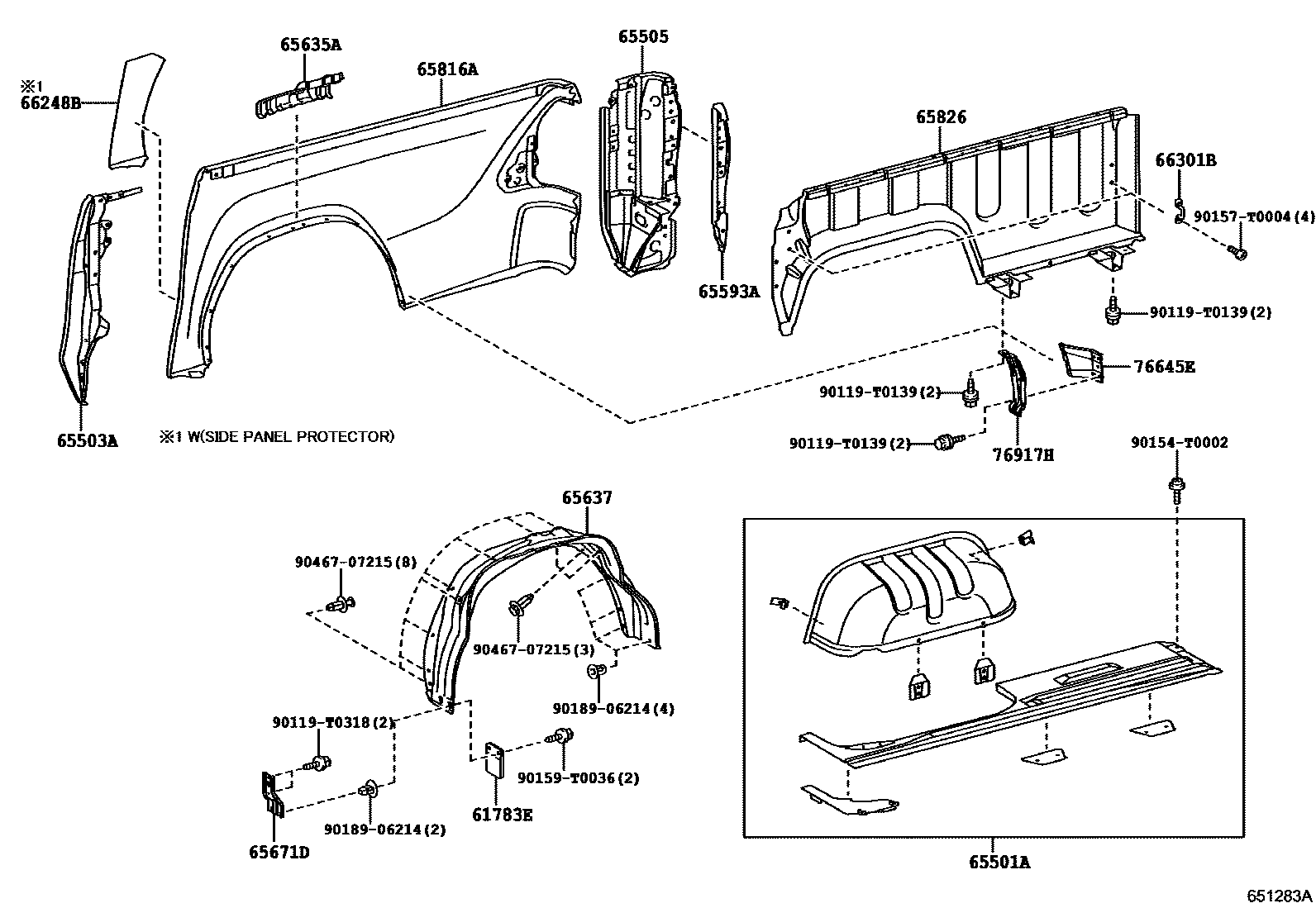

REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
EXCEPT PLANT TSAM
PLANT TSAM
PLANT TSAM
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
main65593-KK010iGUN12#..(SADCB,SAXTR,THDCB)..CBU;GUN135..(SADCB,SAXTR,THDCB)..(M,S)..CBU201506-202009
65635APANEL, WHEEL HOUSE, REAR RH
65637LINER, REAR WHEEL HOUSE, RH
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65816APANEL, REAR BODY SIDE, RH
65826PANEL, REAR BODY SIDE, INNER RH
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITHOUT
66301BHOOK SUB-ASSY, ROPE
76645EBRACKET, RR BODY MUDGUARD, RH
main76645-KK020iGUN12#..(SADCB,SAXTR,THDCB)..CBU;GUN135..(SADCB,SAXTR,THDCB)..(M,S)..CBU201506-202009
76917HMUDGUARD, SIDE, REAR RH
90119T0139
main90119-T0139
90119T0318
main90119-T0318
90154T0002
main90154-T0002
90157T0004
main90157-T0004
90159T0036
main90159-T0036
9018906214
main90189-06214
9046707215
main90467-07215
21 parts on this diagram · 6 diagrams in section
