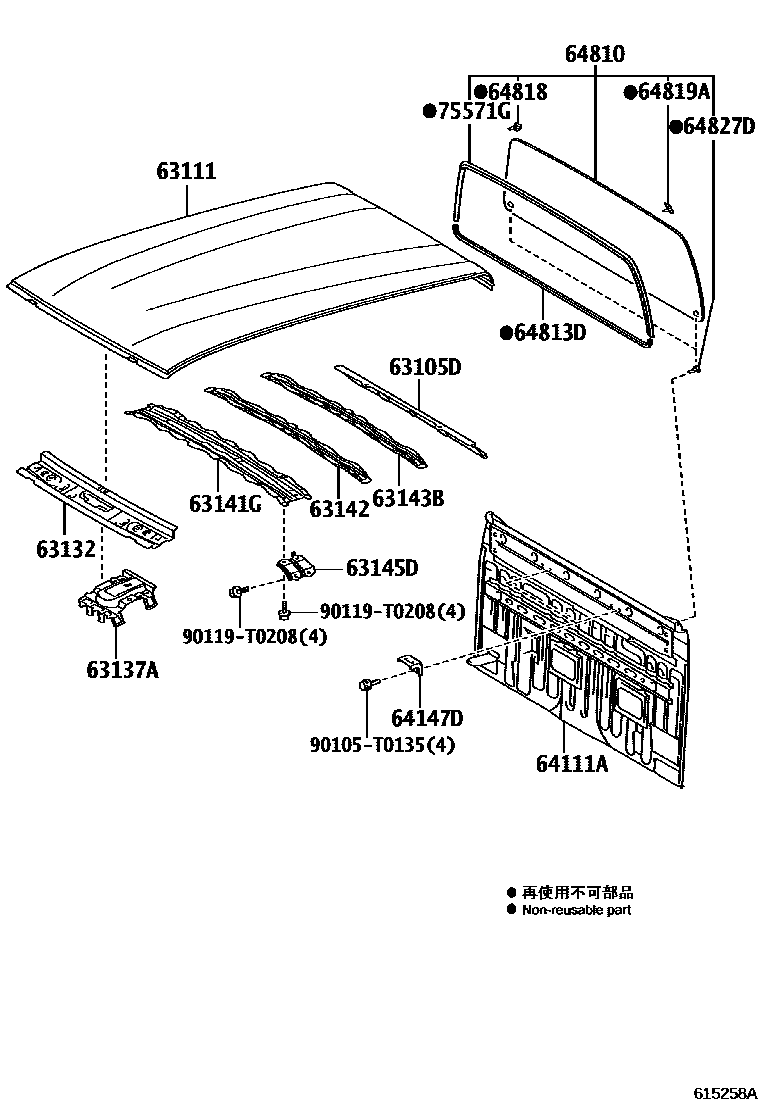

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK040iGUN125,135..SASCB201604-202009

sub63105-KK070

main63135-KK010iGUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S)201506-202009

sub63135-KK050

63111PANEL, ROOF

main63111-KK010iGUN12#,135..SADCB,THDCB201506-202009

main63111-KK020iGUN125,135..SASCB201604-202009

main63111-KK030iGUN135..SAXTR..X201604-202009

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK900iGUN135..SAXTR..X201506-202009

sub63132-KK021

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-KK020iGUN135..SAXTR..X201506-202009

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-KK010iGUN12#,135..SADCB,THDCB201506-202009

main63142-KK030iGUN135..SAXTR..X201604-202009

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-KK010iGUN12#,135..SADCB,THDCB201506-202009

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK010iGUN135..SAXTR..X201506-202009

sub63145-KK030

64111APANEL, BACK

main64101-KK010iGUN12#,135..THDCB201506-201808

sub64101-KK090

main64101-KK030iGUN125,135..SASCB201604-202009

main64101-KK040iGUN135..SAXTR..X201604-202009

main64101-KK050iGUN125,135..SADCB201808-202009

main64101-KK090iGUN12#,135..THDCB201708-202005

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-KK010iGUN12#,135..SADCB,THDCB201506-202009

64810WINDOW ASSY, BACK

main64801-0K110iGUN125,135..THDCB..S201506-201705

sub64801-0K111

main64801-0K111iGUN125,135..THDCB..S201706-202005

main64801-0K130iGUN12#,135..THDCB..(H,M)201506-201702

sub64801-0K131

main64801-0K131iGUN12#,135..THDCB..(H,M)201703-202005

sub64801-0K132

main64801-0K140iGUN135..SAXTR..X201604-202009

sub64801-0K141

main64801-0K160iGUN12#,135..(SADCB,SAXTR)..(H,M)201604-202009

sub64801-0K161

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK040iGUN135..SAXTR..X201506-202009

64818SPACER, BACK WINDOW GLASS

main64818-0K090iGUN12#,135..THDCB201506-202005

main64818-0K100iGUN135..SAXTR..X201604-202009

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110iGUN12#,135..THDCB201506-202005

main64819-0K120iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

64827DCLIP, BACK WINDOW GLASS

main64827-0K110iGUN12#,135..THDCB201506-202005

main64827-0K120iGUN135..SAXTR..X201604-202009

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-0K080iGUN135..SAXTR..X201506-202009

90105T0135

main90105-T0135

90119T0208

main90119-T0208

18 parts on this diagram · 3 diagrams in section
