SIDE WINDOW

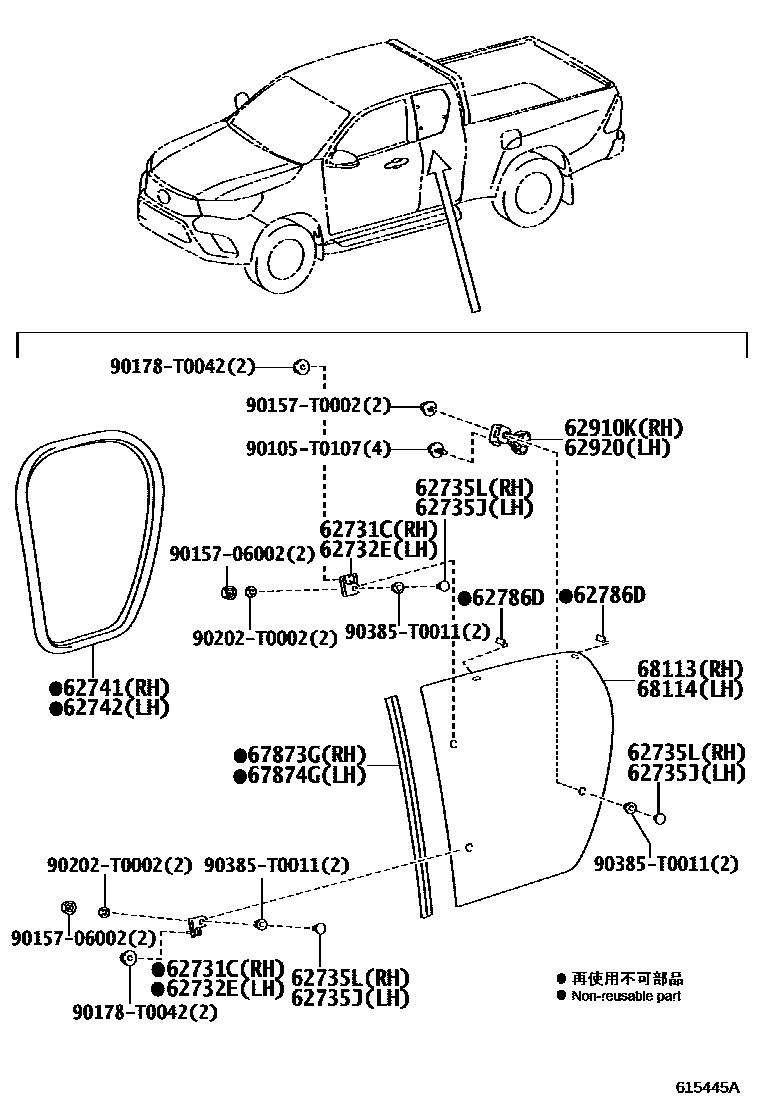

Parts diagram

62731CHINGE, QUARTER WINDOW, RH

main62733-0K010i201604-202009

UPPER

main62733-0K020i201604-202009

LOWER

62732EHINGE, QUARTER WINDOW, LH

main62734-0K010i201604-202009

UPPER

main62734-0K020i201604-202009

LOWER

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-0K040i201710-202009

(L)

main62735-35010i201710-202009

(J)

main62735-35010i201604-201710

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-0K040i201710-202009

(L)

main62735-35010i201710-202009

(J)

main62735-35010i201604-201710

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0K040i201604-202009

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-0K040i201604-202009

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-0K010i201604-202009

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-0K040-B0i201604-202009

LT.GRAY,TRIM2#

main62910-0K040-B0i201906-202009

LT.GRAY,TRIM20

main62910-0K040-C0i201906-202009

BLACK,TRIM21

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-0K040-B0i201604-202009

LT.GRAY,TRIM2#

main62920-0K040-B0i201906-202009

LT.GRAY,TRIM20

main62920-0K040-C0i201906-202009

BLACK,TRIM21

67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH

main67865-0K040i201604-202009

67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH

main67866-0K040i201604-202009

68113GLASS, QUARTER WINDOW, RH

main68113-0K280i201604-202009

main68113-0K290i201604-202009

68114GLASS, QUARTER WINDOW, LH

main68114-0K280i201604-202009

main68114-0K290i201604-202009

90105T0107

main90105-T0107

9015706002

main90157-06002

90157T0002

main90157-T0002

90178T0042

main90178-T0042

90202T0002

main90202-T0002

90385T0011

main90385-T0011

19 parts on this diagram · 1 diagram in section
