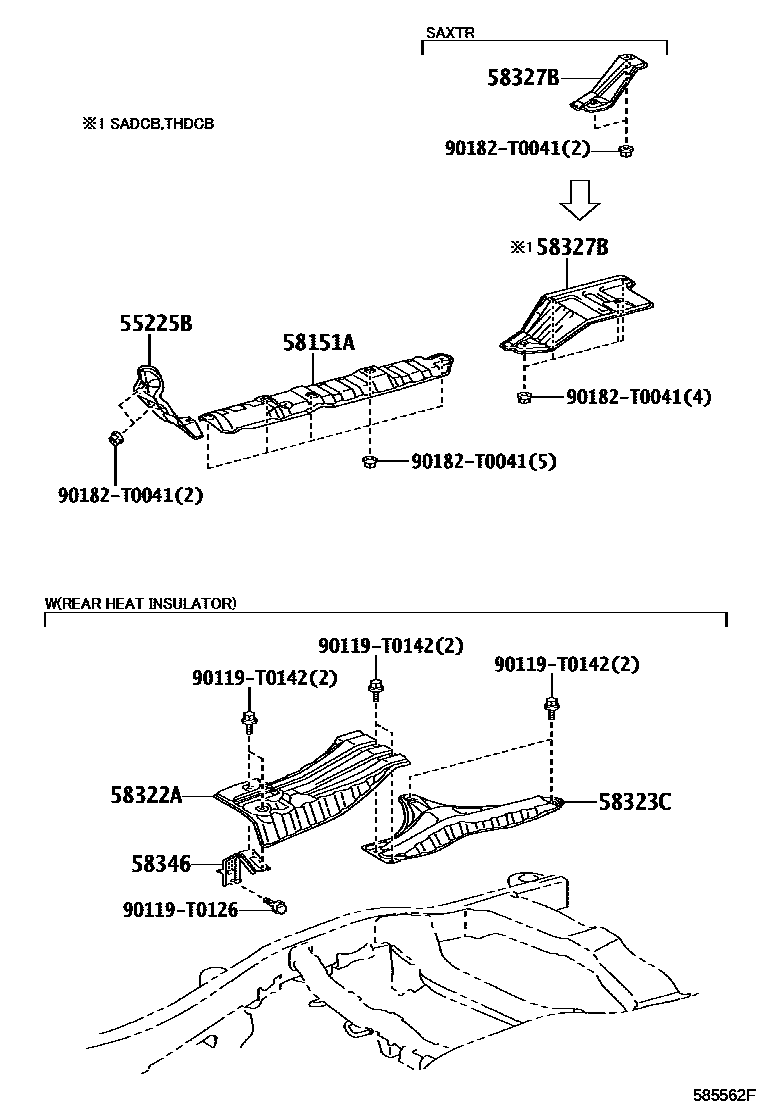

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK010iGUN12#,135201506-201702

sub55225-KK011

main55225-KK011iGUN135..SAXTR..X201703-202009

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK010iGUN12#,135201506-201702

sub58151-KK011

main58151-KK011iGUN135..SAXTR..X201703-201905

sub58151-KK020

main58151-KK020iGUN12#;GUN135..DCRE201905-202009

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK010iGUN12#,135201506-201508

sub58322-KK011

main58322-KK011iGUN135..SAXTR..X201509-202009

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK010iGUN12#,135201506-201509

main58323-KK011iGUN135..SAXTR..X201509-202009

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K011iGUN12#,135..SADCB,THDCB201506-202009

main58327-0K021iGUN135..SAXTR..X201604-202009

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN135..SAXTR..X201506-202009

90119T0126

main90119-T0126

90119T0142

main90119-T0142

90182T0041

main90182-T0041

9 parts on this diagram · 1 diagram in section
