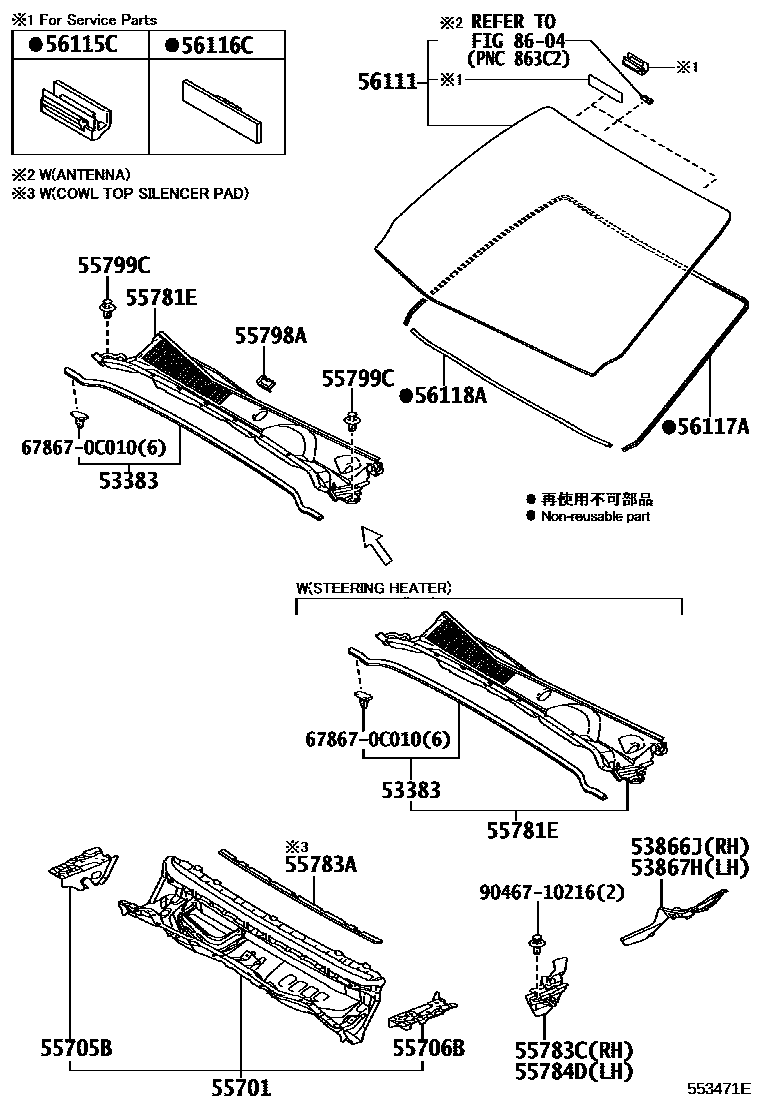

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383SEAL, HOOD TO COWL TOP

main53383-0K120iGUN12#,135..THDCB201506-202005

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0K050iGUN135..SAXTR..X201506-202009

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0K050iGUN135..SAXTR..X201506-202009

55701PANEL SUB-ASSY, COWL

main55700-KK010iGUN125..RHD201604-202009

main55700-KK020iGUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-KK010iGUN135..SAXTR..X201506-202009

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-KK010iGUN135..SAXTR..X201506-202009

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0K180iGUN12#,135..THDCB201506-202005

sub55708-0K181

main55708-0K210iGUN135..SAXTR..X201604-202009

sub55708-0K211

main55708-0K230iGUN125..RHD201604-202009

55783APAD, COWL TOP SILENCER

main55785-0K040iGUN125,135..(SADCB,SAXTR)..(H,M,S)..DCRE201506-202005

main55785-0K120iGUN125,135..(SADCB,SAXTR)..(H,M,S)201911-202009

55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH

main55783-0K100iGUN12#,135..THDCB201506-202005

main55783-0K110iGUN135..SAXTR..X201604-202009

55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH

main55784-0K030iGUN12#,135..THDCB201506-202005

main55784-0K040iGUN135..SAXTR..X201604-202009

55798ASUPPORT, COWL WATER EXTRACT SEAL

main55798-0K010iGUN135..SAXTR..X201506-202009

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07215iGUN135..SAXTR..X201506-202009

56111GLASS, WINDSHIELD

main56101-0K330iGUN125,135..THDCB..S201506-201707

sub56101-0K331

main56101-0K331iGUN125,135..THDCB..S..HDCR201708-202005

main56101-0K340iGUN12#,135..THDCB..(H,M)201506-201707

sub56101-0K341

main56101-0K341iGUN12#,135..THDCB..(H,M)201708-201712

sub56101-0K342

main56101-0K342iGUN135..THDCB..M;GUN125..THDCB..6FC..(H,M)201801-202005

main56101-0K342iGUN125..6FC..HDCR201905-202005

ACTIVE SAFETY PACKAGE-WITHOUT

main56101-0K370iGUN125..RHD..S201604-201905

main56101-0K390iGUN135..SAXTR..X201604-201905

main56101-0K400iGUN126..SADCB201604-201807

main56101-0K580iGUN125..RHD..(H,M)201604-201611

TYPE A:REFER ILLUST.

main56101-0K581iGUN125..RHD..(H,M)201611-201905

TYPE B:REFER ILLUST.

main56101-0K600iGUN125,135..LHD..(SADCB,SAXTR)..(H,M)201604-201611

TYPE A:REFER ILLUST.

main56101-0K601iGUN125,135..LHD..(SADCB,SAXTR)..(H,M)201611-201905

TYPE B:REFER ILLUST.

main56101-0KA40iGUN135..THDCB..M;GUN125..THDCB..6FC..(H,M)201806-201905

PRE-COLLISION SYSTEM-WITH

main56101-0KL60iGUN125,135..THDCB..(H,M)..DCRE201905-202005

main56101-0KM40iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..(S,X)..DCRE201906-202009

main56101-0KM70iGUN125,135..LHD..(SADCB,SAXTR)..(H,M)201906-202009

main56101-0KM90iGUN125..RHD..S201906-202009

main56101-0KN20iGUN125..RHD..(H,M)201906-202009

main56101-0KN40iGUN125,135..THDCB..S..DCRE201905-202005

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iGUN125,135..THDCB..S201506-202009

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGUN126;GUN135..THDCB..M;GUN135..SADCB,SASCB;GUN125..THDCB..DCRE;GUN135..SAXTR..S..HDCR;GUN125..SADCB,SASCB,SAXTR;GUN125..THDCB..(H,M)..HDCR;GUN135..(SAXTR,THDCB)..(201506-202009

56117ADAM, WINDOW GLASS ADHESIVE

main56117-KK060iGUN135..SAXTR..X201506-202009

L=2620

main56117-KK060iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

L=2620,AUDIO-*DA & CD & *BT & RDS & DAB

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-KK030iGUN135..SAXTR..X201506-202009

L=1248

main56117-KK030iGUN12#,135..H,M201506-202009

L=1248,AUDIO-*DA & CD & *BT & RDS & DAB

8604

678670C010CLIP, DOOR WEATHERSTRIP

main67867-0C010

9046710216

main90467-10216

20 parts on this diagram · 3 diagrams in section
