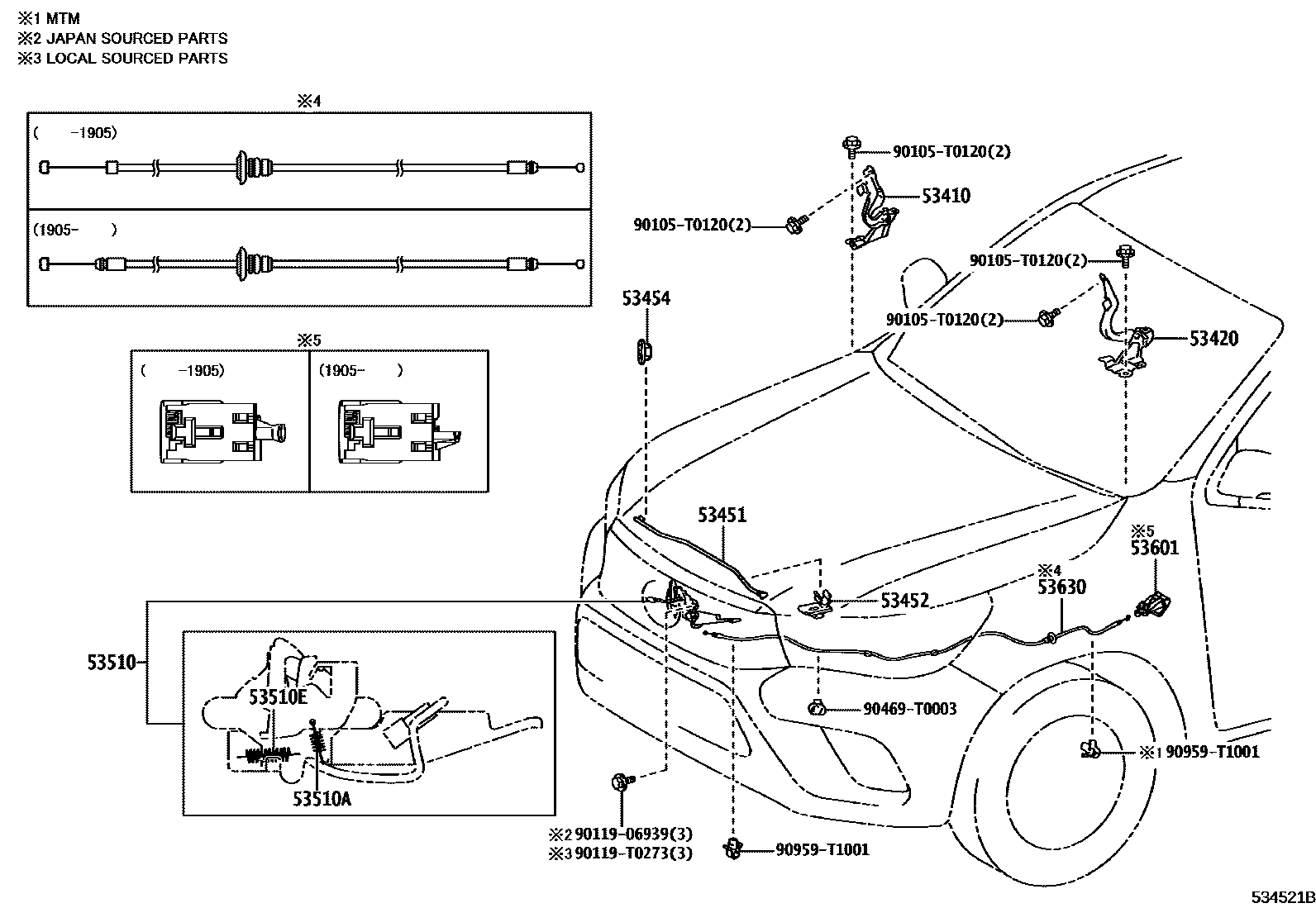

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0K230iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

main53410-0K370iGUN12#,135..THDCB201506-202005

53420HINGE ASSY, HOOD, LH

main53420-0K230iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

main53420-0K370iGUN12#,135..THDCB201506-202005

53451ROD, HOOD SUPPORT

main53440-0K010iGUN12#,135..THDCB201506-202005

main53440-0K020iGUN135..SAXTR..X201604-202009

53452HOLDER, HOOD STAY

main53452-0K020iGUN135..SAXTR..X201506-202009

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iGUN12#,135..THDCB201604-202005

main53454-52020iGUN135..SAXTR..X201506-202009

53510LOCK ASSY, HOOD

main53510-0K380iGUN12#,135..THDCB201506-202005

main53510-0K480iGUN125..RHD201604-202009

main53510-0K820iGUN135..SAXTR..X201604-202009

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iGUN135..SAXTR..X201506-202009

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iGUN135..SAXTR..X201506-202009

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C0iGUN12#,135..THDCB201905-202005

BLACK,TRIM2#

main53601-0K080-C0iGUN125,135..THDCB..S201506-201905

BLACK,TRIM2#,3#

main53601-0K080-C0iGUN12#,135..THDCB..(H,M)201506-201905

BLACK,TRIM2#

main53601-0K090-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main53601-0K090-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#

main53601-0K120-C0iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE201906-202009

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K160iGUN125..RHD201604-201905

main53630-0K190iGUN12#..LHD;GUN135..SAXTR..S;GUN135..SADCB,SASCB,THDCB201506-201905

main53630-0K210iGUN125..RHD201906-202009

main53630-0K260iGUN12#..LHD;GUN135..DCRE201905-202009

90105T0120

main90105-T0120

9011906939

main90119-06939

90119T0273

main90119-T0273

90469T0003

main90469-T0003

90959T1001

main90959-T1001

15 parts on this diagram · 2 diagrams in section
