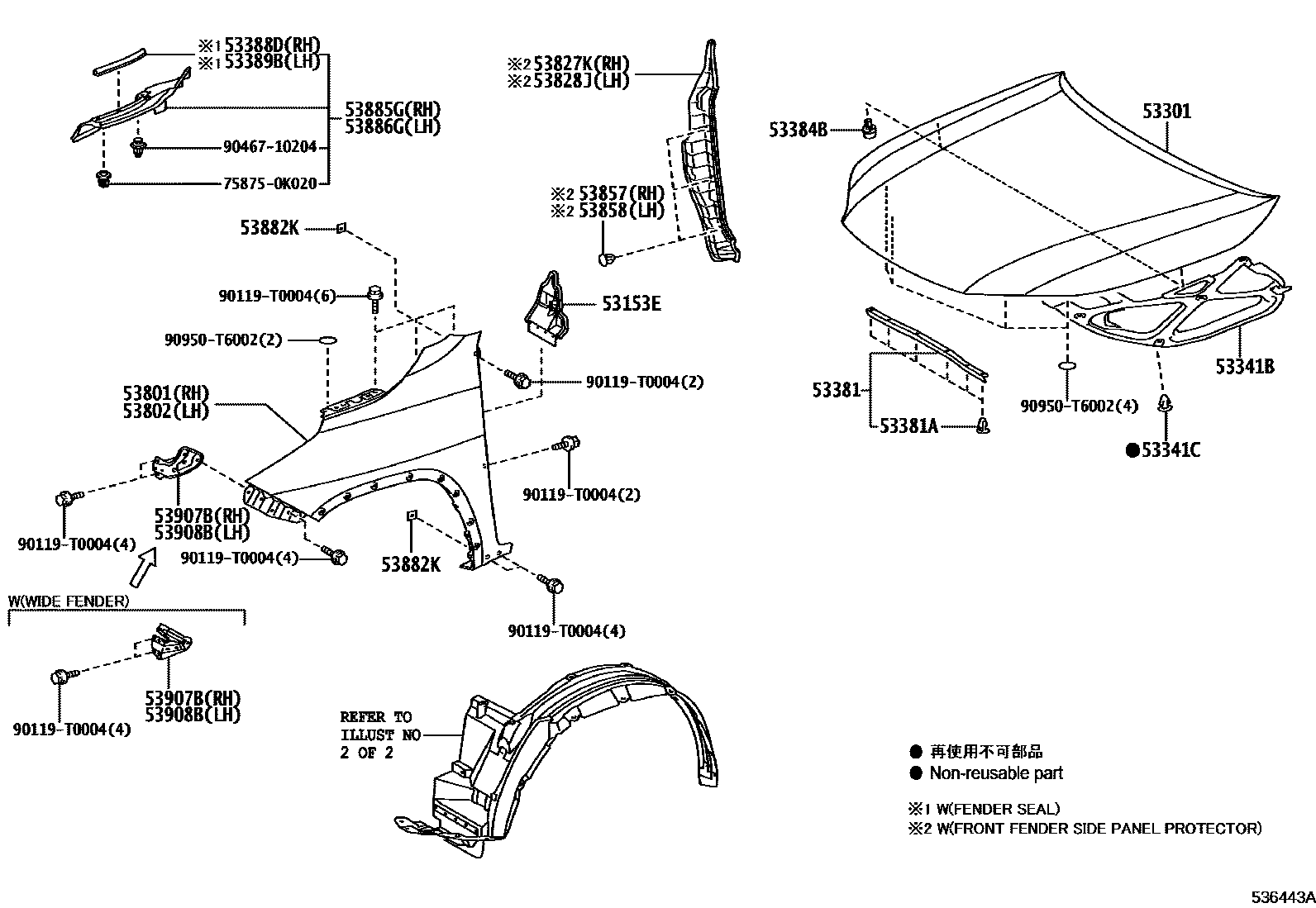

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153EGUIDE, FRONT SIDE AIR

main53153-0K010iGUN12#,135..THDCB201506-202005

main53153-0K020iGUN135..SAXTR..X201604-202009

main53153-0K100iGUN125,135..SASCB201604-202009

53301HOOD SUB-ASSY

main53301-KK010iGUN12#,135201506-201709

sub53301-KK011

main53301-KK011iGUN135..SAXTR..X201709-202009

53341BINSULATOR, HOOD

main53341-0K250iGUN12#,135..THDCB201506-202005

sub53341-0K251

main53341-0K270iGUN135..SAXTR..X201604-202009

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iGUN135..SAXTR..X201506-202009

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K080iGUN135..SAXTR..X201506-202005

main53381-0K120iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE201911-202009

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iGUN135..SAXTR..X201506-202009

53384BCUSHION, HOOD, CENTER

main53384-0K040iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0K010iGUN12#,135..THDCB..(H,M)201506-202005

main53388-0K020iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..SADCB..(H,M)201604-202009

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0K010iGUN12#,135..THDCB..(H,M)201506-202005

main53388-0K020iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..SADCB..(H,M)201604-202009

53801FENDER SUB-ASSY, FRONT RH

main53811-KK010iGUN125,135..SASCB201604-202009

main53811-KK030iGUN135..SAXTR..X201506-202009

53802FENDER SUB-ASSY, FRONT LH

main53812-KK010iGUN125,135..SASCB201604-202009

main53812-KK030iGUN135..SAXTR..X201506-202009

sub53812-KK050

main53812-KK050iGUN12#,135..THDCB201701-202005

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K010iGUN12#,135..THDCB..(H,M)201506-202005

main53827-0K020iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..SADCB..(H,M)201604-202009

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K010iGUN12#,135..THDCB..(H,M)201506-202005

main53828-0K020iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..SADCB..(H,M)201604-202009

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06030iGUN12#,135..THDCB..(H,M)201908-202005

(L)

main53857-0K010iGUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M)202001-202009

main53857-47011iGUN12#,135..THDCB..(H,M)201908-202005

(J)

main53857-47011iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..(SADCB,THDCB)..(H,M)201506-201908

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06030iGUN12#,135..THDCB..(H,M)201908-202005

(L)

main53857-0K010iGUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M)202001-202009

main53857-47011iGUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M)201908-202005

(J)

main53857-47011iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..(SADCB,THDCB)..(H,M)201506-201908

53882KSEAL, FRONT FENDER

main53882-33060iGUN135..SAXTR..X201506-202009

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0K100iGUN12#,135..THDCB..(H,M)201506-202005

main53807-0K110iGUN125,135..THDCB..S201506-202005

main53807-0K120iGUN135..SAXTR..X201604-202009

main53807-0K130iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..SADCB..(H,M)201604-202009

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-0K100iGUN12#,135..THDCB..(H,M)201506-202005

main53808-0K110iGUN125,135..THDCB..S201506-202005

main53808-0K120iGUN135..SAXTR..X201604-202009

main53808-0K130iGUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..SADCB..(H,M)201604-202009

53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH

main53907-KK010iGUN125,135..SASCB201604-202009

main53907-KK020iGUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S)201506-202009

53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH

main53908-KK010iGUN125,135..SASCB201604-202009

main53908-KK020iGUN135..SAXTR..X201506-202009

758750K020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-0K020

90119T0004

main90119-T0004

9046710204

main90467-10204

90950T6002

main90950-T6002

24 parts on this diagram · 2 diagrams in section
