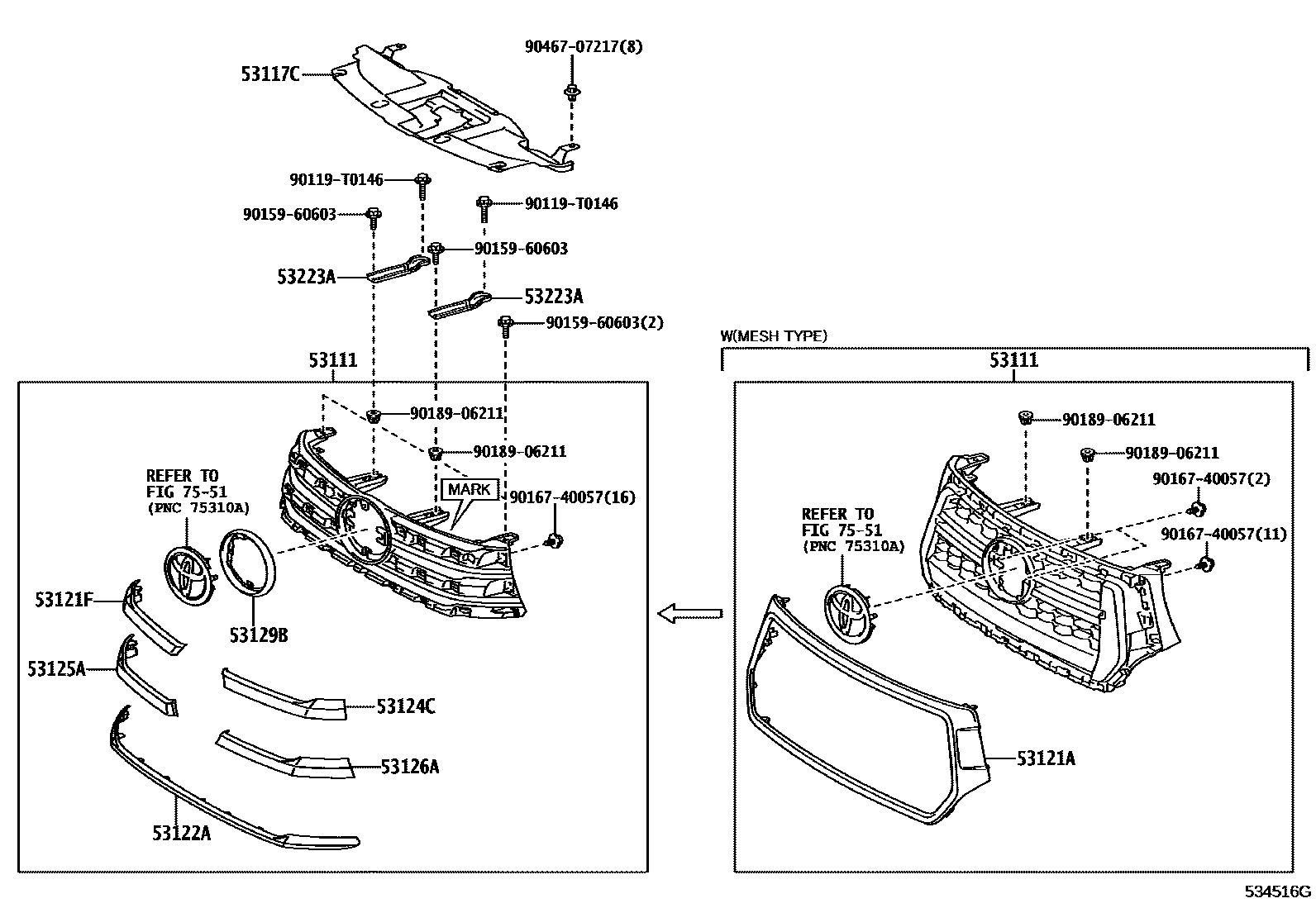

RADIATOR GRILLE

0001 1W/O(PRE-COLLISION SYSTEM) 0002 1W(PRE-COLLISION SYSTEM)

53111GRILLE, RADIATOR

main53100-0K460iGUN125..S..HDCR201905-202005

main53100-0K470iGUN125,135..THDCB..S201506-201905

NO PAINT REQ.

main53100-0K500iGUN126..THDCB201506-201905

PLATED

main53100-0K500iGUN126..THDCB201506-201806

PLATED,TURKEY SPEC(EURO 5 REGULATION)

main53100-0K901iGUN125,135..(SADCB,SAXTR)..(H,M)201604-201905

PLATED

main53100-0K905iGUN125..THDCB..6F..M201806-201905

PLATED

main53100-0K905iGUN135..THDCB..M;GUN125..THDCB..6FC..(H,M)201806-201905

PLATED,PRE-COLLISION SYSTEM-WITH

main53100-0K906iGUN125,135..THDCB..S..DCRE201905-202005

main53100-0K909iGUN125,135..THDCB..(H,M)..DCRE201905-202005

main53100-0K911iGUN125,135..(SADCB,SASCB,SAXTR)..(S,X)..DCRE201906-202009

main53100-0K912iGUN125,135..(SADCB,SAXTR)..(H,M)201906-202009

main53100-0KA70iGUN135..SAXTR..X201604-201905

NO PAINT REQ.

main53100-0KB20iGUN125..(H,M)..HDCR201506-202005

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-0K040iGUN12#,135..THDCB201506-202005

main53117-0K050iGUN135..SAXTR..X201604-202009

53121AMOULDING, RADIATOR GRILLE

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53125-0K070iGUN125,135..THDCB..(H,M)..DCRE201911-202005

MARK=53100-0K500

main53125-0K070iGUN125..THDCB..(H,M)201506-201911

main53125-0K070iGUN125,135..THDCB..(H,M)..DCRE201911-202005

ACTIVE SAFETY PACKAGE-WITHOUT

main53125-0K080iGUN125,135..(SADCB,SAXTR)..(H,M)201906-202009

MARK=53100-0KB30

main53125-0K080iGUN125,135..(SADCB,SAXTR)..(H,M)201604-201905

PRE-COLLISION SYSTEM-WITHOUT,MARK=53100-0KB30

main53125-0K210iGUN125,135..THDCB..S201506-202005

main53125-0K220iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

main53125-0K240iGUN126201506-202005

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-0K260iGUN125,135..THDCB..M..DCRE201911-202005

ACTIVE SAFETY PACKAGE-WITHOUT

main53122-0K260iGUN125,135..THDCB..M..DCRE201911-202005

MARK=53100-0K500

main53122-0K260iGUN125..THDCB..(H,M)201506-201911

main53122-0K270iGUN125,135..(SADCB,SAXTR)..(H,M)201906-202009

MARK=53100-0KB30

main53122-0K270iGUN125,135..(SADCB,SAXTR)..(H,M)201604-201905

PRE-COLLISION SYSTEM-WITHOUT,MARK=53100-0KB30

main53122-0K410iGUN125,135..THDCB..S201506-202005

main53122-0K420iGUN135..SAXTR..X201604-202009

main53122-0K440iGUN125..(H,M)..HDCR201506-202005

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53126-0K070iGUN125..THDCB..(H,M)201506-201911

main53126-0K070iGUN125,135..THDCB..(H,M)..DCRE201911-202005

MARK=53100-0K500

main53126-0K070iGUN125,135..THDCB..(H,M)..DCRE201911-202005

ACTIVE SAFETY PACKAGE-WITHOUT

main53126-0K080iGUN125,135..(SADCB,SAXTR)..(H,M)201906-202009

MARK=53100-0KB30

main53126-0K080iGUN125,135..(SADCB,SAXTR)..(H,M)201604-201905

PRE-COLLISION SYSTEM-WITHOUT,MARK=53100-0KB30

main53126-0K210iGUN125,135..THDCB..S201506-202005

main53126-0K220iGUN135..SAXTR..X201604-202009

main53126-0K240iGUN126201506-202005

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53123-0K090iGUN125,135..THDCB..M..DCRE201911-202005

ACTIVE SAFETY PACKAGE-WITHOUT

main53123-0K090iGUN125,135..THDCB..(H,M)..DCRE201911-202005

MARK=53100-0K500

main53123-0K090iGUN125..THDCB..(H,M)201506-201911

main53123-0K100iGUN125,135..(SADCB,SAXTR)..(H,M)201906-202009

MARK=53100-0KB30

main53123-0K100iGUN125,135..(SADCB,SAXTR)..(H,M)201604-201905

PRE-COLLISION SYSTEM-WITHOUT,MARK=53100-0KB30

main53123-0K240iGUN125,135..THDCB..S201506-202005

main53123-0K250iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

main53123-0K270iGUN125..(H,M)..HDCR201506-202005

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53124-0K090iGUN125..THDCB..(H,M)201506-201911

main53124-0K090iGUN125,135..THDCB..(H,M)..DCRE201911-202005

MARK=53100-0K500

main53124-0K090iGUN125,135..THDCB..(H,M)..DCRE201911-202005

ACTIVE SAFETY PACKAGE-WITHOUT

main53124-0K100iGUN125,135..(SADCB,SAXTR)..(H,M)201906-202009

MARK=53100-0KB30

main53124-0K100iGUN125,135..(SADCB,SAXTR)..(H,M)201604-201905

PRE-COLLISION SYSTEM-WITHOUT,MARK=53100-0KB30

main53124-0K240iGUN125,135..THDCB..S201506-202005

main53124-0K250iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

main53124-0K270iGUN126201506-202005

53129BMOULDING, RADIATOR GRILLE, NO.9

main53127-0K070iGUN125..THDCB..6F..M201506-201905

main53127-0K070iGUN126..THDCB201506-201806

TURKEY SPEC(EURO 5 REGULATION)

main53127-0K090iGUN126201506-202005

main53127-0K110iGUN125,135..THDCB..S..HDCR201506-202005

main53127-0K120iGUN135..SAXTR..X201604-201905

53223ABRACKET, RADIATOR GRILLE MOUNTING

main53115-0K080iGUN12#,135..THDCB201506-202005

main53115-0K090iGUN135..SAXTR..X201604-202009

7551

90119T0146

main90119-T0146

9015960603

main90159-60603

9016740057

main90167-40057

9018906211

main90189-06211

9046707217

main90467-07217

16 parts on this diagram · 2 diagrams in section
