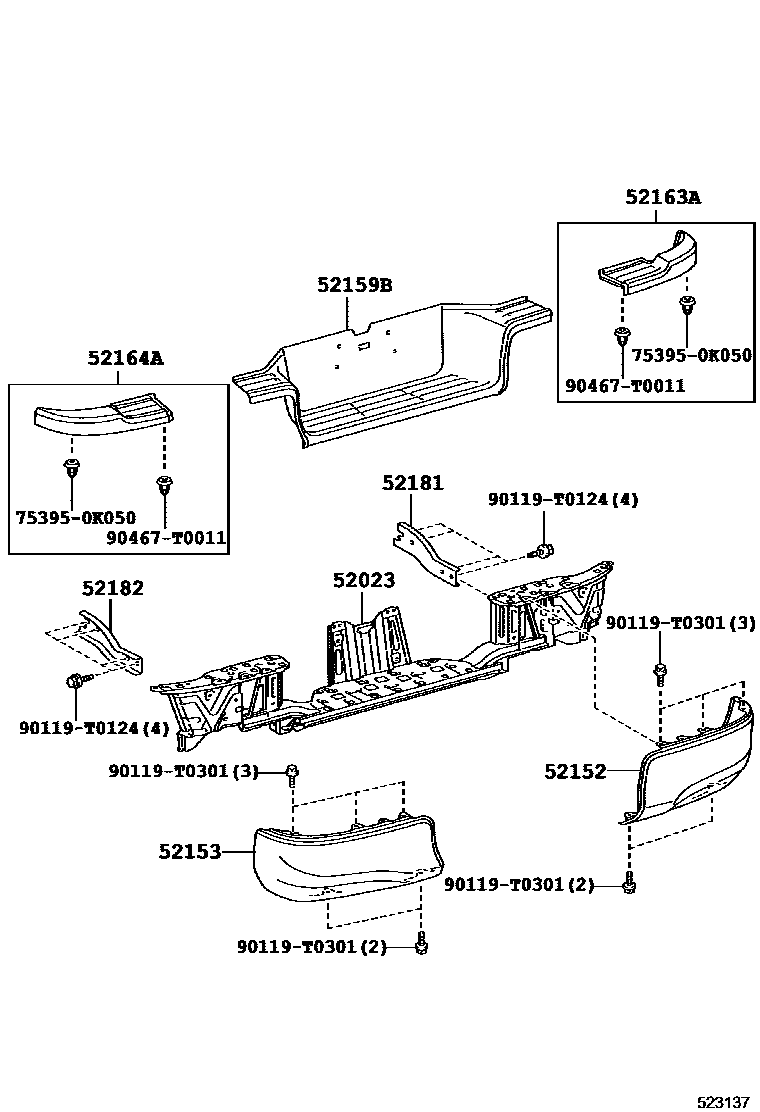

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0K040iGUN126..THDCB;GUN125..THDCB..6F..S201506-201906

sub52023-0K041

main52023-0K041iGUN12#,135..THDCB201906-202005

main52023-0K060iGUN135..SAXTR..X201604-201905

sub52023-0K061

main52023-0K061iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE..CBU201906-202009

52152BAR, REAR BUMPER, RH

main52151-0K060iGUN125,135..THDCB..S201506-202005

main52151-0K070iGUN125..THDCB..(H,M)201506-202009

main52151-0K090iGUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X)..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)..CBU201604-202009

main52151-0K100iGUN126201506-202005

52153BAR, REAR BUMPER, LH

main52152-0K060iGUN125,135..THDCB..S201506-202005

main52152-0K070iGUN135..M;GUN125..(H,M)..DCRE;GUN125..(SADCB,SAXTR)..(H,M)..HDCR201506-202009

main52152-0K090iGUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X)..CBU;GUN125..(SADCB,SASCB,SAXTR)..(S,X)..CBU201604-202009

main52152-0K100iGUN125..(H,M)..HDCR201506-202005

52159BPLATE, REAR BUMPER

main52159-0K290iGUN125,135..THDCB..S..DCRE;GUN125..THDCB..6F..S..HDCR201506-202005

sub52159-0K291

main52159-0K300iGUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..CBU;GUN12#..(SADCB,SASCB,SAXTR)..CBU201604-201905

sub52159-0K301

main52159-0K301iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE..CBU201906-202009

52163APLATE, REAR BUMPER, RH

main52163-0K030iGUN12#,135..THDCB201506-202005

main52163-0K040iGUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..CBU;GUN12#..(SADCB,SASCB,SAXTR)..CBU201604-202009

52164APLATE, REAR BUMPER, LH

main52164-0K030iGUN12#,135..THDCB201506-202005

main52164-0K040iGUN135..SAXTR..X201604-202009

52181ARM, REAR BUMPER, RH

main52181-0K060iGUN12#,135..THDCB201506-202005

main52181-0K070iGUN135..SAXTR..X201604-202009

52182ARM, REAR BUMPER, LH

main52182-0K060iGUN12#,135..THDCB201506-202005

main52182-0K070iGUN135..SAXTR..X201604-202009

753950K050CLIP, BACK DOOR MOULDING, NO.1

main75395-0K050

90119T0124

main90119-T0124

90119T0301

main90119-T0301

90467T0011

main90467-T0011

12 parts on this diagram · 1 diagram in section
