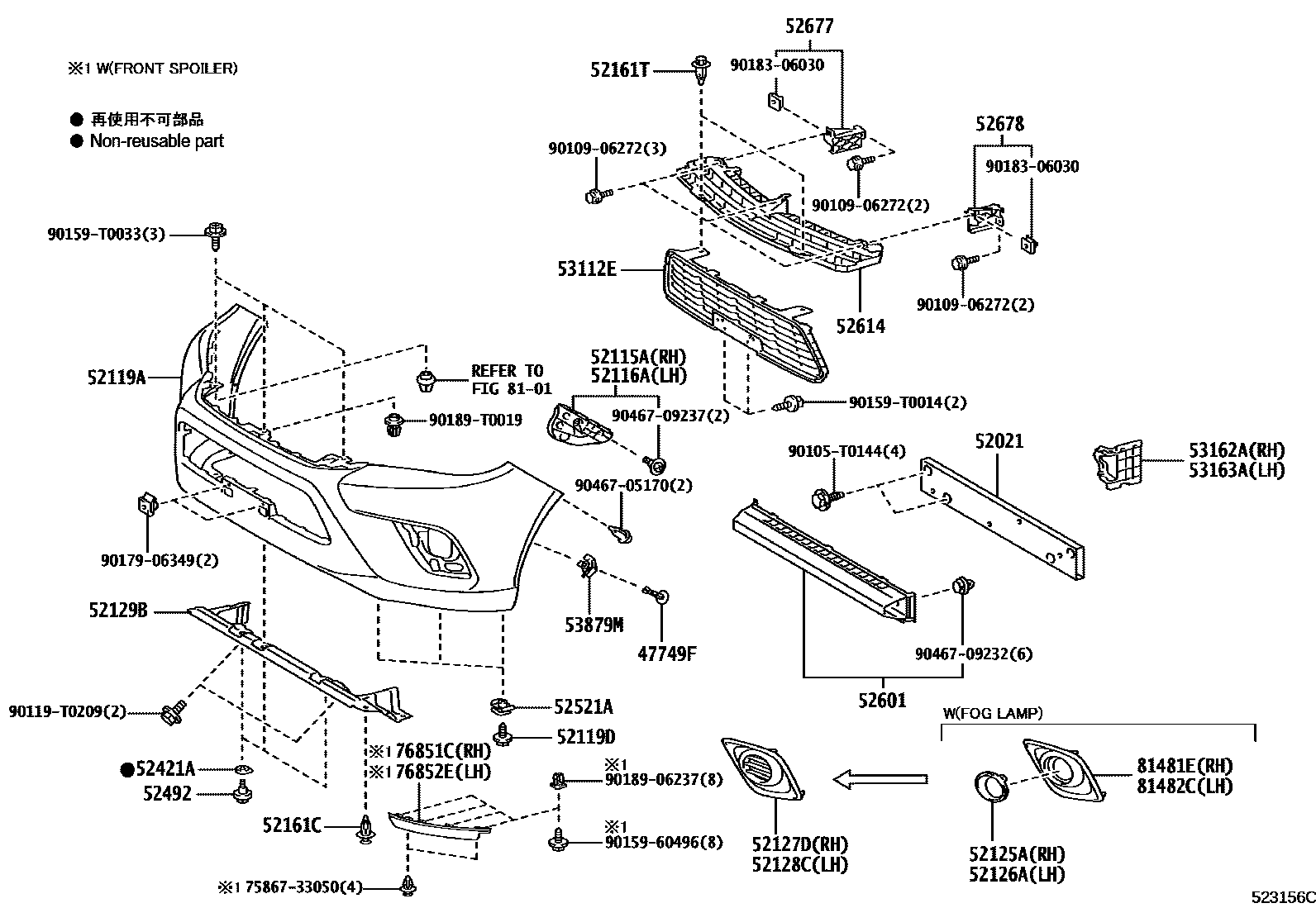

FRONT BUMPER & BUMPER STAY

0001 1 0002 1PREMIUM PACKAGE

47749FCLIP, PIN HOLD

main47749-50090iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-KK010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0K120iGUN125,135..SASCB201604-202009

main52115-0K180iGUN12#,135..THDCB201506-202005

main52115-0K190iGUN135..SAXTR..X201604-201807

main52115-0K190iGUN12#..SADCB,SAXTR;GUN135..SAXTR..DCRE..IV3;GUN135..(SADCB,SAXTR)..(M,S)201604-202009

TIRE & DISC WHEEL-265/65R17 STEEL

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0K120iGUN125,135..SASCB201604-202009

main52116-0K180iGUN12#,135..THDCB201506-202005

main52116-0K190iGUN12#..SADCB,SAXTR;GUN135..SAXTR..DCRE..IV3;GUN135..(SADCB,SAXTR)..(M,S)201604-202009

TIRE & DISC WHEEL-265/65R17 STEEL

main52116-0K190iGUN135..SAXTR..X201604-201807

52119ACOVER, FRONT BUMPER

main52119-0K840iGUN125,135..THDCB..S201506-202005

main52119-0K860iGUN125,135..SASCB201604-202009

main52119-0M943iGUN12#,135..(SADCB,SAXTR)..(H,M)201604-201710

PAINT REQ.

sub52119-0M975

main52119-0M950iGUN12#,135..THDCB..(H,M)201506-201708

PAINT REQ.

sub52119-0M974

main52119-0M966iGUN125..RHD..SASCB201604-202009

TIRE & DISC WHEEL-265/65R17 STEEL

main52119-0M966iGUN135..SAXTR..X201604-201807

PAINT REQ.

main52119-0M974iGUN12#,135..THDCB..(H,M)201708-202005

main52119-0M975iGUN12#,135..(SADCB,SAXTR)..(H,M)201710-202009

52119DSCREW, NO.1

main90159-60217iGUN135..SAXTR..X201506-202009

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-0K060iGUN135..THDCB..M;GUN125..THDCB..(H,M)..DCRE201506-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52125-0K060iGUN125..THDCB..(H,M)201506-202005

FRONT FOG LAMP-WITH

main52125-0K070iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52125-0K070iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT FOG LAMP-WITH

main52125-0K080iGUN125..S..HDCR201905-202005

FRONT FOG LAMP-WITH

main52125-0K080iGUN126201506-202005

main52125-0K080iGUN125..(H,M)..HDCR201905-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-0K060iGUN125..THDCB..(H,M)201506-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52126-0K060iGUN125..THDCB..(H,M)201506-202005

FRONT FOG LAMP-WITH

main52126-0K070iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52126-0K070iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT FOG LAMP-WITH

main52126-0K080iGUN125..S..HDCR201905-202005

FRONT FOG LAMP-WITH

main52126-0K080iGUN126201506-202005

main52126-0K080iGUN125..S..HDCR201905-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0K200iGUN125,135..THDCB..S201506-202005

main52127-0K210iGUN135..SAXTR..X201604-202009

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-0K200iGUN125,135..THDCB..S201506-202005

main52128-0K210iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

52129BCOVER, FRONT BUMPER, LOWER

main52129-KK010iGUN135..SAXTR..X201506-202009

52161CPIECE, FRONT BUMPER

main52161-0K050iGUN135..SAXTR..X201506-202009

52161TPIECE, FRONT BUMPER

main52161-0K040iGUN135..SAXTR..X201506-202009

52421APAD, FRONT BUMPER

main52421-60191iGUN135..SAXTR..X201506-202009

52492BOLT, BUMPER PAD, NO.2

main52491-60010iGUN135..SAXTR..X201506-202009

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05114iGUN135..SAXTR..X201506-202009

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-0K010iGUN12#,135..THDCB201506-202005

main52601-0K050iGUN135..SAXTR..X201604-202009

sub52601-0K100

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0K010iGUN12#,135..THDCB201506-202005

main52614-0K020iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52675-0K010iGUN12#,135..THDCB201506-202005

main52675-0K020iGUN135..SAXTR..X201604-202009

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52676-0K010iGUN12#,135..THDCB201506-202005

main52676-0K020iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0K120iGUN12#,135..THDCB201506-202005

main53112-0K130iGUN135..SAXTR..X201604-201807

NO PAINT REQ.

main53112-0K130iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

53162ADEFLECTOR, FRONT BUMPER STONE, RH

main53162-KK010iGUN135..SAXTR..X201506-202009

53163ADEFLECTOR, FRONT BUMPER STONE, LH

main53163-KK010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

53879MRETAINER, FRONT FENDER LINER

main53879-50020iGUN135..SAXTR..X201506-202009

76851CFRONT SPOILER

76852ESPOILER, FRONT, LH

8101

81481ECOVER, FOG LAMP, RH

main52127-0K170iGUN126;GUN125,135..THDCB..(H,M)201506-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52127-0K170iGUN126;GUN125,135..THDCB..(H,M)201506-202005

FRONT FOG LAMP-WITH

main52127-0K180iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52127-0K180iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT FOG LAMP-WITH

81482CCOVER, FOG LAMP, LH

main52128-0K170iGUN126;GUN125,135..THDCB..(H,M)201506-202005

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52128-0K170iGUN126;GUN125,135..THDCB..(H,M)201506-202005

FRONT FOG LAMP-WITH

main52128-0K180iGUN125,135..(SADCB,SAXTR)..(H,M)201604-202009

FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH

main52128-0K180iGUN125..SADCB..S;GUN135..(SADCB,SAXTR)..S..CBU201604-202009

FRONT FOG LAMP-WITH

7586733050MOULDING, FRONT PANEL

main75867-33050

90105T0144

main90105-T0144

9010906272

main90109-06272

90119T0209

main90119-T0209

9015960496

main90159-60496

90159T0014

main90159-T0014

90159T0033

main90159-T0033

9017906349

main90179-06349

9018306030

main90183-06030

9018906237

main90189-06237

90189T0019

main90189-T0019

9046705170

main90467-05170

9046709232

main90467-09232

9046709237

main90467-09237

43 parts on this diagram · 2 diagrams in section
