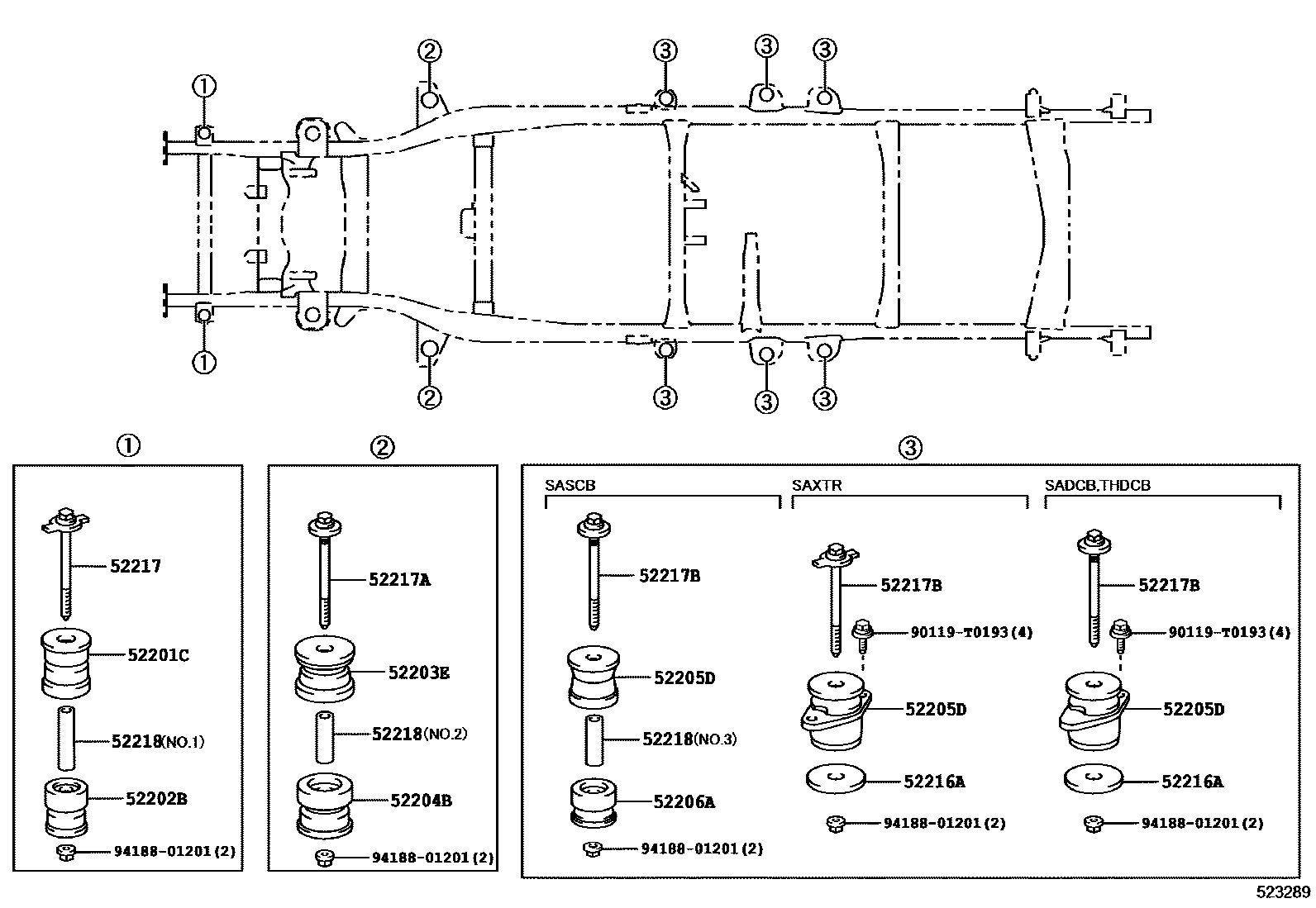

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K100iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K100iGUN135..SAXTR..X201506-202009

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120iGUN135..SAXTR..X201506-202009

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K110iGUN125,135..SASCB201604-202009

main52205-0K150iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202009

main52205-0K160iGUN12#,135201506-201509

RH

sub52205-0K161

main52205-0K161iGUN12#,135..SADCB,THDCB201510-202009

RH

main52206-0K100iGUN12#,135201506-201509

LH

sub52206-0K101

main52206-0K101iGUN12#,135..SADCB,THDCB201510-202009

LH

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K080iGUN125,135..SASCB201604-202009

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iGUN135..SAXTR..X201506-202009

52217BOLT, BODY MOUNTING

main52217-0K010iGUN135..SAXTR..X201506-202009

52217ABOLT, BODY MOUNTING

main52217-0K020iGUN135..SAXTR..X201506-202009

52217BBOLT, BODY MOUNTING

main52217-0K020iGUN12#,135..SADCB,SASCB,THDCB201506-202009

main52217-0K031iGUN125..SAXTR;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU201604-202009

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

NO.1

main52219-0K010iGUN135..SAXTR..X201506-202009

NO.2

main52219-0K010iGUN125,135..SASCB201604-202009

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
