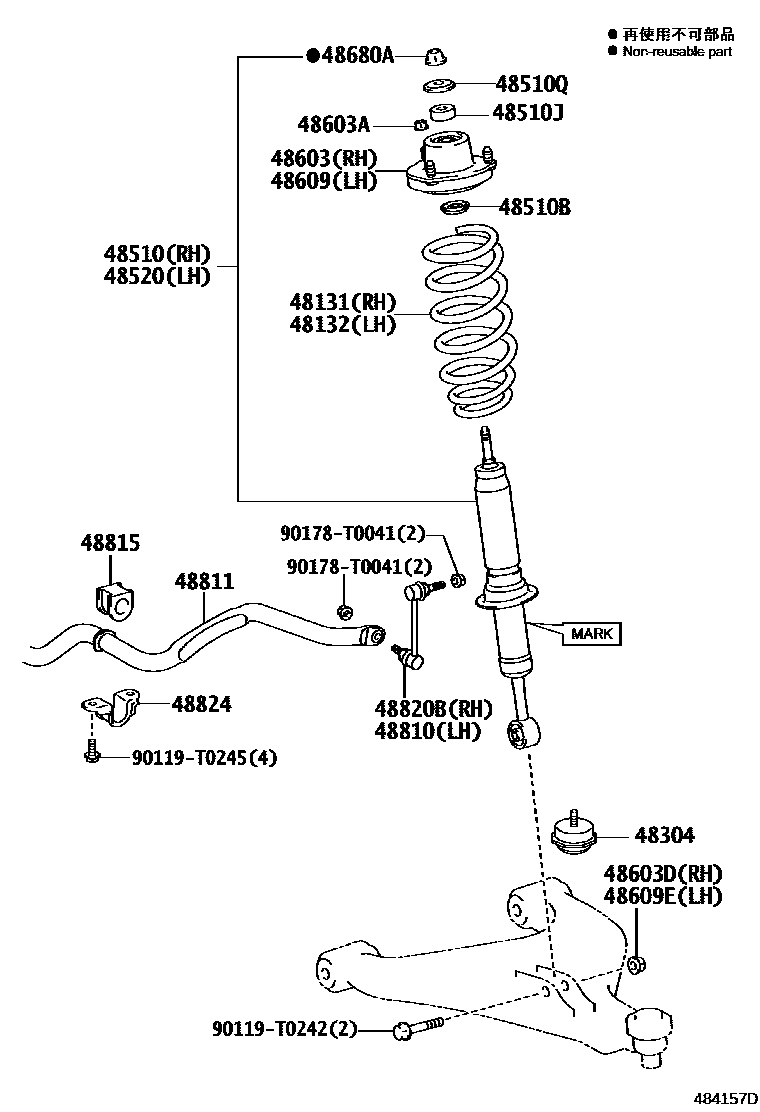

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KG40iGUN135..THDCB201506-201904

main48131-0KL40iGUN12#..THDCB;GUN135..THDCB..DCRE201506-202005

main48131-0KM30iGUN135..SASCB201604-201610

main48131-0KM50iGUN135..SASCB..X..HDCR;GUN135..SASCB..HDCR..IV3201604-202009

main48131-0KM70iGUN125..SASCB;GUN135..SADCB..DCRE;GUN12#..LHD..(SADCB,SAXTR)201604-202009

main48131-0KM80iGUN125..RHD..(SADCB,SAXTR)201604-202009

48132SPRING, FRONT COIL, LH

main48131-0KL30iGUN135..THDCB201506-201904

main48131-0KL50iGUN12#..THDCB;GUN135..THDCB..DCRE201506-202005

main48131-0KM40iGUN135..SASCB201604-201610

main48131-0KM60iGUN135..SAXTR..X201604-202009

main48131-0KM70iGUN125..RHD..SASCB201604-202009

main48131-0KM80iGUN125..LHD..SASCB;GUN12#..SADCB,SAXTR;GUN135..SADCB..DCRE201604-202009

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K040iGUN12#,135201506-201702

main48304-0K041iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201703-202009

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z205iGUN12#,135..THDCB201506-202005

MARK 48510-0KC40

main48510-8Z207iGUN135..SAXTR..X201604-202009

MARK 48510-0KD40

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-F2002iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE201906-202009

main90948-T2003iGUN135..SAXTR..X201506-202005

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013iGUN12#,135..THDCB201506-202005

main90948-T1013iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR201807-202009

MADE IN THAILAND

main90948-T1015iGUN12#,135..SADCB,SASCB,SAXTR201604-201807

main90948-T1015iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR201807-202009

MADE IN INDIA

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-F2003iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE201906-202009

main90948-T2004iGUN135..SAXTR..X201506-202005

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z205iGUN12#,135..THDCB201506-202005

MARK 48510-0KC40

main48510-8Z207iGUN135..SAXTR..X201604-202009

MARK 48510-0KD40

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGUN12#,135..THDCB201506-202005

main48609-0K070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR201807-202009

MADE IN THAILAND

main48609-0K120iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR201807-202009

MADE IN INDIA

main48609-0K120iGUN12#,135..SADCB,SASCB,SAXTR201604-201807

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iGUN135..SAXTR..X201506-202009

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGUN12#,135..THDCB201506-202005

main48609-0K070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR201807-202009

MADE IN THAILAND

main48609-0K120iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR201807-202009

MADE IN INDIA

main48609-0K120iGUN12#,135..SADCB,SASCB,SAXTR201604-201807

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGUN135..SAXTR..X201506-202009

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015iGUN135..SAXTR..X201506-202009

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGUN135..SAXTR..X201506-202009

48811BAR, STABILIZER, FRONT

main48811-0K170iGUN12#,135..THDCB201506-202005

main48811-0K180iGUN135..SAXTR..X201604-202009

TYPE B:REFER ILLUST.

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090iGUN135..SAXTR..X201506-202009

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iGUN135..SAXTR..X201506-202009

48824BRACKET, STABILIZER, FRONT

main48824-KK010iGUN135..SAXTR..X201506-202009

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
