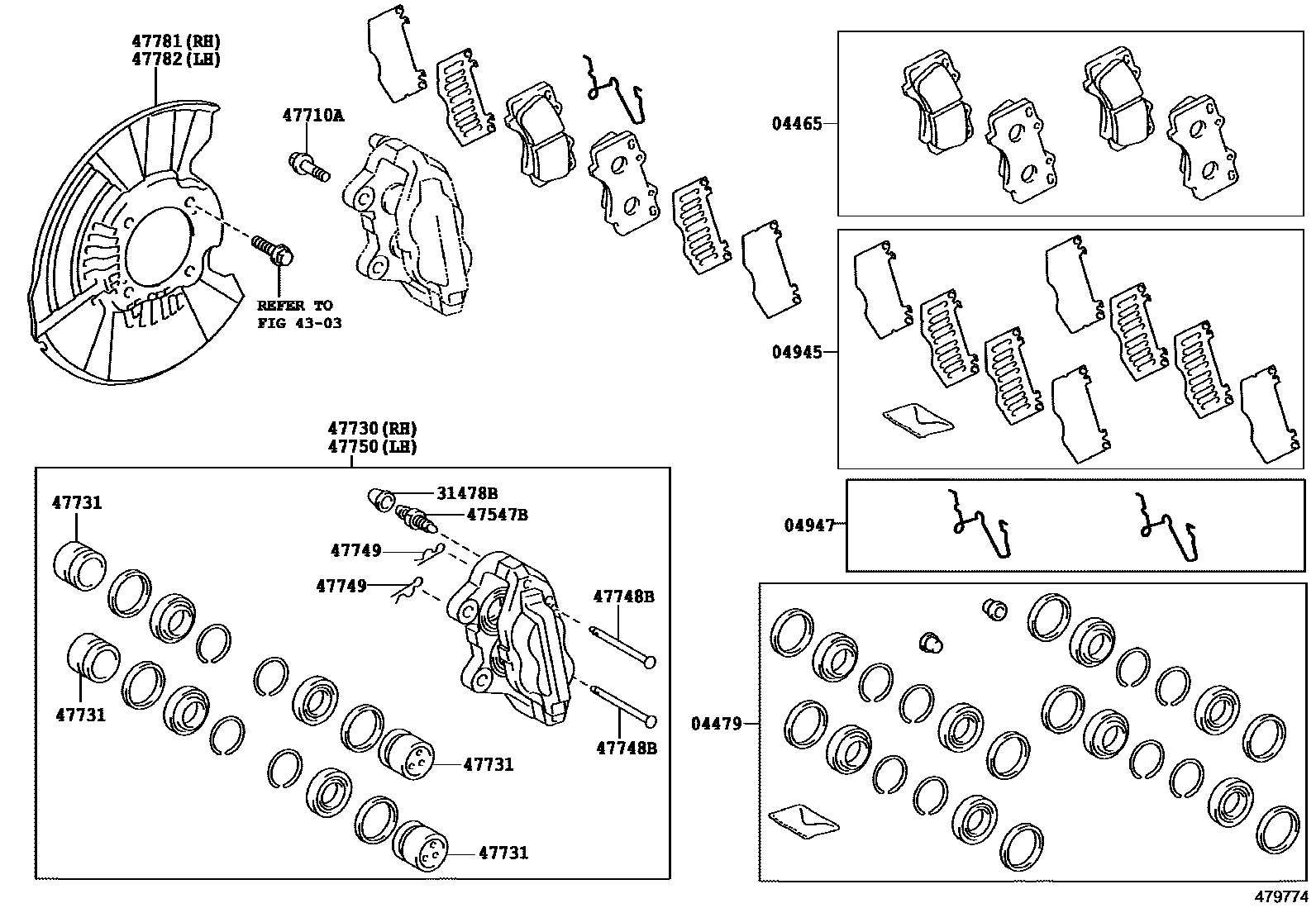

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS PS558H
04945SHIM KIT, ANTI SQUEAL, FRONT
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
4303
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-27030iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-T0322iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
*14-1.5PX35-30.5
sub90105-14212
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731PISTON, FRONT DISC BRAKE
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
main90016-AE602iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
47749CLIP, PIN HOLD
47750CYLINDER ASSY, DISC BRAKE, LH
15 parts on this diagram · 1 diagram in section
