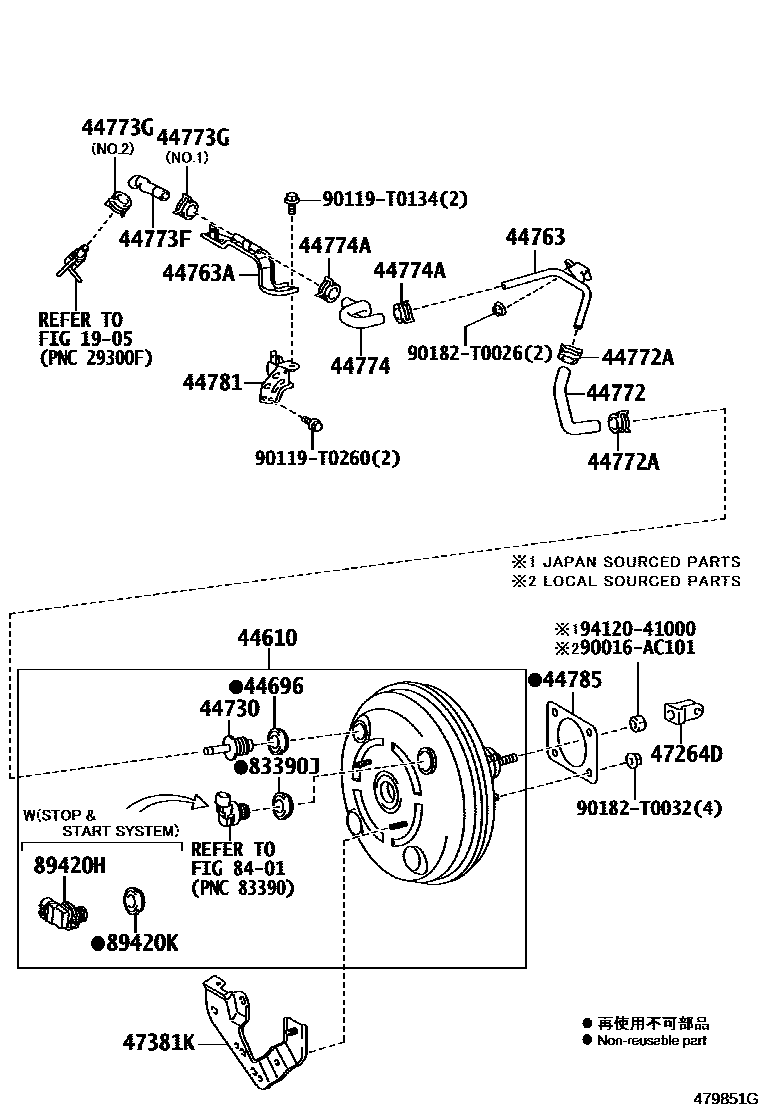

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
main44610-0K600iGUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE201506-202009
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
main44730-60070iGUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE201506-202009
44763TUBE, BOOSTER VACUUM
main44763-KK050iGUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
44763ATUBE, HOSE TO HOSE, NO.1
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44773FHOSE, UNION TO CHECK VALVE
main44773-KK030iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
44773GCLIP(FOR UNION TO CHECK VALVE HOSE)
main90466-T0019iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
NO.1
NO.2
44774HOSE, UNION TO CONNECTOR TUBE
main44774-KK040iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44781BRACKET, HOSE
44785GASKET, BRAKE BOOSTER
main44785-17010iGUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE201506-202009
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
83390JGROMMET, VACUUM WARNING SWITCH
8401
89420HSENSOR ASSY, VACUUM
89420KGROMMET, VACUUM SENSOR
90016AC101
main90016-AC101
90119T0134
main90119-T0134
90119T0260
main90119-T0260
90182T0026
main90182-T0026
90182T0032
main90182-T0032
9412041000
main94120-41000
26 parts on this diagram · 2 diagrams in section
