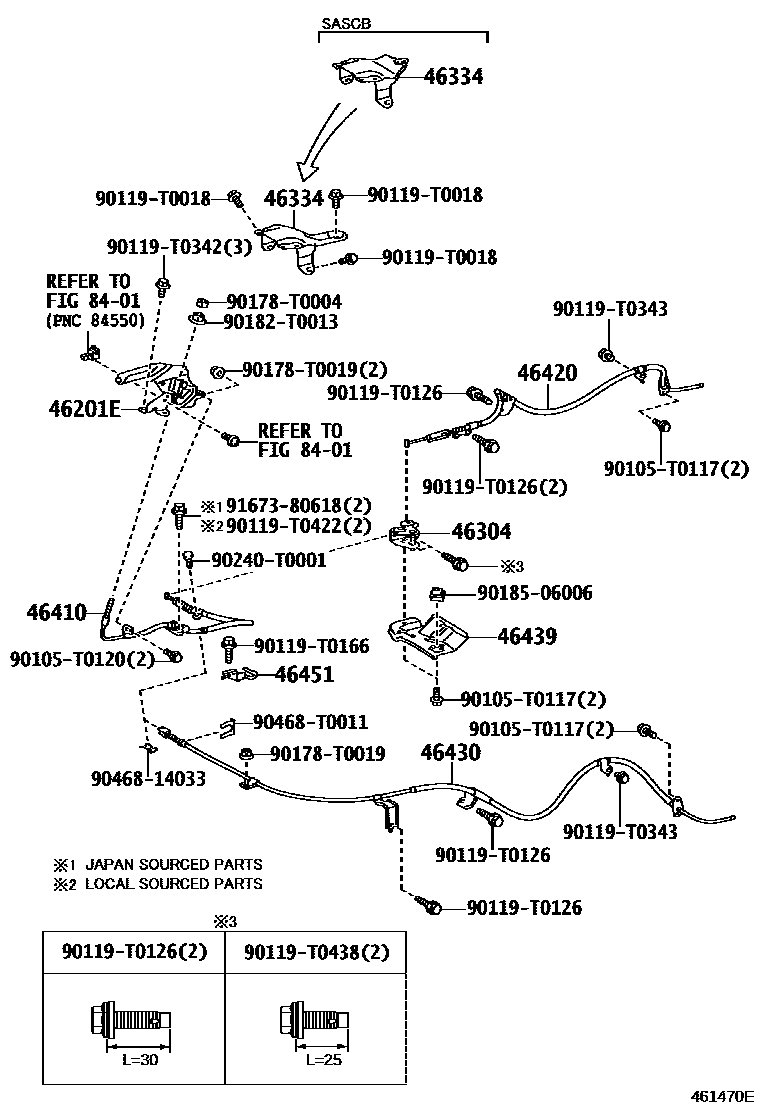

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K210-C0iGUN125..SAXTR..M..HDCR;GUN125,135..(SADCB,SAXTR)..(H,M)..DCRE201604-202009

BLACK,TRIM2#

main46201-0K210-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

main46201-0K230-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#,3#

main46201-0K230-C0iGUN125,135..THDCB..(H,M)..DCRE201905-202005

BLACK,TRIM2#

main46201-0K250-C0iGUN125,135..THDCB..S201506-202005

BLACK,TRIM2#

main46201-0K280-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN135..SAXTR..X201506-202009

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN135..SAXTR..X201506-202009

main46334-0K020iGUN125,135..SASCB201604-202009

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K120iGUN135..SAXTR..X201506-202009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K290iGUN12#,135..THDCB201506-202005

main46420-0K310iGUN135..SAXTR..X201604-202009

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN12#,135..THDCB201506-202005

main46430-0K230iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR201604-202009

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN135..SAXTR..X201506-202009

46451BRACKET, CABLE SUPPORT

main46451-0K040iGUN135..SAXTR..X201506-202009

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

26 parts on this diagram · 1 diagram in section
