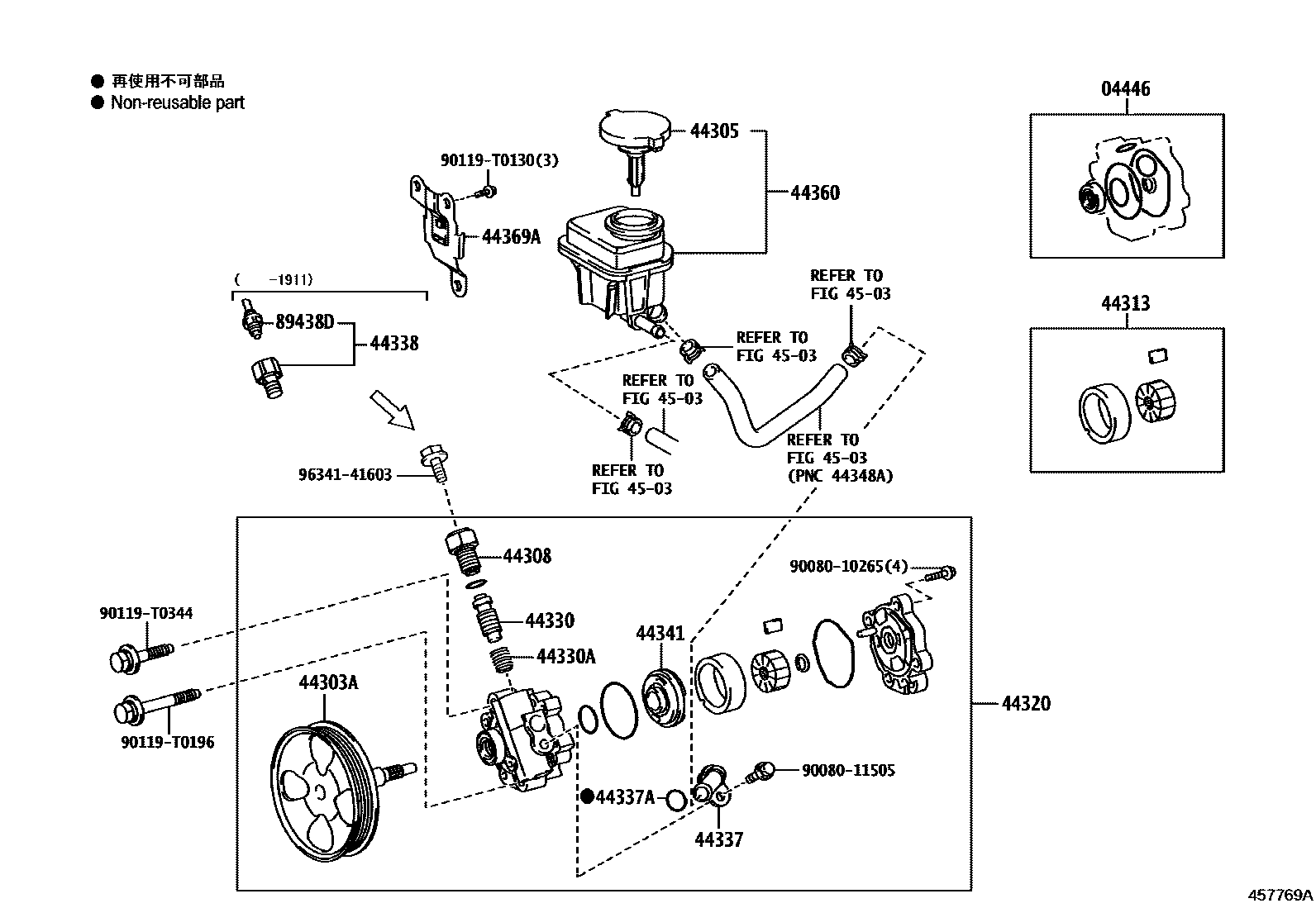

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44303ASHAFT SUB-ASSY, W/PULLEY
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44308UNION SUB-ASSY, PRESSURE PORT
44313ROTOR, VANE PUMP
main44313-09010iGUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE201506-202009
44320PUMP ASSY, VANE
REFER TO PNC 44413F
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK C
MARK D
MARK E
MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338UNION, PRESSURE PORT
44341PLATE, VANE PUMP SIDE, FRONT
44360RESERVOIR ASSY, VANE PUMP OIL
44369ABRACKET, OIL RESERVOIR, NO.1
4503
89438DSWITCH, POWER STEERING OIL PRESSURE
9008010265
main90080-10265
9008011505
main90080-11505
90119T0130
main90119-T0130
90119T0196
main90119-T0196
90119T0344
main90119-T0344
9634141603
main96341-41603
22 parts on this diagram · 2 diagrams in section
