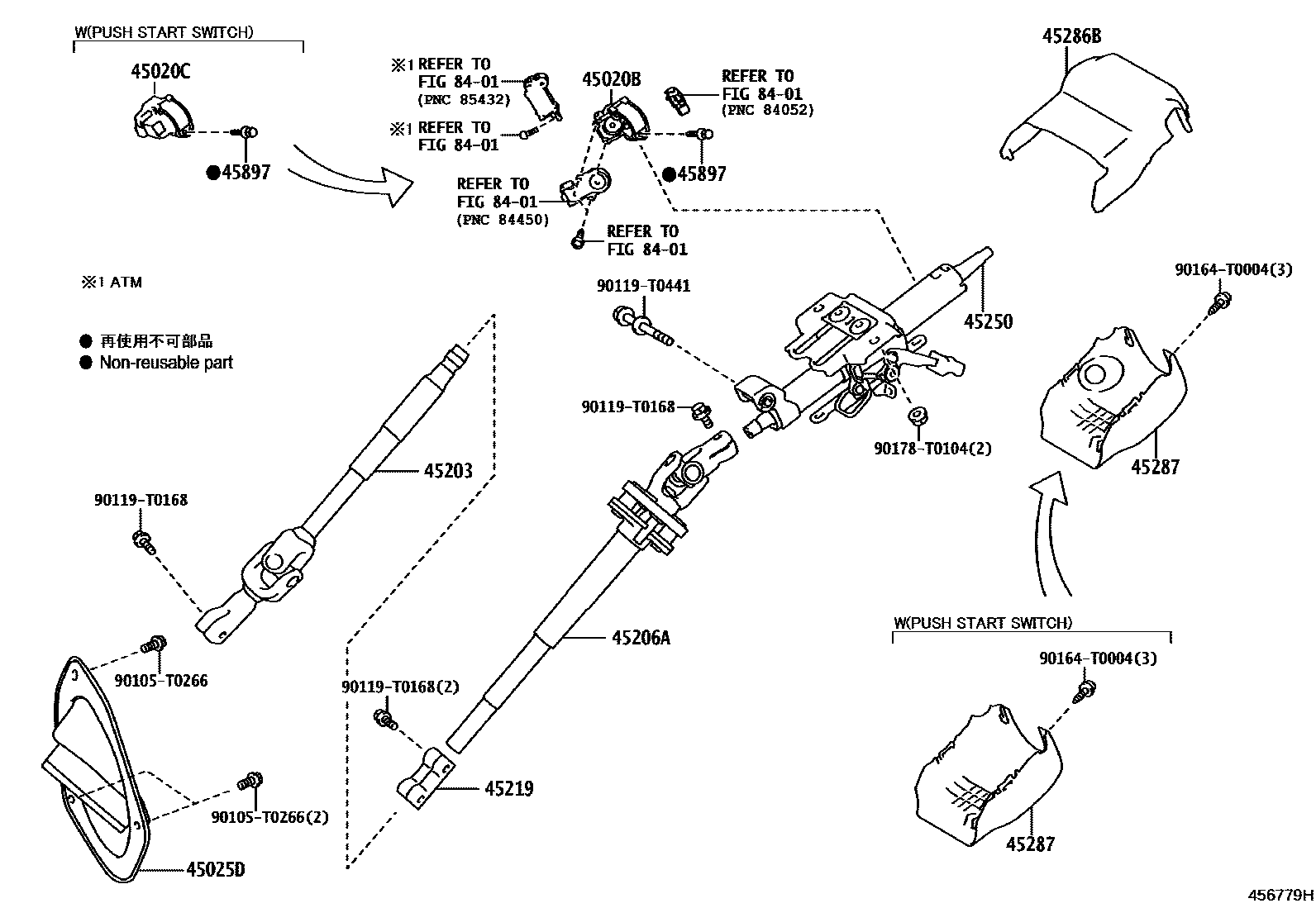

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0K120iGUN12#,135..6FC..(M,S)201506-202009

main45280-0K180iGUN135..SAXTR..X201506-202009

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iGUN12#..H201506-202009

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-KK010iGUN125..RHD..DCRE;GUN125..RHD..SADCB..HDCR201604-202009

main45025-KK020iGUN135..SAXTR..X..CBU201506-202009

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K180iGUN125..RHD..DCRE;GUN125..RHD..SADCB..HDCR201604-202009

main45203-0K190iGUN135..SAXTR..X201506-202009

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K070iGUN125..RHD..DCRE;GUN125..RHD..SADCB..HDCR201604-202009

sub45206-0K140

main45206-0K090iGUN135..SAXTR..X..CBU201506-202009

sub45206-0K120

45219YOKE, STEERING SLIDING

main45219-0K090iGUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE201506-202009

45250COLUMN ASSY, STEERING

main45250-0K070iGUN135..SAXTR..X..CBU201506-202009

main45250-0K080iGUN12#..H201506-202009

45286BCOVER, STEERING COLUMN, UPR

main45286-0K040-C0iGUN12#,135..THDCB..(H,M)..HDCR201506-202005

BLACK,TRIM2#

main45286-0K040-C0iGUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005

BLACK,TRIM2#,3#

main45286-0K090-C0iGUN125..SADCB..(S,X)..HDCR;GUN125..(SADCB,SASCB,SAXTR)..DCRE;GUN135..(SADCB,SASCB,SAXTR)..S..CBU;GUN135..(SADCB,SASCB,SAXTR)..(M,X)..DCRE201604-202009

BLACK,TRIM2#

main45286-0K090-C0iGUN12#,135..SADCB..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

45287COVER, STEERING COLUMN, LWR

main45287-0K050-C0iGUN12#,135..THDCB..M..HDCR201506-202005

BLACK,TRIM2#,3#

main45287-0K050-C0iGUN12#,135..THDCB..M..HDCR201506-202005

BLACK,TRIM2#

main45287-0K060-C0iGUN12#..THDCB..H..HDCR201506-202005

BLACK,TRIM2#,3#

main45287-0K060-C0iGUN125..THDCB..H..DCRE201905-202005

BLACK,TRIM2#

main45287-0K150-C0iGUN135..SAXTR..X201604-202009

BLACK,TRIM2#

main45287-0K150-C0iGUN12#,135..SADCB..M201604-201905

BLACK,TRIM2#,3#,4#

main45287-0K160-C0iGUN125..SAXTR..M201906-202009

BLACK,TRIM2#

main45287-0K160-C0iGUN125..SADCB..H201906-202009

STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES)),BLACK,TRIM2#

main45287-0K160-C0iGUN12#..SADCB..H201604-201905

BLACK,TRIM2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

8401

90105T0266

main90105-T0266

90119T0168

main90119-T0168

90119T0441

main90119-T0441

90164T0004

main90164-T0004

90178T0104

main90178-T0104

16 parts on this diagram · 1 diagram in section
