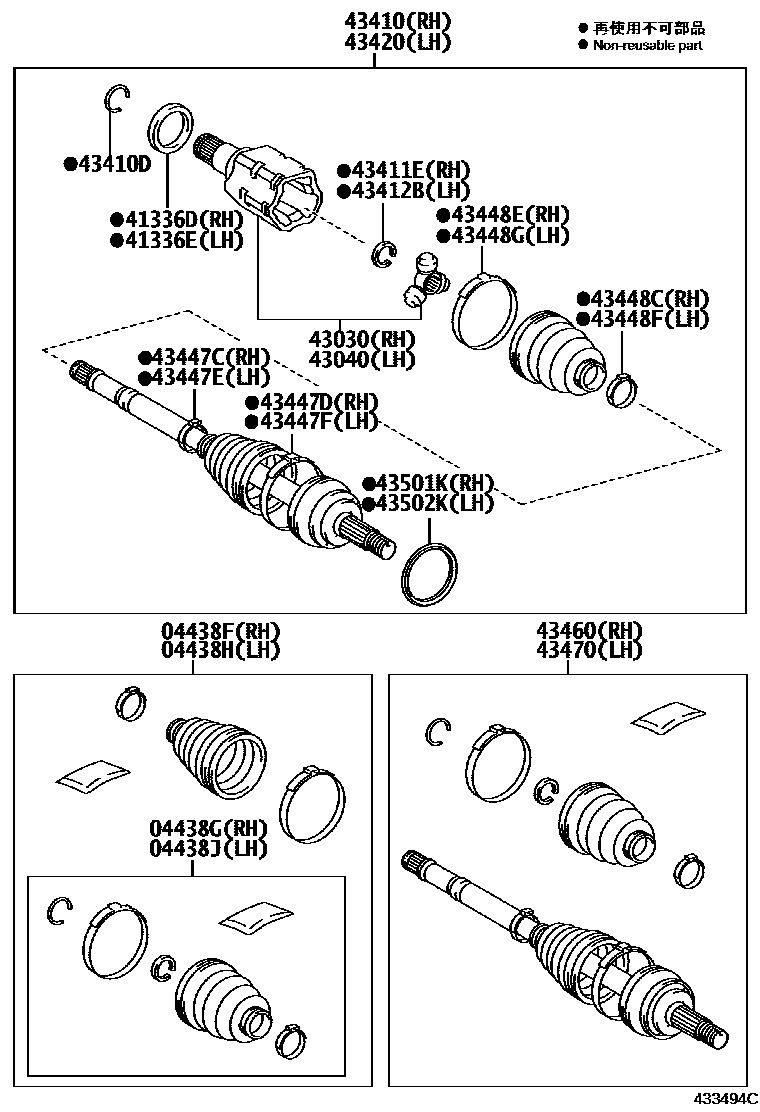

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
sub04427-0K061
sub04427-0K062
sub04427-0K063
sub04427-0K071
sub04427-0K072
04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
sub04427-0K061
sub04427-0K062
sub04427-0K063
sub04427-0K071
sub04427-0K072
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
41336ECOVER, FRONT DRIVE SHAFT DUST, LH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43040JOINT ASSY, FRONT DRIVE INBOARD, LH
43410SHAFT ASSY, FRONT DRIVE, RH
43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420SHAFT ASSY, FRONT DRIVE, LH
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43501KSEAL, DUST (FOR FRONT AXLE HUB RH)
43502KSEAL, DUST (FOR FRONT AXLE HUB LH)
25 parts on this diagram · 1 diagram in section
