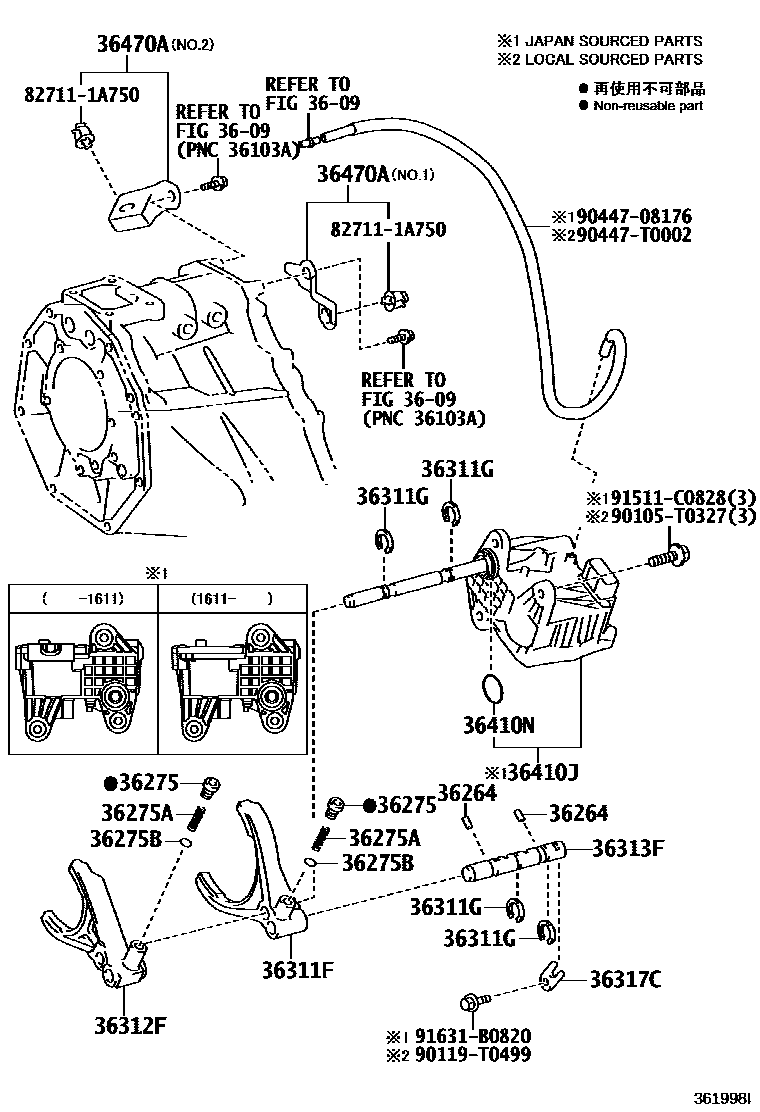

TRANSFER LEVER & SHIFT ROD
3609
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=8.6,OD=6,*382,*381
36275PLUG, SHIFT DETENT BALL SPRING
*381
*381
*382
*382
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=20.8,*381
L=20.8,*382
36275BBALL, SHIFT DETENT
OD=9.52,STEEL,*381
OD=9.53,STEEL,*382
36311FFORK, TRANSFER GEAR SHIFT, NO.1
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
*381
*382
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
*382
*381
36317CSTOPPER, TRANSFER SHIFT SHAFT
*382
*381
36410JACTUATOR ASSY, TRANSFER SHIFT
*382:REFER TO ILL.
*382
*382
*381:REFER TO ILL.
*381
*381
36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)
*381
*382
36470ABRACKET ASSY, TRANSFER BREATHER
*382,NO.1:REFER ILL.
*382,NO.2:REFER ILL.
*381,NO.1:REFER ILL.
*381,NO.2:REFER ILL.
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
90105T0327
main90105-T0327
90119T0499
main90119-T0499
9044708176
main90447-08176
90447T0002
main90447-T0002
91511C0828
main91511-C0828
91631B0820
main91631-B0820
20 parts on this diagram · 1 diagram in section
