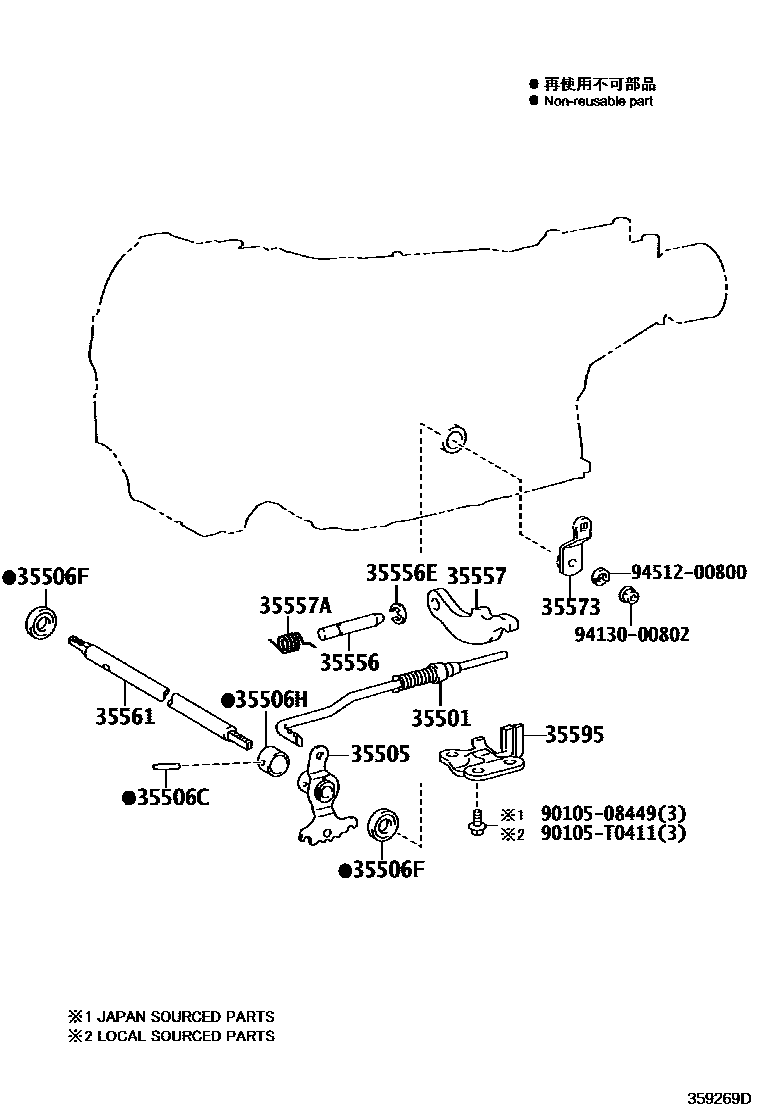

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGUN12#,135..6FC201506-202009

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGUN12#,135..6FC201506-202009

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN12#,135..6FC201506-202009

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN12#,135..THDCB..6FC201506-202009

main90311-12002iGUN126,135..THDCB..6FC201708-202005

(J)

main90311-T0093iGUN126,135..THDCB..6FC201708-202005

(L)

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGUN12#,135..6FC201506-202009

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGUN12#,135..6FC201506-202009

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN12#,135..6FC201506-202009

35557PAWL, PARKING LOCK

main35557-71010iGUN12#,135..6FC201506-202009

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN12#,135..6FC201506-202009

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN12#,135..6FC201506-202009

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGUN12#,135..THDCB..6FC201912-202005

(L)

main35573-71010iGUN125,135..THDCB..6FC..DCRE;GUN12#..THDCB..6FC..(H,M)..HDCR201506-202009

main35573-71010iGUN126,135..THDCB..6FC201708-202005

(J)

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGUN12#,135..6FC201506-202009

9010508449

main90105-08449

90105T0411

main90105-T0411

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 1 diagram in section
