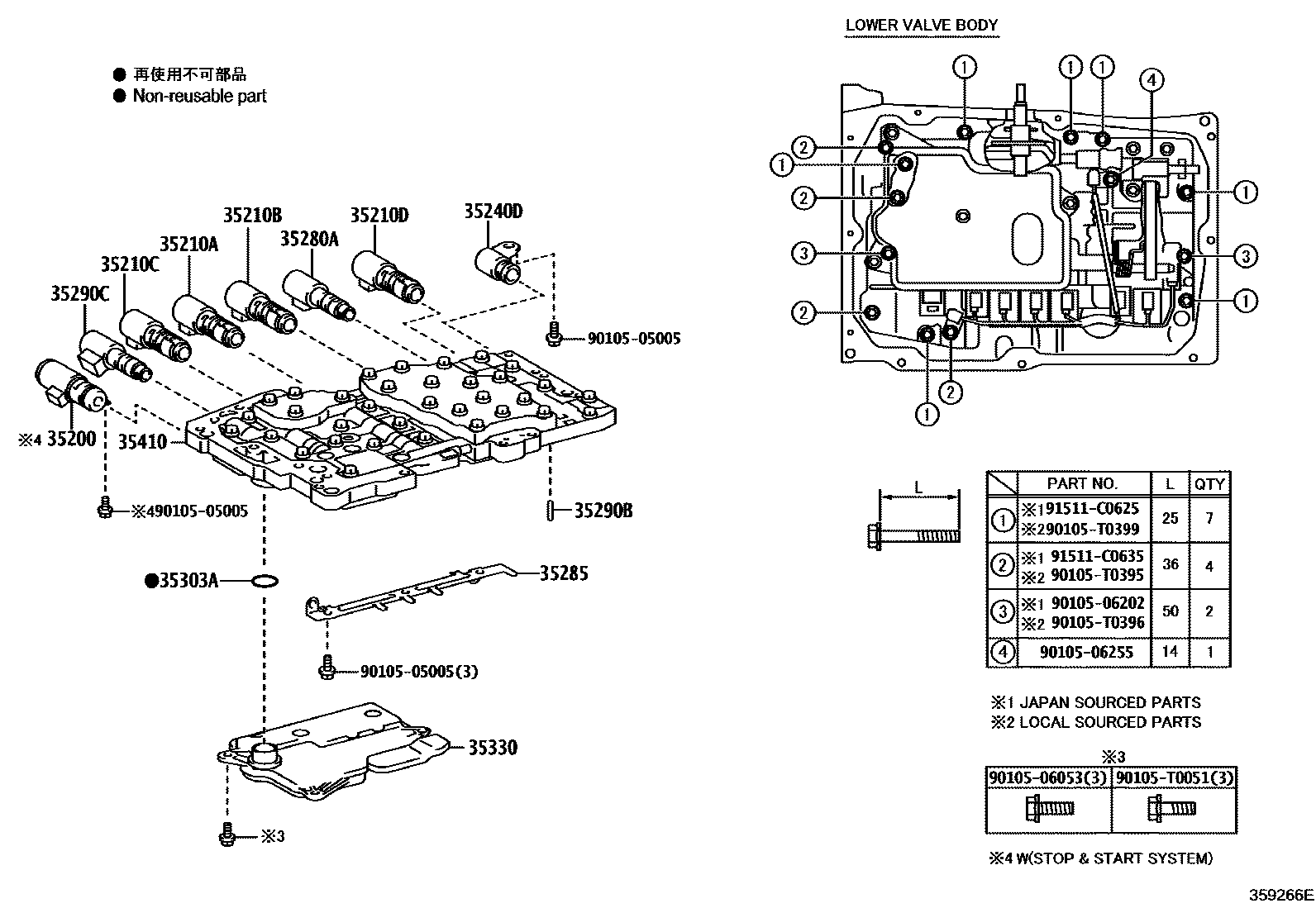

VALVE BODY & OIL STRAINER (ATM)
35200PUMP ASSY, OIL, W/SOLENOID
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
(L)
(J)
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
35290CVALVE, SOLENOID(SLT)
35303ARING, O (FOR OIL STRAINER)
(J)
(L)
35330STRAINER ASSY, VALVE BODY OIL
35410BODY ASSY, TRANSMISSION VALVE
9010505005
9010506053
9010506202
9010506255
90105T0051
main90105-T0051
90105T0395
90105T0396
90105T0399
91511C0625
91511C0635
23 parts on this diagram · 2 diagrams in section
