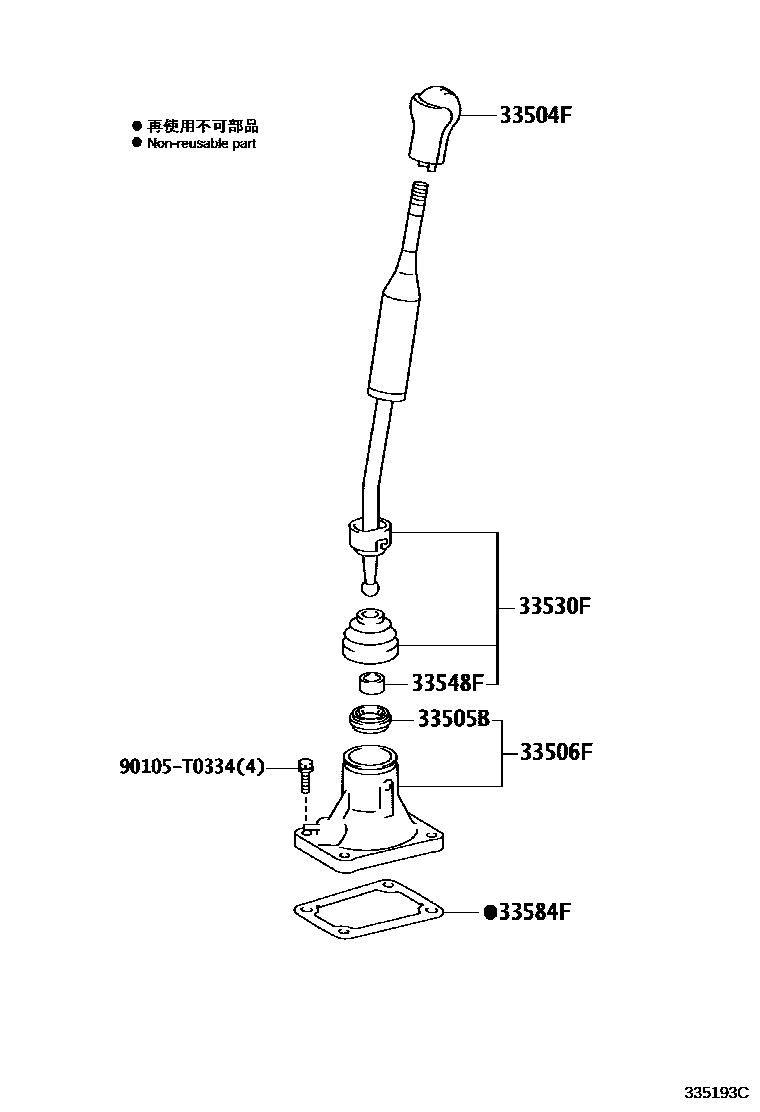

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K090-C0iGUN125,135..THDCB..6F..S201506-202005

BLACK,TRIM2#

main33504-0K100-C0iGUN125,135..SADCB..6F..(H,M)201604-201905

BLACK,TRIM2#,3#,4#

sub33504-0K101

main33504-0K100-C0iGUN125,135..THDCB..6F..M..HDCR201506-201906

BLACK,TRIM2#,3#

sub33504-0K101

main33504-0K100-C0iGUN125,135..6F..M..DCRE201604-201907

BLACK,TRIM2#

sub33504-0K101

main33504-0K101-C0iGUN125,135..6F..(H,M)201907-202009

BLACK,TRIM2#

main33504-0K120-C0iGUN12#,135..THDCB..6FC..(H,M)201506-201801

BLACK,TRIM2#,3#

sub33504-0K121

main33504-0K120-C0iGUN125..6FC..S201708-201801

BLACK,TRIM2#

sub33504-0K121

main33504-0K120-C0iGUN12#..SADCB..6FC201604-201801

BLACK,TRIM2#,3#,4#

sub33504-0K121

main33504-0K121-C0iGUN12#,135..6FC201802-202009

BLACK,TRIM2#

main33504-0K230-C0iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009

BLACK,TRIM2#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33505-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33505-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K070iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33506-0K090iGUN135..SAXTR..X201506-201905

TYPE B:REFER 33-01

main33570-0K110iGUN125..6F201506-201906

TYPE A:REFER 33-01

sub33570-0K111

main33570-0K111iGUN125..6F201906-202009

TYPE A:REFER 33-01

main33570-0K120iGUN125..6F201506-201812

TYPE B:REFER 33-01

sub33570-0K121

main33570-0K121iGUN125..6F201812-202009

TYPE B:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K680iGUN135..SAXTR..X201506-201908

sub33530-0K681

main33530-0K681iGUN135..6F..DCRE201909-202009

main33530-0K690iGUN125..6F201506-201908

sub33530-0K691

main33530-0K691iGUN125..6F201909-202009

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-22020iGUN125..6F201506-202009

main33548-60040iGUN135..SAXTR..X201506-202009

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-0K010iGUN125..6F201506-202009

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K020iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33584-0K020iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K020iGUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..6F201506-201905

TYPE B:REFER 33-01

90105T0334

main90105-T0334

7 parts on this diagram · 4 diagrams in section
