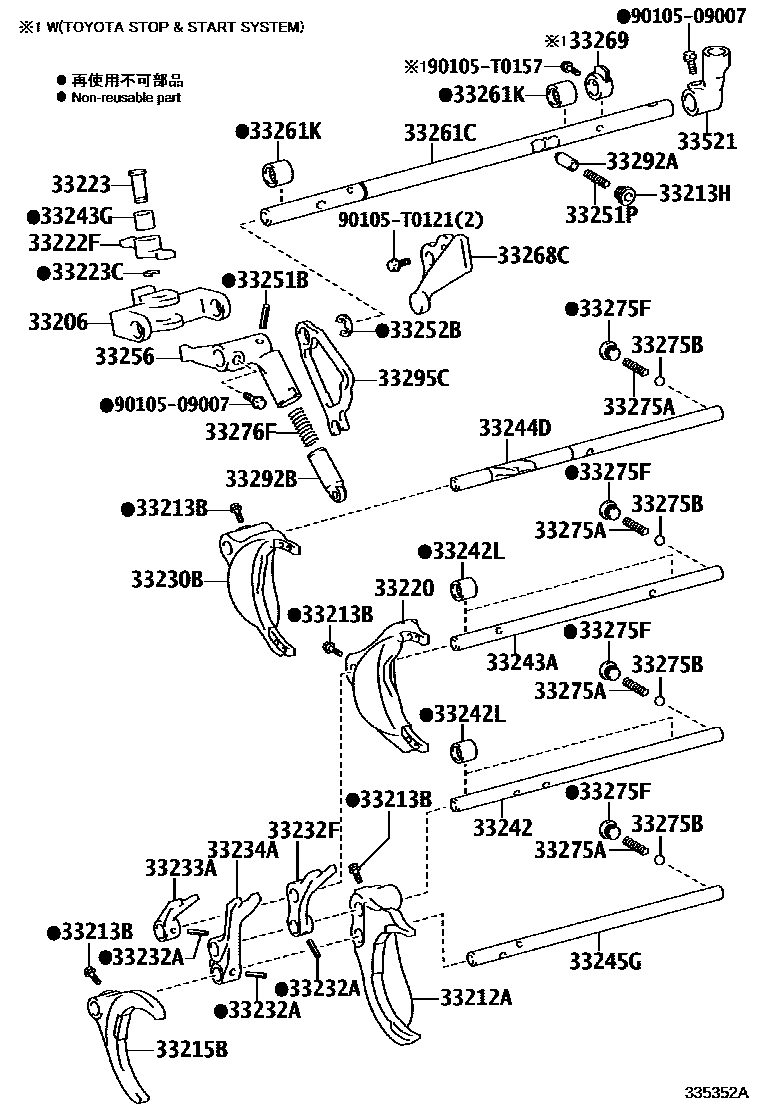

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1RC60 0002 1RC60F

33206PLATE SUB-ASSY, SHIFT INTERLOCK

main33206-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33206-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

main33206-0K010iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE A:REFER 33-01

33212AFORK, GEAR SHIFT, NO.1

main33212-0K040iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33212-0K040iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33212-0K040iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33213BBOLT(FOR SHIFT FORK SET)

main90105-T0157iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90105-T0157iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main90105-T0157iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33213HPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-16013iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main90341-T0016iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

33215BFORK, GEAR SHIFT, NO.4

main33215-0K010iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE A:REFER 33-01

main33215-0K010iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

main33215-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

33220FORK ASSY, GEAR SHIFT, NO.2

main33220-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33220-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33220-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33222FARM, SHIFT

main33222-0K010iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

main33222-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33222-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

33223PIVOT, SHIFT ARM

main33223-0K030iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33223-0K030iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33223-0K030iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)

main90520-14003iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main90520-T0238iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

33230BFORK ASSY, GEAR SHIFT, NO.3

main33230-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33230-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33230-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05019iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main90254-T0006iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

33232FHEAD, GEAR SHIFT, NO.1

main33232-0K012iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33232-0K022iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

33233AHEAD, GEAR SHIFT, NO.2

main33233-0K011iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33233-0K021iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

33234AHEAD, GEAR SHIFT, NO.3

main33235-0K011iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33235-0K021iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-0K082iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main33242-0K092iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

sub33242-0K083

33242LBEARING (FOR SHIFT FORK SHAFT)

main90369-T0010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90369-T0010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main90369-T0010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-0K051iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main33243-0K061iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

33243GBEARING ( FOR SHIFT FORK SHAFT)

main90364-16010iGUN135..SAXTR..X201507-202009

TYPE A:REFER 33-01

main90364-T0042iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

main90364-T0042iGUN125,135..6F201506-201507

TYPE A:REFER 33-01

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-0K090iGUN135..SAXTR..X201602-202009

TYPE B:REFER 33-01

main33244-0K090iGUN135..SAXTR..X201609-202009

TYPE A:REFER 33-01

main33244-71020iGUN125,135..6F201506-201608

TYPE A:REFER 33-01

main33244-71020iGUN125,135..6F201506-201601

TYPE B:REFER 33-01

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-0K051iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main33245-0K061iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

sub33245-0K052

33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

main90254-05016iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

L=25.5,TYPE A:REFER 33-01

main90254-T0004iGUN135..SAXTR..X201506-202009

L=25.5,TYPE B:REFER 33-01

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-T0040iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90501-T0040iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main90501-T0040iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-T0004iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main90523-T0004iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90523-T0004iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33256LEVER, SELECT INNER

main33256-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33256-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

main33256-0K010iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE A:REFER 33-01

33261CSHAFT, SHIFT & SELECT LEVER

main33261-0K040iGUN125..6F201506-202009

TYPE A:REFER 33-01

main33261-0K050iGUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..6F201506-201905

TYPE A:REFER 33-01

main33261-0K060iGUN125..6F201506-202009

TYPE B:REFER 33-01

sub33261-0K041

main33261-0K070iGUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..6F201506-201905

TYPE B:REFER 33-01

sub33261-0K051

main33261-0K080iGUN135..6F..DCRE201905-202009

TYPE A:REFER 33-01

33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)

main90364-T0044iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90364-T0044iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202003

TYPE A:REFER 33-01

main90364-T0044iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201506-202009

TYPE B:REFER 33-01

main90364-T0058iGUN125..6F;GUN135..6F..DCRE202003-202009

TYPE A:REFER 33-01

33268CSTOPPER, SHIFT INTERLOCK PLATE

main33268-0K010iGUN125,135..6F201506-201602

TYPE B:REFER 33-01

sub33268-0K020

main33268-0K010iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

sub33268-0K020

main33268-0K020iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201603-202009

TYPE B:REFER 33-01

sub33268-0K030

33269COVER, SHIFT INTERLOCK PLATE

main33269-71010iGUN135..6F..DCRE201905-202009

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-T0039iGUN135..SAXTR..X201506-201807

L=15.35,TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90501-T0039iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

L=15.35,TYPE A:REFER 33-01

main90501-T0039iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

L=15.35,TYPE B:REFER 33-01

33275BBALL, SHAFT DETENT

main90360-10003iGUN135..SAXTR..X201704-202009

TYPE A:SEE 33-01,(J)

main90360-10003iGUN125,135..6F201506-201704

TYPE A:REFER 33-01

main90360-T0008iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

main90360-T0013iGUN135..SAXTR..X201704-202009

TYPE A:SEE 33-01,(L)

33275FPLUG (FOR SHIFT DETENT BALL)

main90341-12014iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main90341-T0014iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

main90501-T0041iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main90501-T0041iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90501-T0041iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33292APIN, LOCK BALL

main33292-0K010iGUN125,135..6F201506-201606

TYPE A:REFER 33-01

sub33292-0K011

main33292-0K010iGUN125,135..6F201506-201605

TYPE B:REFER 33-01

sub33292-0K011

main33292-0K011iGUN125..6F;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,THDCB)..6F..HDCR201605-202009

TYPE B:REFER 33-01

main33292-0K011iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201607-202009

TYPE A:REFER 33-01

33292BPIN, LOCK BALL NO.2

main33292-0K020iGUN125,135..6F201506-201507

TYPE A:REFER 33-01

main33292-0K020iGUN135..SAXTR..X201506-202009

TYPE B:REFER 33-01

main33292-71010iGUN135..SAXTR..X201507-202009

TYPE A:REFER 33-01

33295CCAM, SHIFT & SELECT

main33295-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main33295-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33295-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

33521HOUSING, SHIFT LEVER

main33521-0K160iGUN125..6F201506-202009

TYPE A:REFER 33-01

main33521-0K170iGUN135..SAXTR..X201506-202009

TYPE A:REFER 33-01

main33521-0K180iGUN125..6F201506-202009

TYPE B:REFER 33-01

main33521-0K190iGUN135..SAXTR..X201506-201905

TYPE B:REFER 33-01

9010509007

main90105-09007

90105T0121

main90105-T0121

90105T0157

main90105-T0157

39 parts on this diagram · 2 diagrams in section
