TRANSMISSION GEAR (MTM)

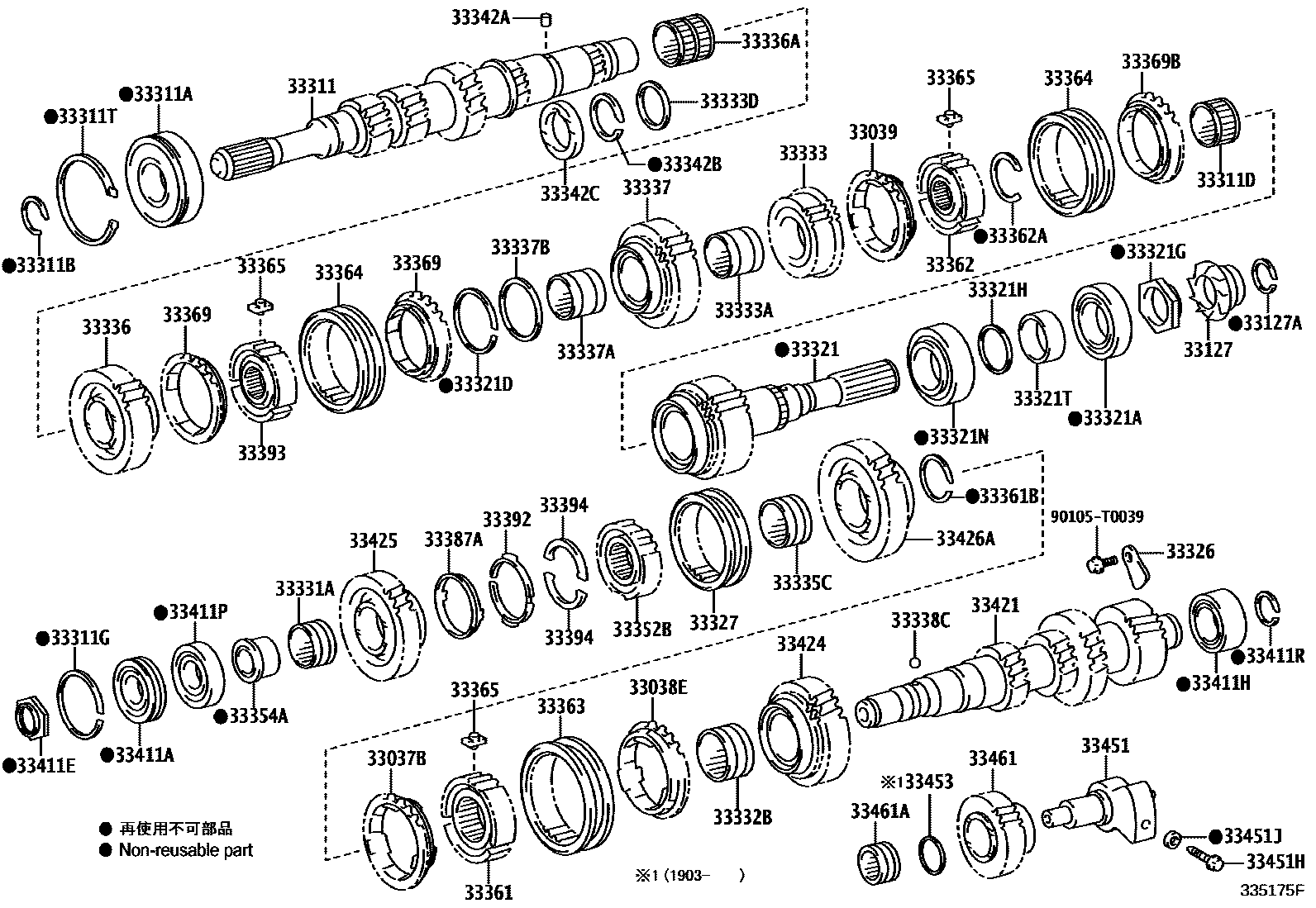

Parts diagram
33037BRING SET, SYNCHRONIZER, NO.1
main33037-0K070i201506-202009
TYPE A:REFER 33-01
main33037-0K070i201506-202009
TYPE B:REFER 33-01
main33037-0K070i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33038ERING SET, SYNCHRONIZER, NO.2
main33038-0K040i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33038-0K090
main33038-0K040i201506-202009
TYPE A:REFER 33-01
sub33038-0K090
main33038-0K040i201506-202009
TYPE B:REFER 33-01
sub33038-0K090
33039RING SET, SYNCHRONIZER, NO.3
main33039-0K010i201506-201801
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33039-0K011
main33039-0K011i201801-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33369-0K010
sub33034-04020
sub33034-0K140
sub33034-0K160
main33039-0K011i201801-202009
TYPE A:REFER 33-01
sub33369-0K010
sub33034-04020
sub33034-0K140
sub33034-0K160
main33039-0K011i201801-202009
TYPE B:REFER 33-01
sub33369-0K010
sub33034-04020
sub33034-0K140
sub33034-0K160
33127RUNNER, TRANSMISSION OIL
main33127-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33127-0K010i201506-201905
TYPE B:REFER 33-01
main33127-0K010i201506-202009
TYPE A:REFER 33-01
33127ARING, SNAP (FOR OUTPUT SHAFT)
main90520-33029i201506-202009
33311SHAFT, INPUT
main33311-0K070i201506-202009
TYPE A:REFER 33-01
main33311-0K080i201506-202009
TYPE B:REFER 33-01
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-T0041i201506-202009
TYPE B:REFER 33-01
main90363-T0041i201506-202009
TYPE A:REFER 33-01
main90363-T0041i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-T0142i201506-202009
T=2.65,MARK A,TYPE A:REFER 33-01
main90520-T0142i201506-202009
T=2.65,MARK A,TYPE B:REFER 33-01
main90520-T0142i201506-201807
T=2.65,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0143i201506-202009
T=2.70,MARK B,TYPE B:REFER 33-01
main90520-T0143i201506-201807
T=2.70,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0143i201506-202009
T=2.70,MARK B,TYPE A:REFER 33-01
main90520-T0144i201506-202009
T=2.75,MARK C,TYPE B:REFER 33-01
main90520-T0144i201506-201807
T=2.75,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0144i201506-202009
T=2.75,MARK C,TYPE A:REFER 33-01
main90520-T0145i201506-202009
T=2.80,MARK D,TYPE A:REFER 33-01
main90520-T0145i201506-201807
T=2.80,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0145i201506-202009
T=2.80,MARK D,TYPE B:REFER 33-01
main90520-T0146i201506-201807
T=2.85,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0146i201506-202009
T=2.85,MARK E,TYPE A:REFER 33-01
main90520-T0146i201506-202009
T=2.85,MARK E,TYPE B:REFER 33-01
main90520-T0147i201506-202009
T=2.90,MARK F,TYPE A:REFER 33-01
main90520-T0147i201506-201807
T=2.90,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0147i201506-202009
T=2.90,MARK F,TYPE B:REFER 33-01
33311DBEARING, INPUT SHAFT
main90364-T0038i201506-202009
TYPE A:REFER 33-01
main90364-T0038i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90364-T0038i201506-202009
TYPE B:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-67003i201506-202009
TYPE A:REFER 33-01
main90520-T0141i201506-202009
TYPE B:REFER 33-01
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
main90520-81008i201506-202009
T=2.4,TYPE A:REFER 33-01
main90520-81008i201506-202009
T=2.4,TYPE B:REFER 33-01
main90520-81008i201506-201807
T=2.4,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33321SHAFT, OUTPUT
main33302-0K010i201506-202009
TYPE A:REFER 33-01
main33302-0K020i201506-202009
TYPE A:REFER 33-01
main33302-0K030i201506-202009
TYPE B:REFER 33-01
main33302-0K040i201506-201905
TYPE B:REFER 33-01
33321ABEARING (FOR OUTPUT SHAFT REAR)
main90366-T0074i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90366-T0074i201506-202003
TYPE A:REFER 33-01
main90366-T0074i201506-202009
TYPE B:REFER 33-01
main90366-T0129i202003-202009
TYPE A:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-T0148i201506-202009
T=1.80,MARK A,TYPE A:REFER 33-01
main90520-T0148i201506-202009
T=1.80,MARK A,TYPE B:REFER 33-01
main90520-T0148i201506-201807
T=1.80,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0149i201506-202009
T=1.85,MARK B,TYPE B:REFER 33-01
main90520-T0149i201506-201807
T=1.85,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0149i201506-202009
T=1.85,MARK B,TYPE A:REFER 33-01
main90520-T0150i201506-202009
T=1.90,MARK C,TYPE A:REFER 33-01
main90520-T0150i201506-201807
T=1.90,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0150i201506-202009
T=1.90,MARK C,TYPE B:REFER 33-01
main90520-T0151i201506-202009
T=1.95,MARK D,TYPE A:REFER 33-01
main90520-T0151i201506-202009
T=1.95,MARK D,TYPE B:REFER 33-01
main90520-T0151i201506-201807
T=1.95,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0152i201506-202009
T=2.00,MARK E,TYPE A:REFER 33-01
main90520-T0152i201506-201807
T=2.00,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0152i201506-202009
T=2.00,MARK E,TYPE B:REFER 33-01
main90520-T0153i201506-202009
T=2.05,MARK F,TYPE B:REFER 33-01
main90520-T0153i201506-201807
T=2.05,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0153i201506-202009
T=2.05,MARK F,TYPE A:REFER 33-01
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
main90179-48004i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90179-48004i201506-202009
TYPE A:REFER 33-01
main90179-48004i201506-202009
TYPE B:REFER 33-01
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
main90564-T0020i201506-201807
T=2.222,MARK 01,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0020i201506-202009
T=2.222,MARK 01,TYPE A:REFER 33-01
main90564-T0020i201506-202009
T=2.222,MARK 01,TYPE B:REFER 33-01
main90564-T0021i201506-202009
T=2.238,MARK 02,TYPE B:REFER 33-01
main90564-T0021i201506-201807
T=2.238,MARK 02,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0021i201506-202009
T=2.238,MARK 02,TYPE A:REFER 33-01
main90564-T0022i201506-202009
T=2.254,MARK 03,TYPE A:REFER 33-01
main90564-T0022i201506-202009
T=2.254,MARK 03,TYPE B:REFER 33-01
main90564-T0022i201506-201807
T=2.254,MARK 03,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0023i201506-202009
T=2.270,MARK 04,TYPE B:REFER 33-01
main90564-T0023i201506-202009
T=2.270,MARK 04,TYPE A:REFER 33-01
main90564-T0023i201506-201807
T=2.270,MARK 04,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0024i201506-202009
T=2.286,MARK 05,TYPE A:REFER 33-01
main90564-T0024i201506-202009
T=2.286,MARK 05,TYPE B:REFER 33-01
main90564-T0024i201506-201807
T=2.286,MARK 05,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0025i201506-202009
T=2.302,MARK 06,TYPE A:REFER 33-01
main90564-T0025i201506-201807
T=2.302,MARK 06,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0025i201506-202009
T=2.302,MARK 06,TYPE B:REFER 33-01
main90564-T0026i201506-202009
T=2.318,MARK 07,TYPE A:REFER 33-01
main90564-T0026i201506-202009
T=2.318,MARK 07,TYPE B:REFER 33-01
main90564-T0026i201506-201807
T=2.318,MARK 07,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0027i201506-202009
T=2.334,MARK 08,TYPE B:REFER 33-01
main90564-T0027i201506-202009
T=2.334,MARK 08,TYPE A:REFER 33-01
main90564-T0027i201506-201807
T=2.334,MARK 08,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0028i201506-202009
T=2.350,MARK 09,TYPE B:REFER 33-01
main90564-T0028i201506-201807
T=2.350,MARK 09,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0028i201506-202009
T=2.350,MARK 09,TYPE A:REFER 33-01
main90564-T0029i201506-202009
T=2.366,MARK 10,TYPE B:REFER 33-01
main90564-T0029i201506-202009
T=2.366,MARK 10,TYPE A:REFER 33-01
main90564-T0029i201506-201807
T=2.366,MARK 10,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0030i201506-202009
T=2.382,MARK 11,TYPE A:REFER 33-01
main90564-T0030i201506-202009
T=2.382,MARK 11,TYPE B:REFER 33-01
main90564-T0030i201506-201807
T=2.382,MARK 11,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0031i201506-202009
T=2.398,MARK 12,TYPE B:REFER 33-01
main90564-T0031i201506-201807
T=2.398,MARK 12,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0031i201506-202009
T=2.398,MARK 12,TYPE A:REFER 33-01
main90564-T0032i201506-202009
T=2.414,MARK 13,TYPE A:REFER 33-01
main90564-T0032i201506-202009
T=2.414,MARK 13,TYPE B:REFER 33-01
main90564-T0032i201506-201807
T=2.414,MARK 13,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0033i201506-202009
T=2.430,MARK 14,TYPE A:REFER 33-01
main90564-T0033i201506-201807
T=2.430,MARK 14,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0033i201506-202009
T=2.430,MARK 14,TYPE B:REFER 33-01
main90564-T0034i201506-202009
T=2.446,MARK 15,TYPE A:REFER 33-01
main90564-T0034i201506-202009
T=2.446,MARK 15,TYPE B:REFER 33-01
main90564-T0034i201506-201807
T=2.446,MARK 15,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0035i201506-202009
T=2.462,MARK 16,TYPE A:REFER 33-01
main90564-T0035i201506-202009
T=2.462,MARK 16,TYPE B:REFER 33-01
main90564-T0035i201506-201807
T=2.462,MARK 16,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0036i201506-202009
T=2.478,MARK 17,TYPE A:REFER 33-01
main90564-T0036i201506-202009
T=2.478,MARK 17,TYPE B:REFER 33-01
main90564-T0036i201506-201807
T=2.478,MARK 17,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0037i201506-202009
T=2.494,MARK 18,TYPE B:REFER 33-01
main90564-T0037i201506-201807
T=2.494,MARK 18,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0037i201506-202009
T=2.494,MARK 18,TYPE A:REFER 33-01
main90564-T0038i201506-202009
T=2.510,MARK 19,TYPE B:REFER 33-01
main90564-T0038i201506-201807
T=2.510,MARK 19,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0038i201506-202009
T=2.510,MARK 19,TYPE A:REFER 33-01
main90564-T0039i201506-202009
T=2.526,MARK 20,TYPE A:REFER 33-01
main90564-T0039i201506-201807
T=2.526,MARK 20,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0039i201506-202009
T=2.526,MARK 20,TYPE B:REFER 33-01
main90564-T0040i201506-202009
T=2.542,MARK 21,TYPE B:REFER 33-01
main90564-T0040i201506-202009
T=2.542,MARK 21,TYPE A:REFER 33-01
main90564-T0040i201506-201807
T=2.542,MARK 21,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0041i201506-202009
T=2.558,MARK 22,TYPE B:REFER 33-01
main90564-T0041i201506-201807
T=2.558,MARK 22,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0041i201506-202009
T=2.558,MARK 22,TYPE A:REFER 33-01
main90564-T0042i201506-202009
T=2.574,MARK 23,TYPE A:REFER 33-01
main90564-T0042i201506-201807
T=2.574,MARK 23,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0042i201506-202009
T=2.574,MARK 23,TYPE B:REFER 33-01
main90564-T0043i201506-202009
T=2.590,MARK 24,TYPE B:REFER 33-01
main90564-T0043i201506-201807
T=2.590,MARK 24,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0043i201506-202009
T=2.590,MARK 24,TYPE A:REFER 33-01
main90564-T0044i201506-202009
T=2.606,MARK 25,TYPE A:REFER 33-01
main90564-T0044i201506-202009
T=2.606,MARK 25,TYPE B:REFER 33-01
main90564-T0044i201506-201807
T=2.606,MARK 25,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0045i201506-202009
T=2.622,MARK 26,TYPE A:REFER 33-01
main90564-T0045i201506-201807
T=2.622,MARK 26,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0045i201506-202009
T=2.622,MARK 26,TYPE B:REFER 33-01
main90564-T0046i201506-202009
T=2.638,MARK 27,TYPE A:REFER 33-01
main90564-T0046i201506-202009
T=2.638,MARK 27,TYPE B:REFER 33-01
main90564-T0046i201506-201807
T=2.638,MARK 27,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0047i201506-202009
T=2.654,MARK 28,TYPE B:REFER 33-01
main90564-T0047i201506-201807
T=2.654,MARK 28,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0047i201506-202009
T=2.654,MARK 28,TYPE A:REFER 33-01
main90564-T0048i201506-201807
T=2.670,MARK 29,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0048i201506-202009
T=2.670,MARK 29,TYPE A:REFER 33-01
main90564-T0048i201506-202009
T=2.670,MARK 29,TYPE B:REFER 33-01
main90564-T0049i201506-202009
T=2.686,MARK 30,TYPE B:REFER 33-01
main90564-T0049i201506-202009
T=2.686,MARK 30,TYPE A:REFER 33-01
main90564-T0049i201506-201807
T=2.686,MARK 30,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0050i201506-202009
T=2.702,MARK 31,TYPE B:REFER 33-01
main90564-T0050i201506-202009
T=2.702,MARK 31,TYPE A:REFER 33-01
main90564-T0050i201506-201807
T=2.702,MARK 31,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0051i201506-202009
T=2.718,MARK 32,TYPE B:REFER 33-01
main90564-T0051i201506-201807
T=2.718,MARK 32,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0051i201506-202009
T=2.718,MARK 32,TYPE A:REFER 33-01
main90564-T0052i201506-202009
T=2.734,MARK 33,TYPE A:REFER 33-01
main90564-T0052i201506-202009
T=2.734,MARK 33,TYPE B:REFER 33-01
main90564-T0052i201506-201807
T=2.734,MARK 33,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0053i201506-202009
T=2.750,MARK 34,TYPE A:REFER 33-01
main90564-T0053i201506-202009
T=2.750,MARK 34,TYPE B:REFER 33-01
main90564-T0053i201506-201807
T=2.750,MARK 34,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0054i201506-202009
T=2.766,MARK 35,TYPE A:REFER 33-01
main90564-T0054i201506-202009
T=2.766,MARK 35,TYPE B:REFER 33-01
main90564-T0054i201506-201807
T=2.766,MARK 35,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0055i201506-202009
T=2.782,MARK 36,TYPE B:REFER 33-01
main90564-T0055i201506-201807
T=2.782,MARK 36,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0055i201506-202009
T=2.782,MARK 36,TYPE A:REFER 33-01
main90564-T0056i201506-202009
T=2.798,MARK 37,TYPE A:REFER 33-01
main90564-T0056i201506-202009
T=2.798,MARK 37,TYPE B:REFER 33-01
main90564-T0056i201506-201807
T=2.798,MARK 37,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0057i201506-202009
T=2.814,MARK 38,TYPE A:REFER 33-01
main90564-T0057i201506-202009
T=2.814,MARK 38,TYPE B:REFER 33-01
main90564-T0057i201506-201807
T=2.814,MARK 38,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0058i201506-202009
T=2.830,MARK 39,TYPE A:REFER 33-01
main90564-T0058i201506-202009
T=2.830,MARK 39,TYPE B:REFER 33-01
main90564-T0058i201506-201807
T=2.830,MARK 39,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0059i201506-202009
T=2.846,MARK 40,TYPE A:REFER 33-01
main90564-T0059i201506-202009
T=2.846,MARK 40,TYPE B:REFER 33-01
main90564-T0059i201506-201807
T=2.846,MARK 40,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0060i201506-202009
T=2.862,MARK 41,TYPE A:REFER 33-01
main90564-T0060i201506-202009
T=2.862,MARK 41,TYPE B:REFER 33-01
main90564-T0060i201506-201807
T=2.862,MARK 41,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0061i201905-202009
T=2.878,MARK 42,CRUISE CONTROL-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE A:REFER 33-01
main90564-T0061i201506-201807
T=2.878,MARK 42,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0061i201506-202005
T=2.878,MARK 42,TYPE B:REFER 33-01
main90564-T0061i201506-202005
T=2.878,MARK 42,VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
main90564-T0061i201506-202009
T=2.878,MARK 42,TYPE A:REFER 33-01
main90564-T0061i201905-202009
T=2.878,MARK 42
main90564-T0061i201905-202009
T=2.878,MARK 42,CRUISE CONTROL-WITH,TYPE B:REFER 33-01
main90564-T0061i201905-202009
T=2.878,MARK 42,CRUISE CONTROL-WITHOUT,TYPE B:REFER 33-01
main90564-T0062i201506-202009
T=2.894,MARK 43,TYPE A:REFER 33-01
main90564-T0062i201506-202009
T=2.894,MARK 43,TYPE B:REFER 33-01
main90564-T0062i201506-201807
T=2.894,MARK 43,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0063i201506-202009
T=2.910,MARK 44,TYPE B:REFER 33-01
main90564-T0063i201506-202009
T=2.910,MARK 44,TYPE A:REFER 33-01
main90564-T0063i201506-201807
T=2.910,MARK 44,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0064i201506-202009
T=2.926,MARK 45,TYPE B:REFER 33-01
main90564-T0064i201506-202009
T=2.926,MARK 45,TYPE A:REFER 33-01
main90564-T0064i201506-201807
T=2.926,MARK 45,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0065i201506-202009
T=2.942,MARK 46,TYPE B:REFER 33-01
main90564-T0065i201506-202009
T=2.942,MARK 46,TYPE A:REFER 33-01
main90564-T0065i201506-201807
T=2.942,MARK 46,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0066i201506-202009
T=2.958,MARK 47,TYPE A:REFER 33-01
main90564-T0066i201506-202009
T=2.958,MARK 47,TYPE B:REFER 33-01
main90564-T0066i201506-201807
T=2.958,MARK 47,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33321NBEARING (FOR OUTPUT SHAFT FRONT)
main90366-50155i201507-202009
TYPE A:REFER 33-01
main90366-T0077i201506-201507
TYPE A:REFER 33-01
main90366-T0077i201506-202009
TYPE B:REFER 33-01
33321TSPACER (FOR OUTPUT SHAFT)
main35469-0K040i201905-202009
CRUISE CONTROL-WITH,TYPE A:REFER 33-01
main35469-0K040i201506-202005
TYPE A:REFER 33-01
main35469-0K040i201506-202005
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
main35469-0K040i201506-202009
TYPE B:REFER 33-01
main35469-0K040i201905-202009
CRUISE CONTROL-WITHOUT,TYPE A:REFER 33-01
main35469-0K050i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main35469-0K050i201506-201905
TYPE B:REFER 33-01
main35469-0K050i201506-202009
TYPE A:REFER 33-01
33326PLATE, BEARING LOCK
main33326-0K010i201506-202009
TYPE A:REFER 33-01
main33326-0K020i201506-202009
TYPE B:REFER 33-01
33327SLEEVE, TRANSMISSION HUB, NO.4
main33327-0K010i201506-202009
TYPE A:REFER 33-01
main33327-0K020i201506-202009
TYPE B:REFER 33-01
33331ABEARING (FOR REVERSE GEAR)
main90364-T0040i201506-202009
TYPE A:REFER 33-01
main90364-T0040i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90364-T0040i201506-202009
TYPE B:REFER 33-01
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-T0035i201506-202009
TYPE B:REFER 33-01
main90364-T0035i201506-202009
TYPE A:REFER 33-01
main90364-T0035i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33333GEAR, 3RD
main33034-0K090i201506-202009
TYPE A:REFER 33-01
sub33034-0K140
sub33369-0K010
main33034-0K090i201905-202009
#,TYPE A:REFER 33-01
sub33034-0K140
sub33369-0K010
main33034-0K090i201905-202009
CRUISE CONTROL-WITH,TYPE A:REFER 33-01
sub33034-0K140
sub33369-0K010
main33034-0K090i201905-202009
CRUISE CONTROL-WITHOUT,TYPE A:REFER 33-01
sub33034-0K140
sub33369-0K010
main33034-0K100i201905-202009
CRUISE CONTROL-WITHOUT,TYPE B:REFER 33-01
sub33034-0K160
sub33369-26010
main33034-0K100i201905-202009
CRUISE CONTROL-WITH,TYPE B:REFER 33-01
sub33034-0K160
sub33369-26010
main33034-0K100i201506-202005
TYPE B:REFER 33-01
sub33034-0K160
sub33369-26010
main33034-0K100i201506-202005
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
sub33034-0K160
sub33369-26010
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-T0036i201506-202009
TYPE B:REFER 33-01
main90364-T0036i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90364-T0036i201506-202009
TYPE A:REFER 33-01
33333DSPACER (FOR 3RD GEAR)
main90560-T0025i201903-202009
TYPE A:REFER 33-01
main90560-T0025i201506-202009
TYPE B:REFER 33-01
main90562-42002i201506-201903
TYPE A:REFER 33-01
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-T0034i201506-202009
TYPE A:REFER 33-01
main90364-T0034i201506-202009
TYPE B:REFER 33-01
main90364-T0034i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33336GEAR, 5TH
main33036-0K010i201506-202009
TYPE A:REFER 33-01
main33036-0K030i201506-202009
TYPE B:REFER 33-01
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90364-45018i201906-202009
CRUISE CONTROL-WITH,TYPE B:REFER 33-01
main90364-45018i201906-202009
CRUISE CONTROL-WITHOUT,TYPE B:REFER 33-01
main90364-45018i201906-202009
TYPE B:REFER 33-01
main90364-T0037i201506-201907
TYPE A:REFER 33-01
sub90364-45018
sub90364-T0056
main90364-T0037i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub90364-45018
sub90364-T0056
main90364-T0037i201506-201906
TYPE B:REFER 33-01
sub90364-45018
sub90364-T0056
main90364-T0056i201907-202009
TYPE A:REFER 33-01
33337GEAR SUB-ASSY, 6TH
main33037-0K080i201506-202009
TYPE A:REFER 33-01
main33037-0K100i201506-202009
TYPE B:REFER 33-01
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
main90364-T0039i201506-202009
TYPE A:REFER 33-01
main90364-T0039i201506-202009
TYPE B:REFER 33-01
main90364-T0039i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33337BSPACER (FOR 6TH GEAR)
main90560-T0017i201506-202009
TYPE B:REFER 33-01
main90560-T0017i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90560-T0017i201506-202009
TYPE A:REFER 33-01
33338CBALL, REVERSE SHIFT RESTRICT
main90360-06004i201506-201704
TYPE A:REFER 33-01
main90360-06004i201704-202009
TYPE A:SEE 33-01,(J)
main90360-T0009i201506-202009
TYPE B:REFER 33-01
main90360-T0011i201704-202009
TYPE A:SEE 33-01,(L)
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
main90250-05026i201506-202009
TYPE A:REFER 33-01
main90250-T0021i201506-202009
TYPE B:REFER 33-01
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
main90520-T0155i201506-202009
T=2.07,MARK A,TYPE B:REFER 33-01
main90520-T0155i201506-201807
T=2.07,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0155i201506-202009
T=2.07,MARK A,TYPE A:REFER 33-01
main90520-T0156i201506-202009
T=2.12,MARK B,TYPE A:REFER 33-01
main90520-T0156i201506-202009
T=2.12,MARK B,TYPE B:REFER 33-01
main90520-T0156i201506-201807
T=2.12,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0157i201506-202009
T=2.17,MARK C,TYPE A:REFER 33-01
main90520-T0157i201506-202009
T=2.17,MARK C,TYPE B:REFER 33-01
main90520-T0157i201506-201807
T=2.17,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0158i201506-202009
T=2.22,MARK D,TYPE B:REFER 33-01
main90520-T0158i201506-201807
T=2.22,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0158i201506-202009
T=2.22,MARK D,TYPE A:REFER 33-01
main90520-T0159i201506-202009
T=2.27,MARK E,TYPE B:REFER 33-01
main90520-T0159i201506-202009
T=2.27,MARK E,TYPE A:REFER 33-01
main90520-T0159i201506-201807
T=2.27,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0160i201506-202009
T=2.32,MARK F,TYPE B:REFER 33-01
main90520-T0160i201506-201807
T=2.32,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0160i201506-202009
T=2.32,MARK F,TYPE A:REFER 33-01
33342CWASHER, 3RD GEAR THRUST
main33342-0K010i201506-202009
TYPE A:REFER 33-01
sub33342-0K011
main33342-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33342-0K011
main33342-0K010i201506-202009
TYPE B:REFER 33-01
sub33342-0K011
33352BHUB, TRANSMISSION CLUTCH, NO.4
main33352-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33352-0K010i201506-202009
TYPE A:REFER 33-01
main33352-0K010i201506-202009
TYPE B:REFER 33-01
33354ARACE, REVERSE GEAR BEARING, INNER
main33354-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33354-0K010i201506-202009
TYPE A:REFER 33-01
main33354-0K010i201506-202009
TYPE B:REFER 33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0K070i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33361-0K070i201506-202009
TYPE A:REFER 33-01
main33361-0K070i201506-202009
TYPE B:REFER 33-01
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
main90520-T0168i201506-202009
T=2.28,MARK A,TYPE B:REFER 33-01
main90520-T0168i201506-201807
T=2.28,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0168i201506-202009
T=2.28,MARK A,TYPE A:REFER 33-01
main90520-T0169i201506-202009
T=2.33,MARK B,TYPE A:REFER 33-01
main90520-T0169i201506-201807
T=2.33,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0169i201506-202009
T=2.33,MARK B,TYPE B:REFER 33-01
main90520-T0170i201506-202009
T=2.38,MARK C,TYPE A:REFER 33-01
main90520-T0170i201506-202009
T=2.38,MARK C,TYPE B:REFER 33-01
main90520-T0170i201506-201807
T=2.38,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0171i201506-202009
T=2.43,MARK D,TYPE B:REFER 33-01
main90520-T0171i201506-202009
T=2.43,MARK D,TYPE A:REFER 33-01
main90520-T0171i201506-201807
T=2.43,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0172i201506-202009
T=2.48,MARK E,TYPE A:REFER 33-01
main90520-T0172i201506-201807
T=2.48,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0172i201506-202009
T=2.48,MARK E,TYPE B:REFER 33-01
main90520-T0173i201506-202009
T=2.53,MARK F,TYPE A:REFER 33-01
main90520-T0173i201506-202009
T=2.53,MARK F,TYPE B:REFER 33-01
main90520-T0173i201506-201807
T=2.53,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K040i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33362-0K040i201506-202009
TYPE A:REFER 33-01
main33362-0K040i201506-202009
TYPE B:REFER 33-01
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90520-T0161i201506-202009
T=2.50,MARK A,TYPE A:REFER 33-01
main90520-T0161i201506-201807
T=2.50,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0161i201506-202009
T=2.50,MARK A,TYPE B:REFER 33-01
main90520-T0162i201506-202009
T=2.55,MARK B,TYPE B:REFER 33-01
main90520-T0162i201506-201807
T=2.55,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0162i201506-202009
T=2.55,MARK B,TYPE A:REFER 33-01
main90520-T0163i201506-202009
T=2.60,MARK C,TYPE B:REFER 33-01
main90520-T0163i201506-202009
T=2.60,MARK C,TYPE A:REFER 33-01
main90520-T0163i201506-201807
T=2.60,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0164i201506-202009
T=2.65,MARK D,TYPE B:REFER 33-01
main90520-T0164i201506-201807
T=2.65,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0164i201506-202009
T=2.65,MARK D,TYPE A:REFER 33-01
main90520-T0165i201506-202009
T=2.70,MARK E,TYPE A:REFER 33-01
main90520-T0165i201506-202009
T=2.70,MARK E,TYPE B:REFER 33-01
main90520-T0165i201506-201807
T=2.70,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0166i201506-202009
T=2.75,MARK F,TYPE B:REFER 33-01
main90520-T0166i201506-202009
T=2.75,MARK F,TYPE A:REFER 33-01
main90520-T0166i201506-201807
T=2.75,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33363SLEEVE, TRANSMISSION HUB, NO.1
main33363-0K010i201506-202009
TYPE A:REFER 33-01
main33363-0K020i201506-202009
TYPE B:REFER 33-01
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0K040i201506-202009
TYPE A:REFER 33-01
main33364-0K050i201506-202009
TYPE B:REFER 33-01
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-0K030i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33365-0K030i201506-202009
TYPE A:REFER 33-01
main33365-0K030i201506-202009
TYPE B:REFER 33-01
33369RING, SYNCHRONIZER, NO.3
main33369-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33369-0K010i201506-202009
TYPE A:REFER 33-01
main33369-0K010i201506-202009
TYPE B:REFER 33-01
33369BRING, SYNCHRONIZER, NO.4
main33381-0K020i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33381-0K020i201506-202009
TYPE A:REFER 33-01
main33381-0K020i201506-202009
TYPE B:REFER 33-01
33387ARING, REVERSE SYNCHRONIZER
main33387-0K020i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33387-0K020i201506-202009
TYPE A:REFER 33-01
main33387-0K020i201506-202009
TYPE B:REFER 33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-35010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33392-35010i201506-202009
TYPE B:REFER 33-01
main33392-35010i201506-202009
TYPE A:REFER 33-01
main33392-35010i201905-202009
CRUISE CONTROL-WITH,TYPE B:REFER 33-01
main33392-35010i201905-202009
CRUISE CONTROL-WITH,TYPE A:REFER 33-01
main33392-35010i201905-202009
CRUISE CONTROL-WITHOUT,TYPE B:REFER 33-01
main33392-35010i201905-202009
CRUISE CONTROL-WITHOUT,TYPE A:REFER 33-01
33393HUB, TRANSMISSION CLUTCH, NO.3
main33393-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33393-0K010i201506-202009
TYPE A:REFER 33-01
main33393-0K010i201506-202009
TYPE B:REFER 33-01
33394KEY, SYNCHROMESH SHIFTING, NO.3
main33394-20020i201506-202009
TYPE A:REFER 33-01
main33394-20020i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33394-20020i201506-202009
TYPE B:REFER 33-01
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90369-T0011i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90369-T0011i201506-202009
TYPE A:REFER 33-01
main90369-T0011i201506-202009
TYPE B:REFER 33-01
33411ENUT(FOR COUNTER GEAR SHAFT)
main90179-32002i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90179-32002i201506-202009
TYPE A:REFER 33-01
main90179-32002i201506-202009
TYPE B:REFER 33-01
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90365-T0010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90365-T0010i201506-202009
TYPE A:REFER 33-01
main90365-T0010i201506-202009
TYPE B:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
main90365-T0009i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90365-T0009i201506-202009
TYPE A:REFER 33-01
main90365-T0009i201506-202009
TYPE B:REFER 33-01
33411RRING, SNAP, COUNTER GEAR REAR BEARING
main90520-T0175i201506-202009
T=2.45,MARK A,TYPE A:REFER 33-01
main90520-T0175i201506-201807
T=2.45,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0175i201506-202009
T=2.45,MARK A,TYPE B:REFER 33-01
main90520-T0176i201506-202009
T=2.50,MARK B,TYPE B:REFER 33-01
main90520-T0176i201506-201807
T=2.50,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0176i201506-202009
T=2.50,MARK B,TYPE A:REFER 33-01
main90520-T0177i201506-202009
T=2.55,MARK C,TYPE B:REFER 33-01
main90520-T0177i201506-202009
T=2.55,MARK C,TYPE A:REFER 33-01
main90520-T0177i201506-201807
T=2.55,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0178i201506-202009
T=2.60,MARK D,TYPE A:REFER 33-01
main90520-T0178i201506-202009
T=2.60,MARK D,TYPE B:REFER 33-01
main90520-T0178i201506-201807
T=2.60,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0179i201506-202009
T=2.65,MARK E,TYPE A:REFER 33-01
main90520-T0179i201506-201807
T=2.65,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0179i201506-202009
T=2.65,MARK E,TYPE B:REFER 33-01
main90520-T0180i201506-202009
T=2.70,MARK F,TYPE B:REFER 33-01
main90520-T0180i201506-202009
T=2.70,MARK F,TYPE A:REFER 33-01
main90520-T0180i201506-201807
T=2.70,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0181i201506-202009
T=2.75,MARK G,TYPE B:REFER 33-01
main90520-T0181i201506-201807
T=2.75,MARK G,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0181i201506-202009
T=2.75,MARK G,TYPE A:REFER 33-01
33421GEAR, COUNTER
main33421-0K100i201506-202009
TYPE A:REFER 33-01
main33421-0K120i201506-202009
TYPE B:REFER 33-01
33424GEAR, COUNTERSHAFT 2ND SPEED
main33424-0K010i201506-202009
TYPE A:REFER 33-01
main33424-0K020i201506-202009
TYPE B:REFER 33-01
33425GEAR, COUNTERSHAFT REVERSE
main33425-0K010i201506-202009
TYPE A:REFER 33-01
main33425-0K020i201506-202009
TYPE B:REFER 33-01
33426AGEAR, COUNTERSHAFT, 1ST SPEED
main33426-0K010i201506-202009
TYPE A:REFER 33-01
main33426-0K020i201506-202009
TYPE B:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
main33450-0K010i201506-202009
TYPE A:REFER 33-01
main33450-0K010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33450-0K010i201506-202009
TYPE B:REFER 33-01
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90109-10178i201506-202009
TYPE A:REFER 33-01
main90109-10178i201506-202009
TYPE B:REFER 33-01
main90109-10178i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90430-T0016i201506-202009
TYPE B:REFER 33-01
main90430-T0016i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90430-T0016i201506-202009
TYPE A:REFER 33-01
33453SPACER, REVERSE IDLER GEAR SHAFT
main90560-T0034i201903-202009
TYPE A:REFER 33-01
main90560-T0034i201903-202009
TYPE B:REFER 33-01
33461GEAR, REVERSE IDLER
main33461-0K080i201506-202009
TYPE A:REFER 33-01
main33461-0K090i201506-202009
TYPE B:REFER 33-01
33461ABEARING, REVERSE IDLER GEAR
main90364-T0041i201506-201907
TYPE A:REFER 33-01
sub90364-T0057
sub90560-T0034
main90364-T0041i201506-201903
TYPE B:REFER 33-01
sub90364-T0057
sub90560-T0034
main90364-T0041i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub90364-T0057
sub90560-T0034
main90364-T0057i201903-202009
TYPE B:REFER 33-01
main90364-T0057i201907-202009
TYPE A:REFER 33-01
90105T0039
main90105-T0039

66 parts on this diagram · 2 diagrams in section

TRANSMISSION GEAR (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
