CLUTCH HOUSING & TRANSMISSION CASE (MTM)

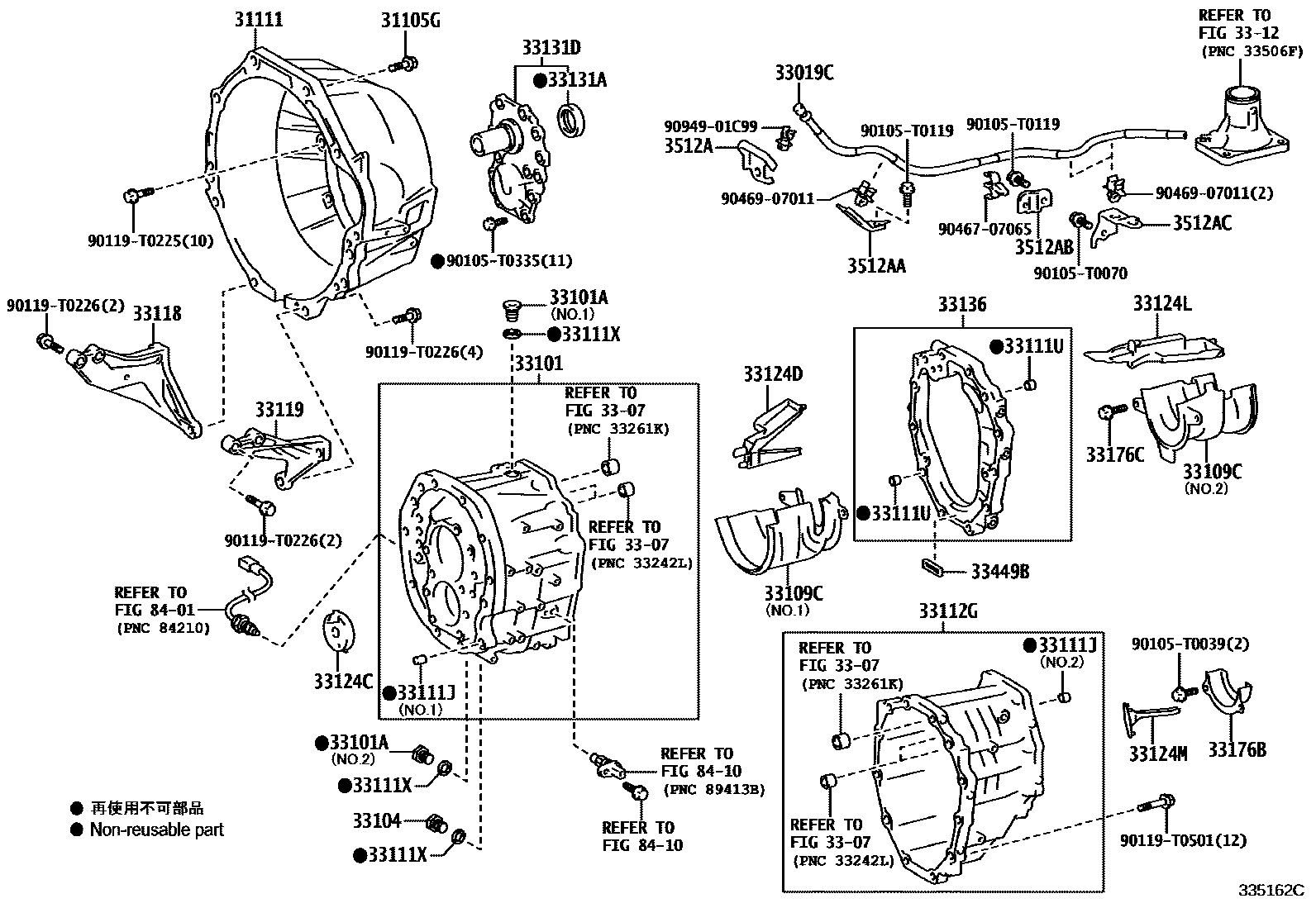

Parts diagram
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
main90119-T0227i201506-202009
*12-1.25PX50-30
31111HOUSING, CLUTCH
main31111-0K140i201506-202009
TYPE A:REFER 33-01
main31111-0K150i201506-202009
TYPE B:REFER 33-01
33019CBREATHER SUB-ASSY, TRANSMISSION
main33019-0K090i201506-202009
main33019-0K100i201506-202009
3307
33101CASE SUB-ASSY, MANUAL TRANSMISSION
main33101-0K070i201506-202009
TYPE A:REFER 33-01
sub33101-0K071
main33101-0K080i201506-202009
TYPE B:REFER 33-01
sub33101-0K081
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
main90341-18032i201506-202009
T/P B:SEE 33-01,NO.1
main90341-18032i201506-201807
T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
main90341-18032i201506-202009
T/P A:SEE 33-01,NO.1
main90341-18033i201506-202009
T/P A:SEE 33-01,NO.2
main90341-18033i201506-202009
T/P B:SEE 33-01,NO.2
main90341-18033i201506-201807
T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2
33104PLUG SUB-ASSY, DRAIN(MTM)
main90341-18006i201701-202009
TYPE A:REFER 33-01
main90341-18034i201506-201701
TYPE A:REFER 33-01
main90341-18034i201506-202009
TYPE B:REFER 33-01
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
main33109-0K010i201506-202009
T/P A:SEE 33-01,NO.1
main33109-0K020i201506-202009
T/P A:SEE 33-01,NO.2
main33109-0K030i201506-202009
T/P B:SEE 33-01,NO.1
main33109-0K040i201506-202009
T/P B:SEE 33-01,NO.2
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
main90250-11003i201701-202009
L=11,OD=11,T/PA:SEE33-01NO.2(J)
main90250-11003i201506-201701
L=11,OD=11,T/P A:SEE 33-01,NO.2
main90250-11003i201506-202009
L=11,OD=11,T/P B:SEE 33-01,NO.2
main90250-12002i201506-202009
L=16,OD=12,T/P A:SEE 33-01,NO.1
main90250-T0020i201506-202009
L=16,OD=12,T/P B:SEE 33-01,NO.1
main90250-T0029i201701-202009
L=11,OD=11,T/PA:SEE33-01NO.2(L)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
main90253-15001i201506-202009
L=14,OD=15,TYPE B:REFER 33-01
main90253-15001i201506-201701
L=14,OD=15,TYPE A:REFER 33-01
main90253-15001i201701-202009
L=14,OD=15,TYPE A:SEE 33-01,(J)
main90253-T0011i201701-202009
L=14,OD=15,TYPE A:SEE 33-01,(L)
33111XGASKET, TRANSMISSION CASE PLUG
main90430-T0021i201506-202009
TYPE B:REFER 33-01
main90430-T0025i201506-202009
TYPE A:REFER 33-01
33112GCASE, TRANSMISSION, REAR
main33102-0K010i201506-202005
TYPE A:REFER 33-01
main33102-0K020i201506-202005
TYPE B:REFER 33-01
main33102-0K030i201905-202009
TYPE A:REFER 33-01
main33102-0K030i201905-202009
CRUISE CONTROL-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE A:REFER 33-01
main33102-0K040i201905-202009
TYPE B:REFER 33-01
main33102-0K040i201905-202009
CRUISE CONTROL-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01
main33102-0K050i201506-202009
TYPE A:REFER 33-01
main33102-0K060i201506-201905
TYPE B:REFER 33-01
33118PLATE, STIFFENER, RH(MTM)
main33118-0K030i201506-202005
main33118-0K040i201604-202009
33119PLATE, STIFFENER, LH(MTM)
main33119-0K020i201506-202009
3312
33124CPIPE, OIL RECEIVER, NO.1(MTM)
main33124-0K070i201506-202009
TYPE B:REFER 33-01
main33124-0K070i201506-202009
TYPE A:REFER 33-01
main33124-0K070i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33124DPIPE, OIL RECEIVER, NO.2(MTM)
main33124-0K080i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33124-04010
main33124-0K080i201506-202009
TYPE A:REFER 33-01
sub33124-04010
main33124-0K080i201506-202009
TYPE B:REFER 33-01
sub33124-04010
33124LPIPE, OIL RECEIVER, N0.3(MTM)
main33124-0K090i201506-202009
TYPE B:REFER 33-01
main33124-0K090i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33124-0K090i201506-202009
TYPE A:REFER 33-01
33124MPIPE, OIL RECEIVER, N0.4(MTM)
main33124-0K100i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33124-0K100i201506-201905
TYPE B:REFER 33-01
main33124-0K100i201506-202009
TYPE A:REFER 33-01
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
main90311-T0066i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90311-T0066i201506-202009
TYPE A:REFER 33-01
main90311-T0066i201506-202009
TYPE B:REFER 33-01
33131DRETAINER, BEARING, FRONT
main33108-0K010i201506-202009
TYPE A:REFER 33-01
main33108-0K020i201506-202009
TYPE B:REFER 33-01
33136PLATE, TRANSMISSION INTERMEDIATE
main33106-0K010i201506-202009
TYPE A:REFER 33-01
sub33106-0K030
main33106-0K020i201506-202009
TYPE B:REFER 33-01
33176BSEPARATOR, TRANSMISSION OIL(MTM)
main33176-0K050i201506-202009
TYPE A:REFER 33-01
main33176-0K060i201506-201905
TYPE B:REFER 33-01
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
main90105-T0334i201506-202009
TYPE A:REFER 33-01
main90105-T0334i201506-202009
TYPE B:REFER 33-01
main90105-T0334i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33449BMAGNET, TRANSMISSION
main33449-60010i201506-202009
TYPE A:REFER 33-01
main33449-60010i201506-201807
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33449-60010i201506-202009
TYPE B:REFER 33-01
3512ABRACKET, TRANSMISSION BREATHER, NO.1
main3512A-0K010i201506-202005
main3512A-0K210i201808-202009
3512AABRACKET, TRANSMISSION BREATHER, NO.2
main3512A-0K030i201506-202005
main3512A-0K180i202001-202009
3512ABBRACKET, TRANSMISSION BREATHER, NO.3
main3512A-0K050i201506-202005
main3512A-0K220i201808-202009
3512ACBRACKET, TRANSMISSION BREATHER, NO.4
main3512A-0K170i201506-202009
8401
8410
90105T0039
main90105-T0039
90105T0070
main90105-T0070
90105T0119
main90105-T0119
90105T0335
main90105-T0335
90119T0225
main90119-T0225
90119T0226
main90119-T0226
90119T0501
main90119-T0501
9046707065
main90467-07065
9046907011
main90469-07011
9094901C99
main90949-01C99

41 parts on this diagram · 2 diagrams in section
