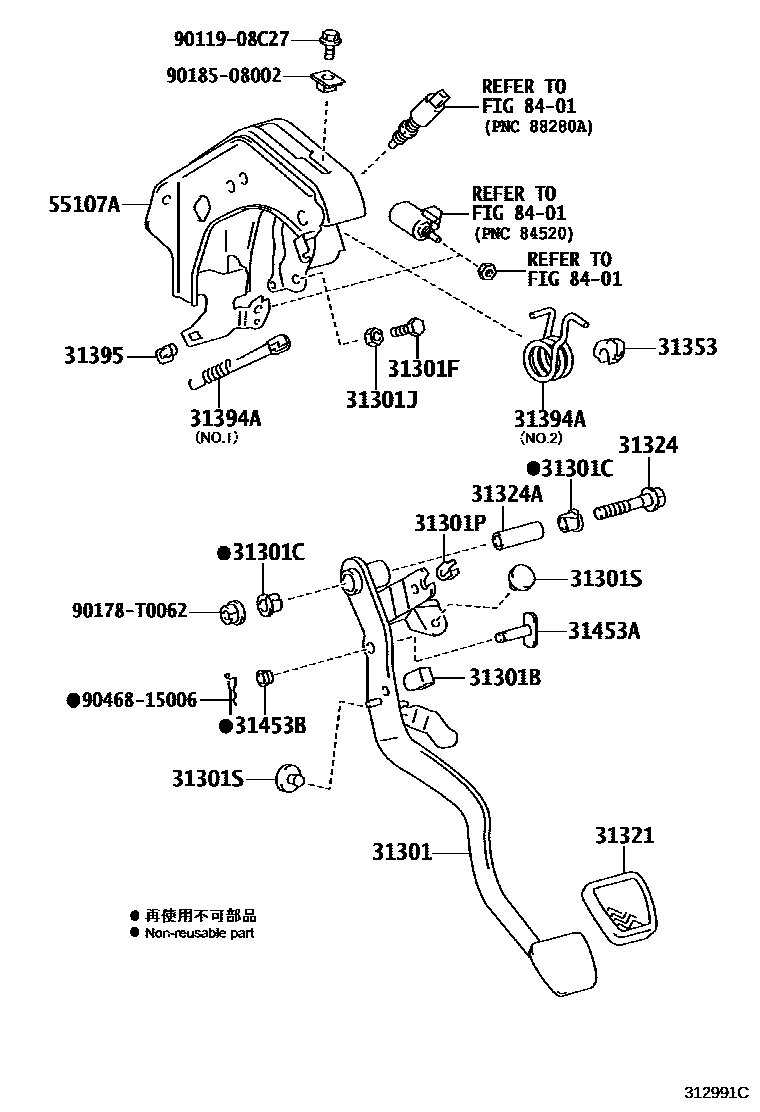

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
(J)
(L)
31301CBUSH(FOR CLUTCH PEDAL)
main90386-13015iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
main90170-T0011iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202004
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301SCUSHION, NO.2(FOR CLUTCH PEDAL)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31394ASPRING, PEDAL W/HOOK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
31395HOOK, PEDAL SPRING
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=31.9
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
8401
9011908C27
main90119-08C27
90178T0062
main90178-T0062
9018508002
main90185-08002
9046815006
main90468-15006
21 parts on this diagram · 4 diagrams in section
