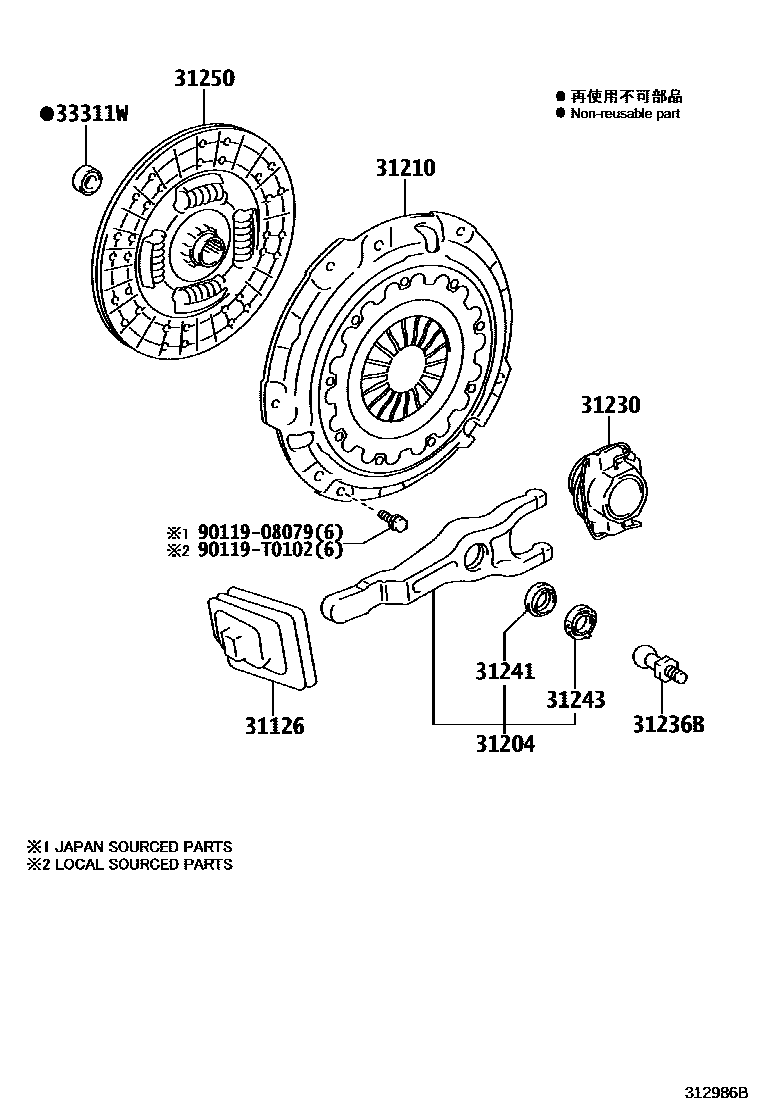

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K080iGUN135..SAXTR..X201506-202009

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K110iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main31204-0K110iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main31204-0K110iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

31210COVER ASSY, CLUTCH

main31210-0K280iGUN125,135..THDCB..6F201506-201710

sub31210-0K281

main31210-0K281iGUN125,135..THDCB..6F201711-202005

31230BEARING ASSY, CLUTCH RELEASE

main31230-71050iGUN125,135..6F201506-201805

TYPE B:REFER 33-01,TYPE A:REFER 33-01

sub31230-71051

main31230-71051iGUN135..SAXTR..X201806-201810

TYPE B:REFER 33-01,TYPE A:REFER 33-01

sub31230-71052

main31230-71052iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201810-202009

TYPE A:REFER 33-01

main31230-71052iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201810-202009

TYPE B:REFER 33-01

31236BSUPPORT, RELEASE FORK

main31236-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main31236-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main31236-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

31241SEAL, CLUTCH RELEASE FORK DUST

main31241-71010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main31241-71010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main31241-71010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

31243COLLAR, CLUTCH RELEASE FORK

main31243-0K010iGUN135..SAXTR..X201506-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main31243-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE A:REFER 33-01

main31243-0K010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

TYPE B:REFER 33-01

31250DISC ASSY, CLUTCH

main31250-0K280iGUN125,135..THDCB..6F201506-201712

sub31250-0K281

main31250-0K281iGUN125,135..THDCB..6F201801-202005

33311WBEARING (FOR INPUT SHAFT)

main90363-T0006iGUN135..SAXTR..X201506-202009

9011908079

main90119-08079

90119T0102

main90119-T0102

11 parts on this diagram · 2 diagrams in section
