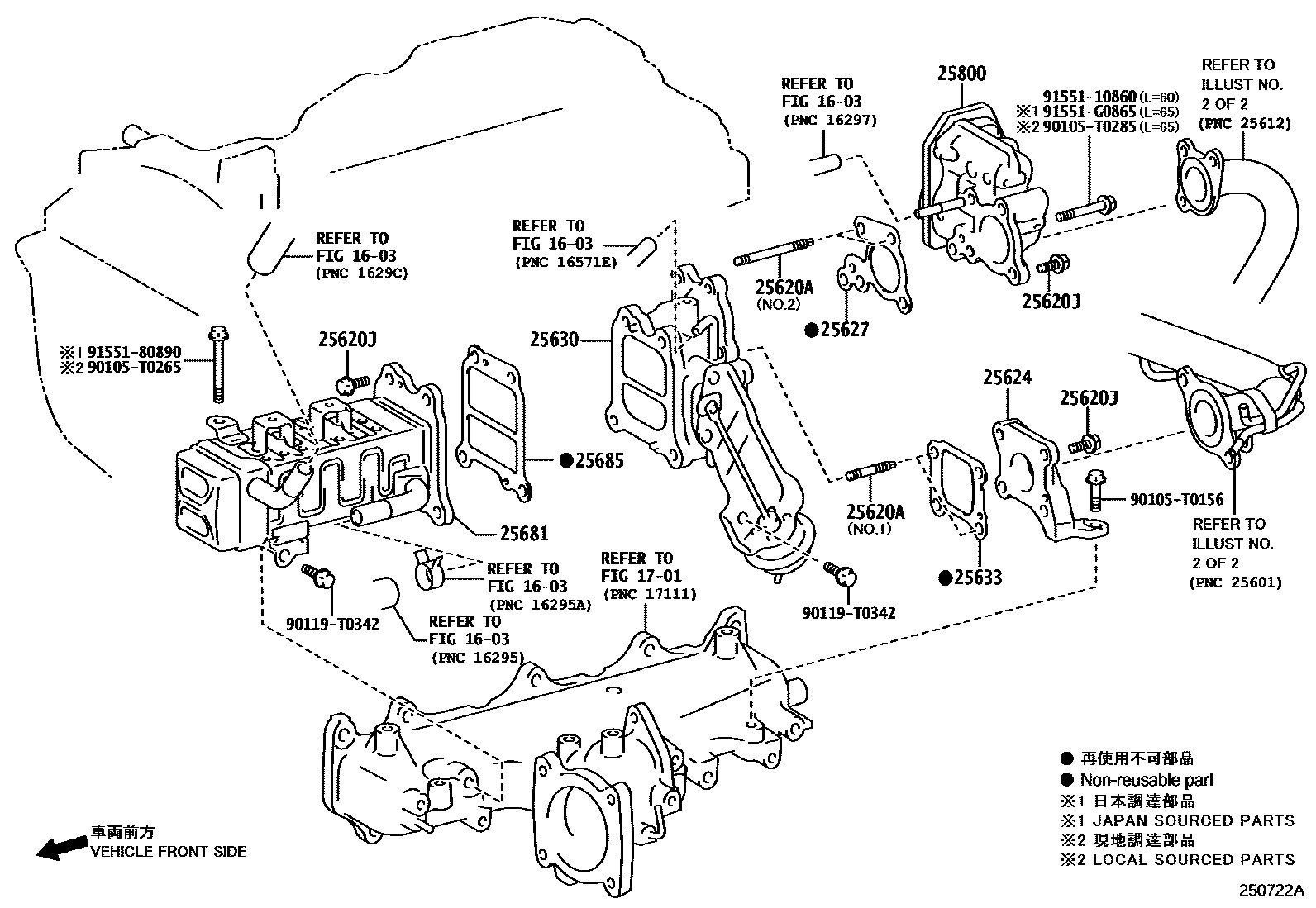

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25620ABOLT, STUD(FOR EGR VALVE)
NO.1
(L),NO.2
25620JBOLT(FOR EGR VALVE)
(L)
25624ADAPTER, EGR VALVE
THA SOURCED PARTS
RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25627GASKET, EGR VALVE
main25627-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
THA SOURCED PARTS
RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25630VALVE ASSY, EGR, NO.2
25633GASKET, EGR VALVE
THA SOURCED PARTS
RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25681COOLER, EGR, NO.1
main25681-0E010i2GDFTV..GUN125..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR201506-202005
THA SOURCED PARTS
25685GASKET, EGR COOLER, NO.1
THA SOURCED PARTS
RUSSIA & UKRAINE SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25800VALVE ASSY, ELECTRIC EGR CONTROL
(L)
90105T0156
main90105-T0156
90105T0265
main90105-T0265
90105T0285
main90105-T0285
90119T0342
main90119-T0342
9155110860
main91551-10860
9155180890
main91551-80890
91551G0865
main91551-G0865
18 parts on this diagram · 3 diagrams in section
