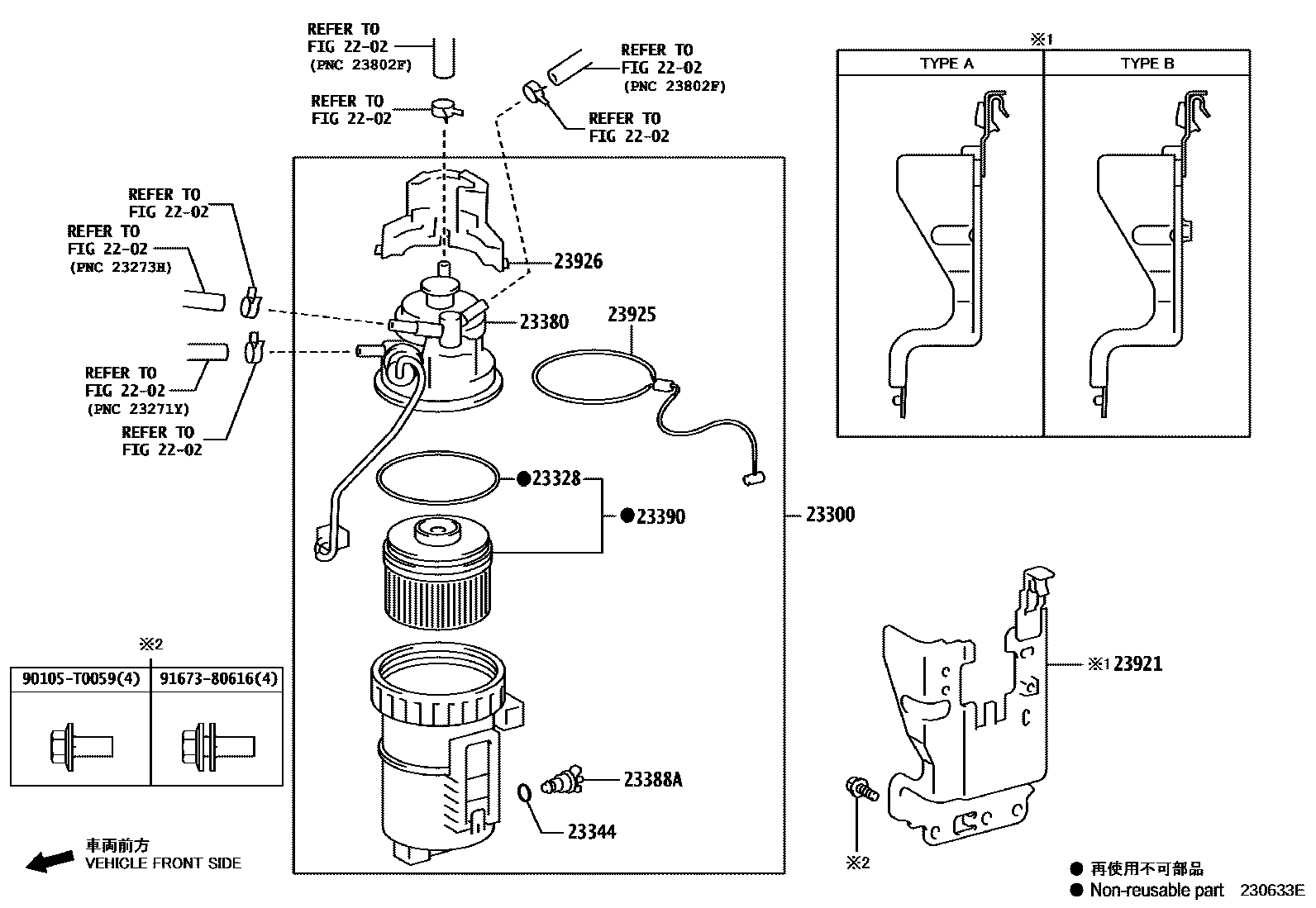

FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-0L090i1GDFTV,2GDFTV..GUN12#,135201506-201602

sub23300-0L091

main23300-0L091i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23300-0L091i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

main23300-0L091i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..THDCB..M;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN135..(SAXTR,THDCB)..(S,X)..DCRE201603-202009

23328GASKET(FOR FUEL FILTER)

main23344-0L070i1GDFTV,2GDFTV..GUN12#,135201506-202009

main23344-0L070i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23344-0L070i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i2GDFTV..GUN135..THDCB..S..HDCR201506-202009

main23344-0L041i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23344-0L041i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

23380CAP ASSY, FUEL FILTER

main23380-0L091i2GDFTV..GUN135..THDCB..S;2GDFTV..GUN135..SAXTR..X201603-202009

main23380-0L091i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23380-0L091i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i2GDFTV..GUN135..THDCB..S;2GDFTV..GUN135..SAXTR..X201506-202009

main23388-0L041i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23388-0L041i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

23390ELEMENT ASSY, FUEL FILTER

main23390-0L090i2GDFTV..GUN135..THDCB..S;2GDFTV..GUN135..SAXTR..X201506-202009

main23390-0L090i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23390-0L090i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

23921SUPPORT, FUEL FILTER

main23921-0L130i2GDFTV..GUN135..SADCB;2GDFTV..GUN125..LHD..SADCB..6F..M201708-202005

RUSSIA & UKRAINE SPEC,TYPE A:REFER ILLUST.

main23921-0L130i2GDFTV..GUN135..SADCB;2GDFTV..GUN125..LHD..SADCB..6F..M201708-201809

TURKEY SPEC(EURO 5 REGULATION),TYPE A:REFER ILLUST.

main23921-0L130i1GDFTV..GUN126..THDCB201708-202005

TYPE A:REFER ILLUST.

main23921-0L210i2GDFTV..GUN135..THDCB..S201708-201808

ISRAEL SPEC(EURO 6 REGULATION),TYPE B:REFER ILLUST.

main23921-0L210i1GDFTV..GUN126..THDCB;2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M201506-202009

TYPE B:REFER ILLUST.

main23921-0L210i2GDFTV..GUN135..THDCB..S201708-201808

TURKEY SPEC(EURO 6 REGULATION),TYPE B:REFER ILLUST.

main23921-0L210i2GDFTV..GUN135..THDCB..S201708-201808

UKRAINE SPEC(EURO 6 REGULATION),TYPE B:REFER ILLUST.

23925STAY, FUEL FILTER SUPPORT

main23925-0L020i2GDFTV..GUN135..THDCB..S;2GDFTV..GUN135..SAXTR..X201506-202009

main23925-0L020i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23925-0L020i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0L020i2GDFTV..GUN135..THDCB..S;2GDFTV..GUN135..SAXTR..X201506-202009

main23926-0L020i2GDFTV..GUN135..THDCB..S201807-201808

ISRAEL SPEC(EURO 6 REGULATION)

main23926-0L020i2GDFTV..GUN135..THDCB..S201807-201808

TURKEY SPEC(EURO 6 REGULATION)

90105T0059

main90105-T0059

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
