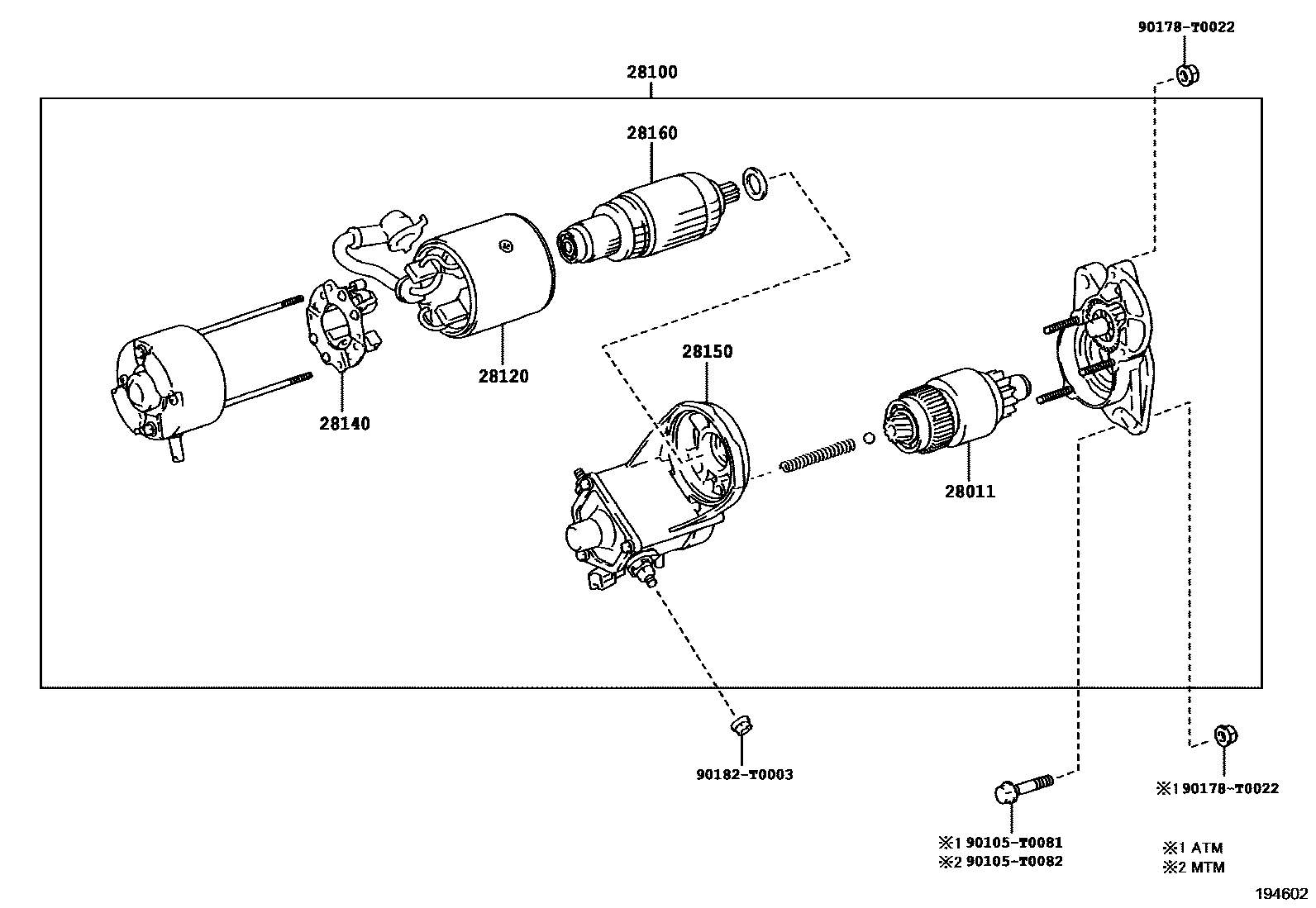

STARTER

0001 112V 2.7KW 0002 112V 2.4KW(DENSO),W(STOP & STA

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i2GDFTV..GUN135..SAXTR..X201506-202009

28100STARTER ASSY

main28100-0L052i2GDFTV..GUN135..SAXTR..X201506-202009

12V 2.7KW

28120YOKE ASSY, STARTER

main28120-0L050i2GDFTV..GUN135..SAXTR..X201506-202009

28140HOLDER ASSY, STARTER BRUSH

main28140-77090i2GDFTV..GUN135..SAXTR..X201506-202009

28150SWITCH ASSY, MAGNET STARTER

main28150-0L050i2GDFTV..GUN135..SAXTR..X201506-202009

28160ARMATURE ASSY, STARTER

main28160-54140i2GDFTV..GUN135..SAXTR..X201506-202009

90105T0081

main90105-T0081

90105T0082

main90105-T0082

90178T0022

main90178-T0022

90182T0003

main90182-T0003

10 parts on this diagram · 2 diagrams in section
