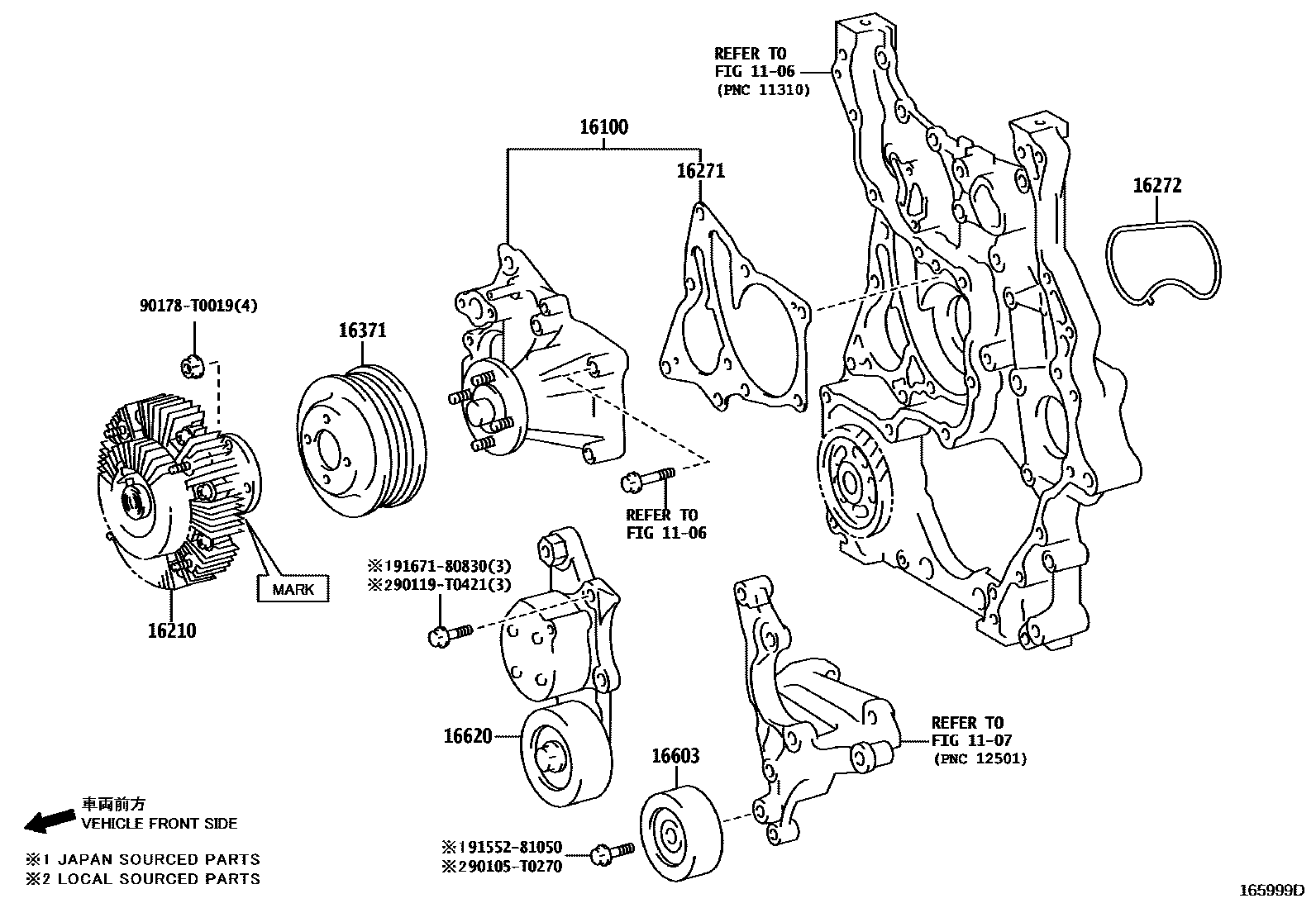

WATER PUMP

1106

1107

16100PUMP ASSY, ENGINE WATER

main16100-09710i1GDFTV,2GDFTV..GUN12#,135201506-201603

sub16100-09711

main16100-09711i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201603-202009

16210COUPLING ASSY, FLUID

main16210-0E010i2GDFTV..GUN135..6FC201608-201806

TURKEY SPEC(EURO 5 REGULATION),LIGHT GRAY

main16210-0E010i2GDFTV..GUN125..THDCB..6FC201506-201710

ISRAEL SPEC(EURO 5 REGULATION),LIGHT GRAY

main16210-0E020i1GDFTV..GUN126..THDCB201506-201905

GREEN

main16210-0E030i1GDFTV..GUN126..THDCB;2GDFTV..GUN125,135..DCRE201712-202009

LIGHT PURPLE

main16210-0E030i2GDFTV..GUN125..THDCB..6F201712-201810

RUSSIA & UKRAINE SPEC,LIGHT PURPLE

16271GASKET, WATER PUMP

main16271-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

MADE IN THAILAND

main16271-0E020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC,MADE IN INDIA

main16271-0E020i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

MADE IN INDIA

16272GASKET, WATER PUMP, NO.2

main16272-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

MADE IN THAILAND

main16272-0E020i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

MADE IN INDIA

main16272-0E020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC,MADE IN INDIA

16371PULLEY, FAN

main16371-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

MADE IN THAILAND

main16371-0E020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC,MADE IN INDIA

main16371-0E020i1GDFTV..GUN126201807-202005

MADE IN INDIA

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0C013i2GDFTV..GUN135..SAXTR..X201506-202009

MADE IN THAILAND

main16603-0E010i2GDFTV..GUN125..THDCB..6FC201506-201710

ISRAEL SPEC(EURO 5 REGULATION),WATER PROOF SPEC

main16603-0E010i2GDFTV..GUN135..6FC201608-201806

TURKEY SPEC(EURO 5 REGULATION),WATER PROOF SPEC

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

MADE IN THAILAND

main16620-0E020i2GDFTV..GUN135..6FC201608-201806

TURKEY SPEC(EURO 5 REGULATION),WATER PROOF SPEC

main16620-0E020i2GDFTV..GUN125..THDCB..6FC201506-201710

ISRAEL SPEC(EURO 5 REGULATION),WATER PROOF SPEC

90105T0270

main90105-T0270

90119T0421

main90119-T0421

90178T0019

main90178-T0019

9155281050

main91552-81050

9167180830

main91671-80830

14 parts on this diagram · 1 diagram in section
