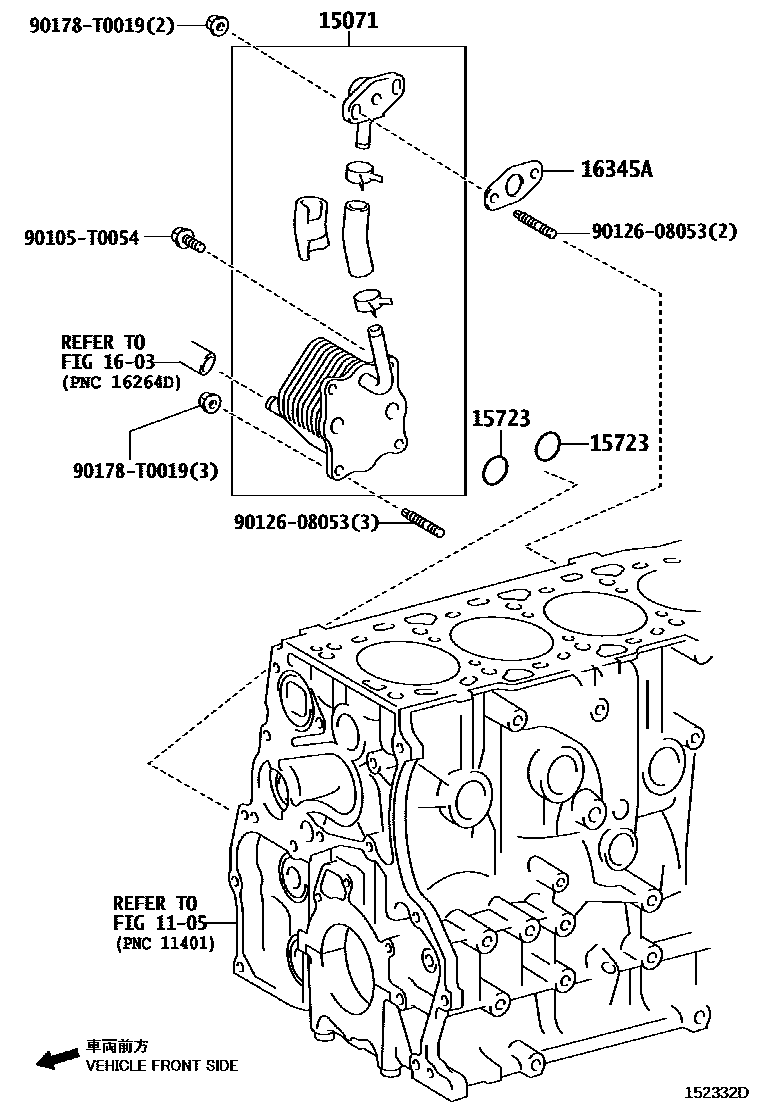

ENGINE OIL COOLER

1105

15071COOLER SET, ENGINE OIL

main15071-0E010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

sub15071-08010

main15071-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

sub15071-08010

15723RING, O

main90301-T0010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

main90301-T0010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

1603

16345AGASKET, WATER OUTLET PIPE

main16345-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main16345-0E020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

90105T0054

main90105-T0054

9012608053

main90126-08053

90178T0019

main90178-T0019

8 parts on this diagram · 1 diagram in section
