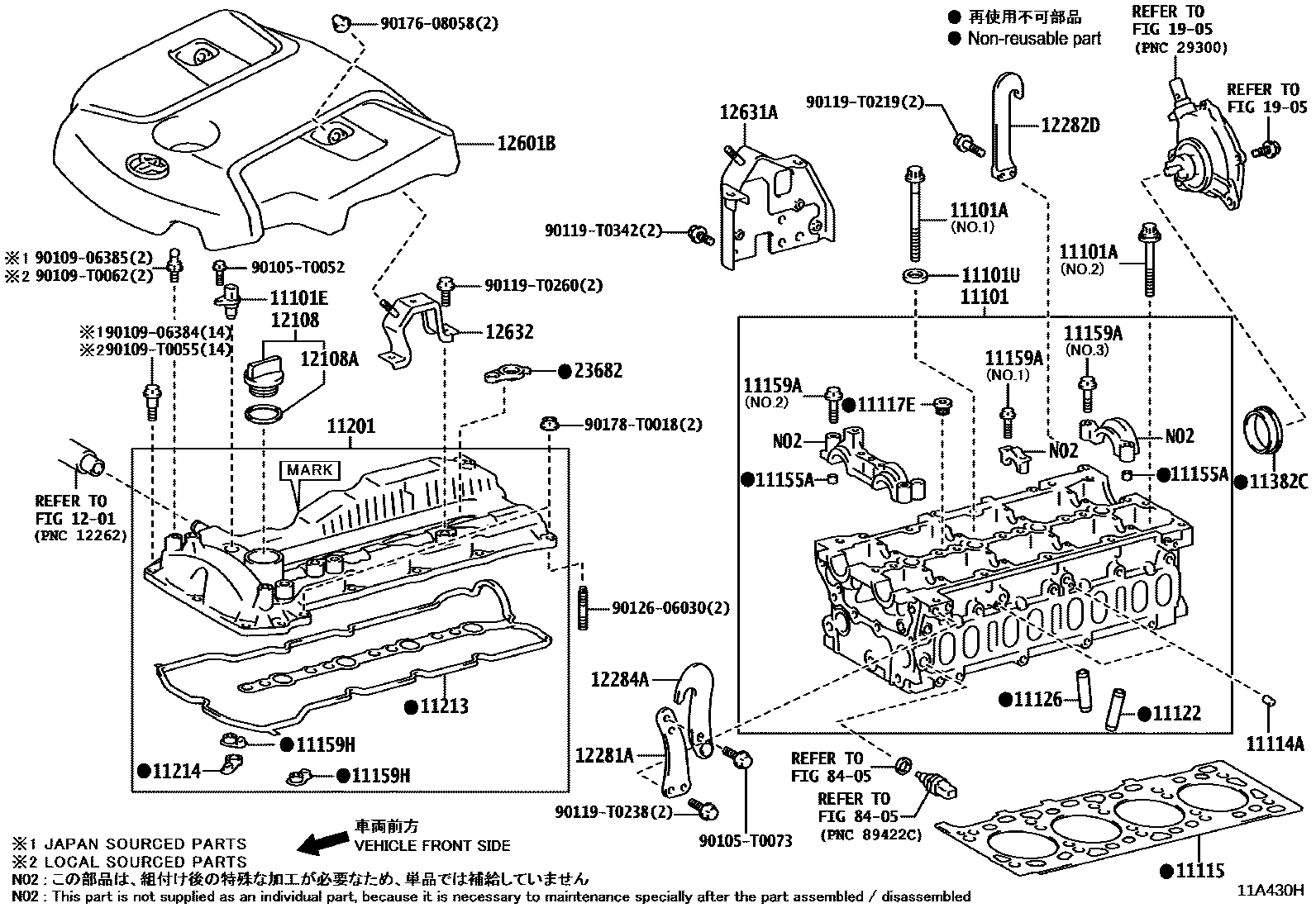

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202002

*582

sub11101-0E011¥120,000

main11101-0E011i2GDFTV..GUN135..DCRE;1GDFTV,2GDFTV..GUN12#¥120,000202003-202009

*582

main11101-0E020i1GDFTV..GUN126201807-202002

RUSSIA & UKRAINE SPEC

sub11101-0E021

main11101-0E021i2GDFTV..GUN125..6F..HDCR202003-202005

RUSSIA & UKRAINE SPEC

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-T2010i1GDFTV..GUN126201807-202005

NO.1

main90910-T2010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC,NO.1

main90910-T2010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

*582,NO.1

main90910-T2011i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

*582,NO.2

main90910-T2011i1GDFTV..GUN126201807-202005

NO.2

main90910-T2011i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC,NO.2

11101ESENSOR, CAM POSITION

main90919-05060i2GDFTV..GUN135..SAXTR..X¥4,130201506-202009

*582

main90919-05060i1GDFTV..GUN126¥4,130201807-202005

RUSSIA & UKRAINE SPEC

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-T0026i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main90560-T0026i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

11114APIN, STRAIGHT

main90250-T0011i2GDFTV..GUN135..SAXTR..X201506-202009

L=8,OD=5,*582

main90250-T0011i1GDFTV..GUN126201807-202005

L=8,OD=5

main90250-T0011i1GDFTV..GUN126201807-202005

L=8,OD=5,RUSSIA & UKRAINE SPEC

11115GASKET, CYLINDER HEAD

main11115-0E010-A0i2GDFTV..GUN135..SAXTR..X201506-202005

MARK A,(L)

sub11115-0E020¥8,200

main11115-0E010-B0i2GDFTV..GUN135..SAXTR..X201506-202005

MARK B,(L)

sub11115-0E020¥8,200

main11115-0E010-C0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE201506-202005

MARK C,(L)

sub11115-0E020¥8,200

main11115-0E010-D0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE201506-202005

MARK D,(L)

sub11115-0E020¥8,200

main11115-0E010-E0i2GDFTV..GUN135..SAXTR..X201506-202005

MARK E,(L)

sub11115-0E020¥8,200

main11115-0E020-A0i2GDFTV..GUN125,135..DCRE202007-202009

MARK A,(L),*582

main11115-0E020-A0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE202004-202007

MARK A,*582

main11115-0E020-B0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE202004-202007

MARK B,*582

main11115-0E020-B0i2GDFTV..GUN125,135..DCRE202007-202009

MARK B,(L),*582

main11115-0E020-C0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE202004-202007

MARK C,*582

main11115-0E020-C0i2GDFTV..GUN125,135..DCRE202007-202009

MARK C,(L),*582

main11115-0E020-D0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE202004-202007

MARK D,*582

main11115-0E020-D0i2GDFTV..GUN125,135..DCRE202007-202009

MARK D,(L),*582

main11115-0E020-E0i2GDFTV..GUN125,135..DCRE202007-202009

MARK E,(L),*582

main11115-0E020-E0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE202004-202007

MARK E,*582

main11115-11110i1GDFTV..GUN126¥10,000201807-202005

RUSSIA & UKRAINE SPEC,(J)

sub11115-11120¥6,200

main11115-11110i1GDFTV..GUN126¥10,000201807-202005

(J)

sub11115-11120¥6,200

main11115-11110-A0i2GDFTV..GUN135..SAXTR..X201506-202005

MARK A,(J)

sub11115-11120¥6,200

main11115-11110-B0i1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR201506-202005

MARK B,(J)

sub11115-11120¥6,200

main11115-11110-C0i1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR201506-202005

MARK C,(J)

sub11115-11120¥6,200

main11115-11110-D0i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE201506-202005

MARK D,(J)

sub11115-11120¥6,200

main11115-11110-E0i1GDFTV,2GDFTV..GUN12#..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..THDCB..DCRE;2GDFTV..GUN135..(SADCB,SASCB,THDCB)..HDCR201506-202005

MARK E,(J)

sub11115-11120¥6,200

main11115-11120-A0i2GDFTV..GUN125,135..DCRE202007-202009

MARK A,(J),*582

main11115-11120-B0i2GDFTV..GUN125,135..DCRE202007-202009

MARK B,(J),*582

main11115-11120-C0i2GDFTV..GUN125,135..DCRE202007-202009

MARK C,(J),*582

main11115-11120-D0i2GDFTV..GUN125,135..DCRE202007-202009

MARK D,(J),*582

main11115-11120-E0i2GDFTV..GUN125,135..DCRE202007-202009

MARK E,(J),*582

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-T0005i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main90341-T0005i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

11122BUSH, INTAKE VALVE GUIDE

main11122-30020i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB¥550201506-202009

O/S 0.05

main11123-30020i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB¥550201506-202009

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020i2GDFTV..GUN135..SAXTR..X¥550201506-202009

O/S 0.05

main11123-30020i2GDFTV..GUN135..SAXTR..X¥550201506-202009

STD

11155APIN, RING W/HEAD

main90253-11021i2GDFTV..GUN135..SAXTR..X¥120201506-202009

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0130i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

NO.3

main90105-T0130i2GDFTV..GUN135..SAXTR..X201506-202009

*582,NO.3

main90105-T0130i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC,NO.3

main90109-06080i2GDFTV..GUN135..SAXTR..X¥140201612-202009

(J),*582

main90109-06080i1GDFTV,2GDFTV..GUN12#,135¥140201506-201612

*582,NO.1

main90119-T0551i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

NO.1

main90119-T0551i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC,NO.1

main90119-T0551i2GDFTV..GUN135..SAXTR..X201612-202009

(L),*582

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-0E010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

main11159-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0E010i2GDFTV..GUN135..SAXTR..X201506-201903

MARK=11201-0E010

sub11201-0E011¥15,200

main11201-0E011i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB¥15,200201903-202009

MARK=11201-0E011

sub11201-0E012¥13,800

11213GASKET, CYLINDER HEAD COVER

main11213-0E010i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009

*582

main11213-0E010i2GDFTV..GUN125..THDCB..6F..HDCR201807-202005

RUSSIA & UKRAINE SPEC

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main11214-0E010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

11382CRETAINER, CAMSHAFT OIL SEAL

main11382-0E010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

main11382-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main12180-0H020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

main90080-43027i2GDFTV..GUN135..SAXTR..X201506-202009

*582

12281AHANGER, ENGINE, NO.1

main12281-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main12281-0E020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

12282DHANGER, ENGINE, NO.2

main12282-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

BLACK

12284AHANGER, ENGINE, NO.1 UPPER

main12284-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*231,*501,SILVER

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-0E010i2GDFTV..GUN135..SAXTR..X¥16,100201506-202005

main12601-0E030i2GDFTV..GUN125,135..DCRE¥7,200201905-202009

12631ABRACKET, ENGINE COVER

main12631-0E010i2GDFTV..GUN135..SAXTR..X201506-202005

*582

main12631-0E020i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

12632BRACKET, ENGINE COVER, NO.2

main12632-0E010i2GDFTV..GUN135..SAXTR..X¥1,200201506-202005

main12632-0E020i2GDFTV..GUN125,135..THDCB..DCRE¥490201905-202005

main12632-0E020i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE¥490201906-202009

MADE IN THAILAND

main12632-0E030i2GDFTV..GUN125,135..(SADCB,SASCB,SAXTR)..DCRE201906-202009

MADE IN SOUTH AFRICA

1905

23682GASKET, NOZZLE HOLDER

main23682-0E010i2GDFTV..GUN135..SAXTR..X201506-202009

*582

main23682-0E010i1GDFTV..GUN126201807-202005

RUSSIA & UKRAINE SPEC

8405

90105T0052

main90105-T0052

90105T0073

main90105-T0073

9010906384

main90109-06384¥80

9010906385

main90109-06385¥80

90109T0055

main90109-T0055

90109T0062

main90109-T0062

90119T0219

main90119-T0219

90119T0238

main90119-T0238¥80

90119T0260

main90119-T0260

90119T0342

main90119-T0342

9012606030

main90126-06030¥60

9017608058

main90176-08058¥100

90178T0018

main90178-T0018¥70

41 parts on this diagram · 2 diagrams in section
