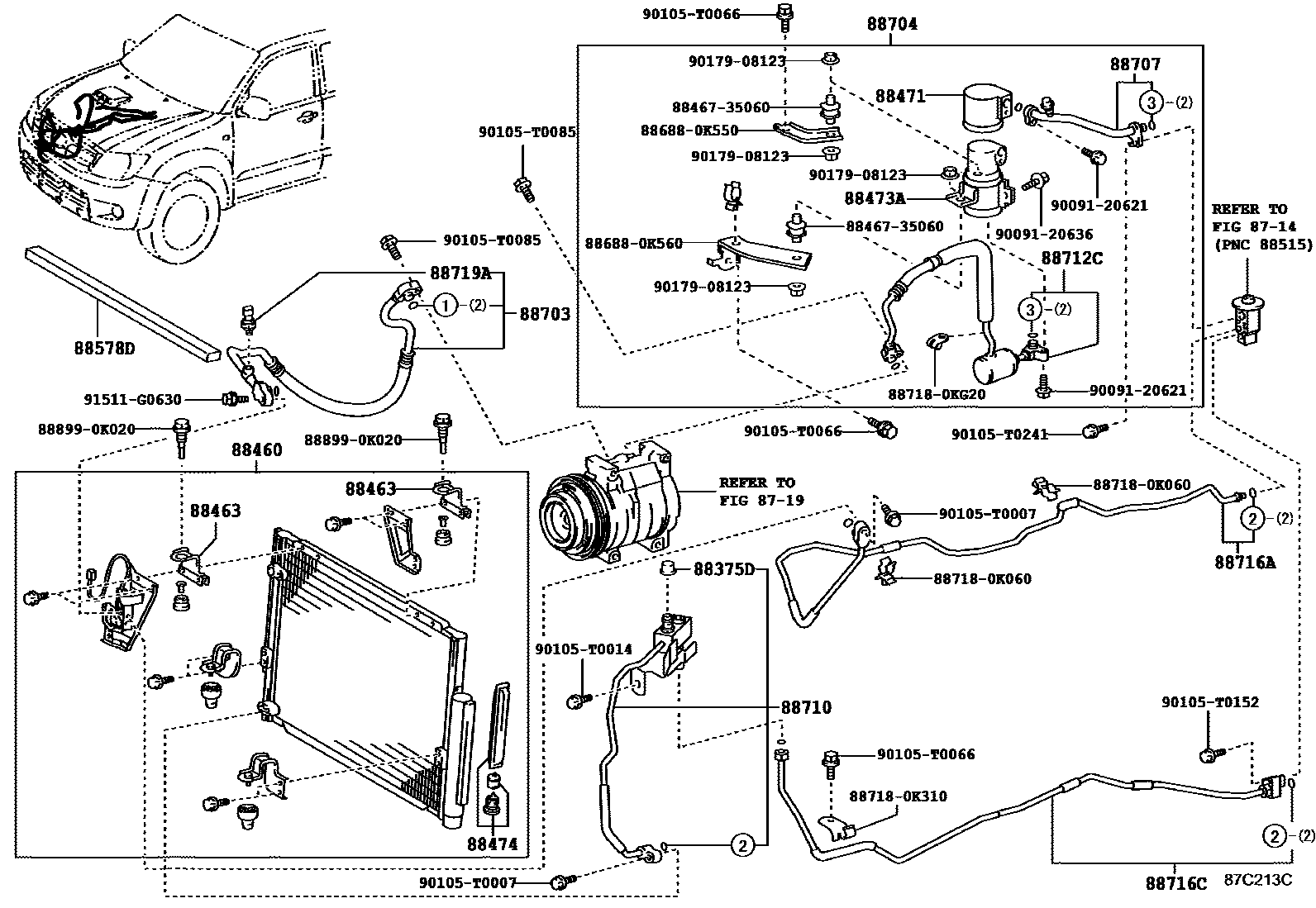

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1AUTO AIR CONDITIONER 0005 1AUTO AIR CONDITIONER 0006 1 0007 1 0008 1O-RING 0009 1O-RING

8714

8719

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iKUN25..FLD;KUN2#..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88375-30280iKUN35..(THDCB,XTR)..SR201408-201504

88460CONDENSER ASSY, COOLER

main88460-0K010iKUN26..THDCB201107-201504

main88460-0K050iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88460-0K050iKUN35..(THDCB,XTR)..SR201408-201504

main88460-0K080iKUN26..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main88460-0K120iKUN25..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88460-0K120iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

88463BRACKET, COOLER CONDENSER, NO.1

main88463-0K020iKUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88463-0K020iKUN35..(THDCB,XTR)..SR201408-201504

main88463-0K190iKUN26..RHD;KUN25..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88463-0K190iKUN26..RHD;KUN25..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main88463-0K190iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

88471TANK, RECEIVER AIR CONDITIONER

main88470-0K010iKUN35..(THDCB,XTR)..SR201408-201504

main88470-0K010iKUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88470-0K020iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88470-0K020iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

88473AHOLDER, RECEIVER

main88473-0K010iKUN35..(THDCB,XTR)..SR201408-201504

main88473-0K010iKUN25..FLD;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88473-0K020iKUN25..RHD..XTR201107-201504

main88473-0K030iKUN25..RHD..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

main88473-0K040iKUN25..LHD..DCB..SR201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88473-0K040iKUN26..LHD..5FC..DLX201310-201512

88474DRYER, COOLER

main88474-02220iKUN35..DCB..SR201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88474-02220iKUN26..RHD;KUN25..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main88474-02220iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

main88474-17010iKUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88474-17010iKUN35..(THDCB,XTR)..SR201408-201504

88578DPACKING, COOLER PIPE, NO.1

main88578-0K790iKUN2#,35..THDCB,THSCB,XTR201107-201504

88703HOSE SUB-ASSY, DISCHARGE

main88703-0K250iKUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88703-0K250iKUN35..(THDCB,XTR)..SR201408-201504

main88703-0K260iKUN25..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88703-0K260iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

88704HOSE SUB-ASSY, SUCTION

main88704-0K651iKUN26..THDCB201107-201504

main88704-0K662iKUN25..RHD..XTR201107-201504

main88704-0K673iKUN25..FLD;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88704-0K673iKUN35..(THDCB,XTR)..SR201408-201504

main88704-0K681iKUN26..RHD..SR201108-201512

main88704-0KC60iKUN26..LHD..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

88707PIPE SUB-ASSY, SUCTION

main88717-0KE01iKUN35..(THDCB,XTR)..SR201408-201504

main88717-0KE01iKUN25..FLD;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88717-0KE10iKUN25..LHD..DCB..SR201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88717-0KE10iKUN26..LHD..5FC..DLX201310-201512

main88717-0KE20iKUN25..RHD..XTR201107-201504

main88717-0KE30iKUN25..RHD..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

88710TUBE ASSY, AIR CONDITIONER

main88710-0K010iKUN26..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main88710-0K020iKUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88710-0K020iKUN35..(THDCB,XTR)..SR201408-201504

main88710-0K030iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88710-0K030iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

main88710-0K040iKUN26..THDCB201107-201504

88712CHOSE, SUCTION

main88712-0K861iKUN25..LHD..DCB..SR201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88712-0K861iKUN26..LHD..5FC..DLX201310-201512

main88712-0K890iKUN25..RHD..XTR201107-201504

main88712-0KA00iKUN35..(THDCB,XTR)..SR201408-201504

main88712-0KA00iKUN25..FLD;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88712-0KA40iKUN25..RHD..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0K151iKUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88716-0K151iKUN35..(THDCB,XTR)..SR201408-201504

main88716-0K161iKUN25..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88716-0K161iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-0KD11iKUN25..RHD..XTR201107-201504

main88716-0KD22iKUN25..FLD;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88716-0KD22iKUN35..(THDCB,XTR)..SR201408-201504

main88716-0KD31iKUN25..RHD..SCB..SR201108-201512

main88716-0KD42iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88716-0KD42iKUN26..LHD..5FC..DLX201310-201512

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88719-33020iKUN35..(THDCB,XTR)..SR201408-201504

main88719-40020iKUN25..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88719-40020iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201310-201512

8846735060CUSHION, COOLER CONDENSER, NO.1

main88467-35060

886880K550BRACKET, COOLER DIAPHRAGM

main88688-0K550

886880K560BRACKET, COOLER DIAPHRAGM

main88688-0K560

887180K060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0K060

887180K310PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0K310

887180KG20PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0KG20

888990K020COVER, EVAPORATOR

main88899-0K020

9009120621

main90091-20621

9009120636

main90091-20636

90105T0007

main90105-T0007

90105T0014

main90105-T0014

90105T0066

main90105-T0066

90105T0085

main90105-T0085

90105T0152

main90105-T0152

90105T0241

main90105-T0241

9017908123

main90179-08123

91511G0630

main91511-G0630

34 parts on this diagram · 9 diagrams in section
