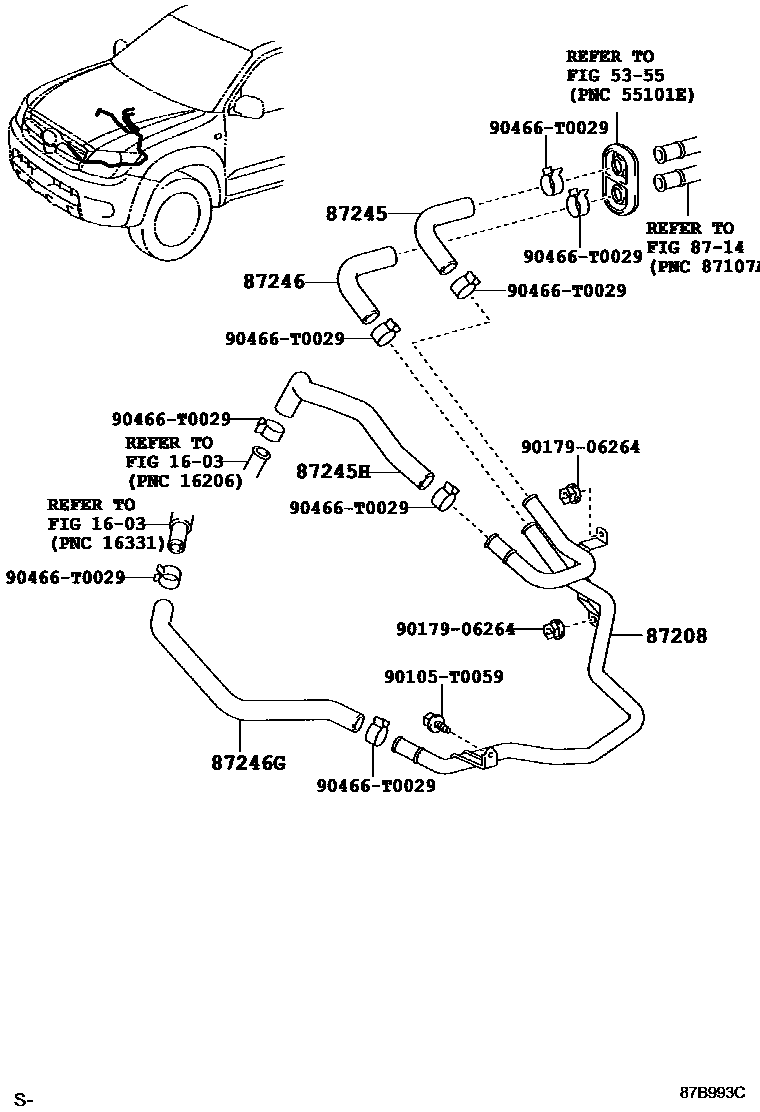

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1W(VISCOUS HEATER)

1603

5355

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-0K140iKUN2#,35201107-201512

87245HOSE, HEATER WATER, INLET

main87245-0K300iKUN2#,35201107-201512

87245HHOSE, HEATER WATER, INLET H

main87245-0K860supersedes 87245-0K860iKUN35..DCB,SCB,THSCB;KUN25..LHD..(SCB,THSCB);KUN35..(THDCB,XTR)..DLX;KUN2#..LHD..(DCB,THDCB,XTR)..5F..DLX..EUR201107-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main87245-0K750iKUN25..LHD..DCB..DLX..CBU201210-201512

MOROCCO SPEC

main87245-0K760iKUN25..THDCB..DLX..CBU201208-201512

MOROCCO SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER

87246HOSE, HEATER WATER, OUTLET

main87245-0K300iKUN2#,35201107-201512

87246GHOSE, HEATER WATER, OUTLET G

main87245-0K750supersedes 87245-0K780iKUN25..LHD..(DCB,THDCB)..DLX..CBU201107-201512

RUSSIA & UKRAINE SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER

90105T0059

main90105-T0059

9017906264

main90179-06264

90466T0029

main90466-T0029

11 parts on this diagram · 2 diagrams in section
