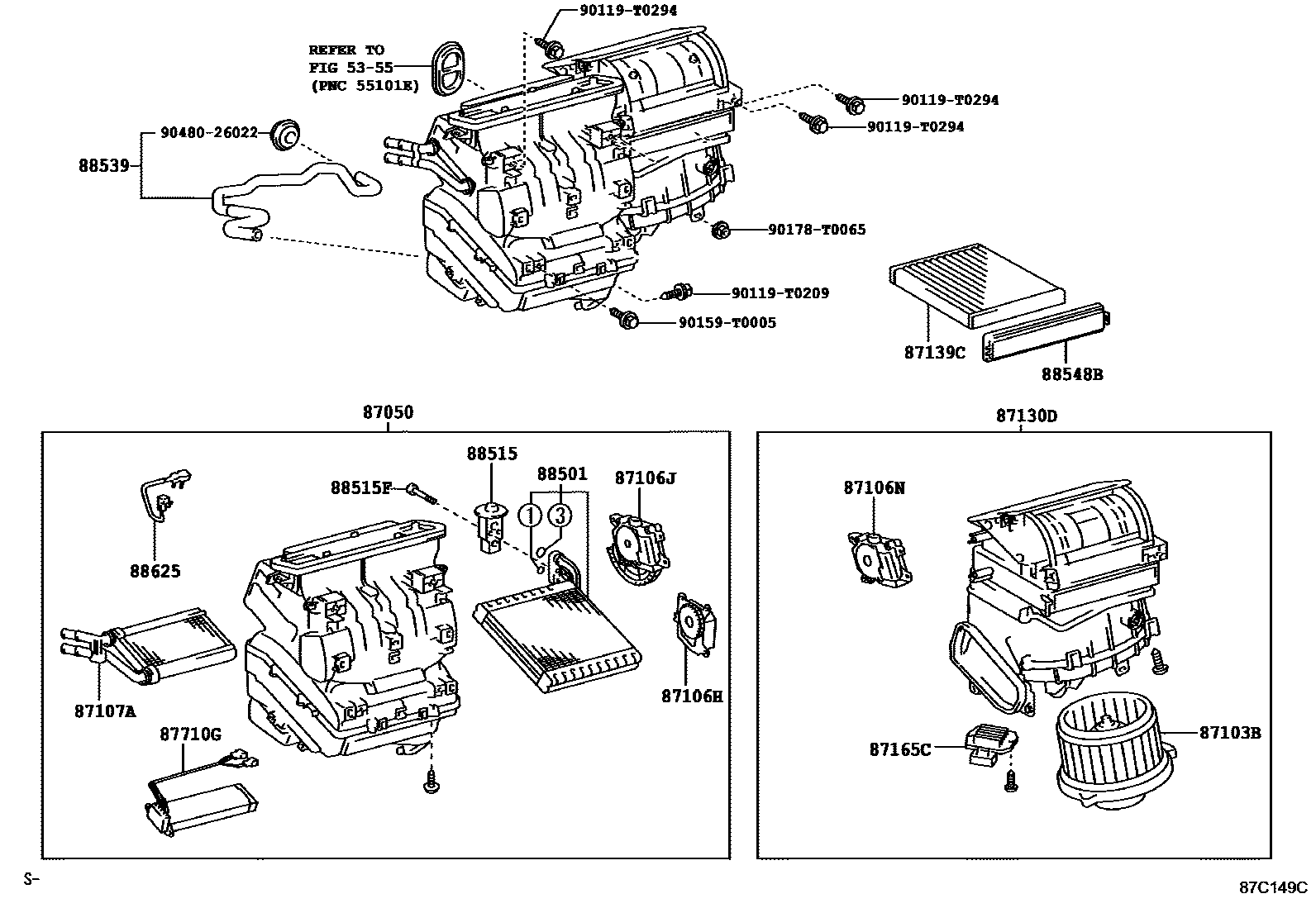

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1MANUAL AIR CONDITIONER 0006 1MANUAL AIR CONDITIONER 0007 1MANUAL AIR CONDITIONER 0008 1MANUAL AIR CONDITIONER 0009 1MANUAL HEATER 0012 1MANUAL HEATER 0013 1O-RING 0014 1O-RING

5355

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0K272supersedes 87050-0K272iKUN25..RHD..DCB..SR;KUN2#..RHD..(DCB,SCB)..DLX201108-201512

main87050-0K282supersedes 87050-0K262iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main87050-0K422supersedes 87050-0K412iKUN25..FLD;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main87050-0K452iKUN25..RHD..XTR201107-201504

main87050-0K492iKUN26..THDCB201107-201504

main87050-0K711iKUN26..LHD..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main87050-0K721iKUN26..RHD..SR201108-201512

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02460iKUN2#..RHD..(DCB,SCB)201108-201512

main87103-02470iKUN2#,35..LHD..(DCB,SCB)201108-201512

main87103-0K200iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201504

main87103-0K210iKUN25..RHD..XTR201107-201504

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02360iKUN26..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main87106-0K100iKUN26..THDCB201107-201504

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02370iKUN26..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main87106-0K070iKUN26..THDCB201107-201504

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02380iKUN26..RHD..SR201108-201512

main87106-02400iKUN26..LHD..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main87106-0K060iKUN26..THDCB201107-201504

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02210iKUN26..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main87107-02290iKUN25,35..THDCB,THSCB,XTR201107-201504

main87107-0K010iKUN26..THDCB201107-201504

main87107-0K050iKUN26..DLX;KUN25,35..DCB,SCB201108-201512

87130DBLOWER ASSY

main87130-0K103iKUN25..RHD..XTR201107-201504

main87130-0K113iKUN25,35..LHD..(THDCB,THSCB,XTR)201107-201504

main87130-0K141iKUN26..RHD..DLX;KUN25..RHD..(DCB,SCB)201108-201512

main87130-0K151iKUN26..LHD..DLX;KUN25,35..LHD..(DCB,SCB)201108-201512

main87130-0K220iKUN26..THDCB201107-201504

main87130-0K400iKUN26..LHD..DCB..SR201108-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main87130-0K410iKUN26..RHD..SR201108-201512

87139CFILTER, CLEAN AIR

main87139-50100iKUN2#,35201107-201512

*DPF

main87139-52020iKUN2#,35201107-201512

STANDARD

87165CCONTROL, BLOWER MOTOR

main87165-71020iKUN26..SR201107-201512

87710GQUICK HEATER ASSY

main87710-0K061iKUN25..RHD..XTR201107-201504

main87710-0K071iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201504

main87710-0K081iKUN2#..RHD..(DCB,SCB)201108-201512

main87710-0K091iKUN2#,35..LHD..(DCB,SCB)201108-201512

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K090supersedes 88501-0K090iKUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub88501-0K091

main88501-12510supersedes 88501-12510iKUN26..RHD;KUN25..DCB..SR;KUN26..LHD..SR;KUN25..RHD..SCB;KUN25..RHD..DCB..DLX;KUN26..LHD..5FC..DLX201509-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

88515VALVE, COOLER EXPANSION

main88515-0K100iKUN26..THDCB201203-201504

main88515-0K170iKUN25,35..DCB..SR201108-201109

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

main88515-0K190supersedes 88515-0K190iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88515-0K200supersedes 88515-0K200iKUN25..FLD;KUN25..RHD..XTR;KUN25..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main88515-0K530iKUN26..DCB..SR201110-201512

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2supersedes 90099-04542iKUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

main90099-04597×2supersedes 90099-04597iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub90068-04062

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0K010iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201504

main88539-0K030iKUN2#,35..LHD..(DCB,SCB)201108-201512

main88539-0K050iKUN25..RHD..XTR201107-201504

main88539-0K070iKUN2#..RHD..(DCB,SCB)..5F201108-201512

main88539-0K290iKUN26..RHD..5FC201108-201512

88548BCASE, AIR FILTER

main88548-0K010iKUN2#..RHD201107-201512

main88548-0K020iKUN2#,35..LHD201107-201512

88625THERMISTOR, COOLER, NO.1

main88620-02110supersedes 88620-02110iKUN25..FLD;KUN25..RHD..XTR;KUN2#..(THDCB,XTR)..SR..EUR201107-201504

AIR CONDITIONER-SINGLE AIR CONDITIONER

sub88620-0D150

main88625-02110supersedes 88625-02110iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

AIR CONDITIONER-SINGLE AIR CONDITIONER

90119T0209

main90119-T0209

90119T0294

main90119-T0294

90159T0005

main90159-T0005

90178T0065

main90178-T0065

9048026022

main90480-26022

22 parts on this diagram · 11 diagrams in section
