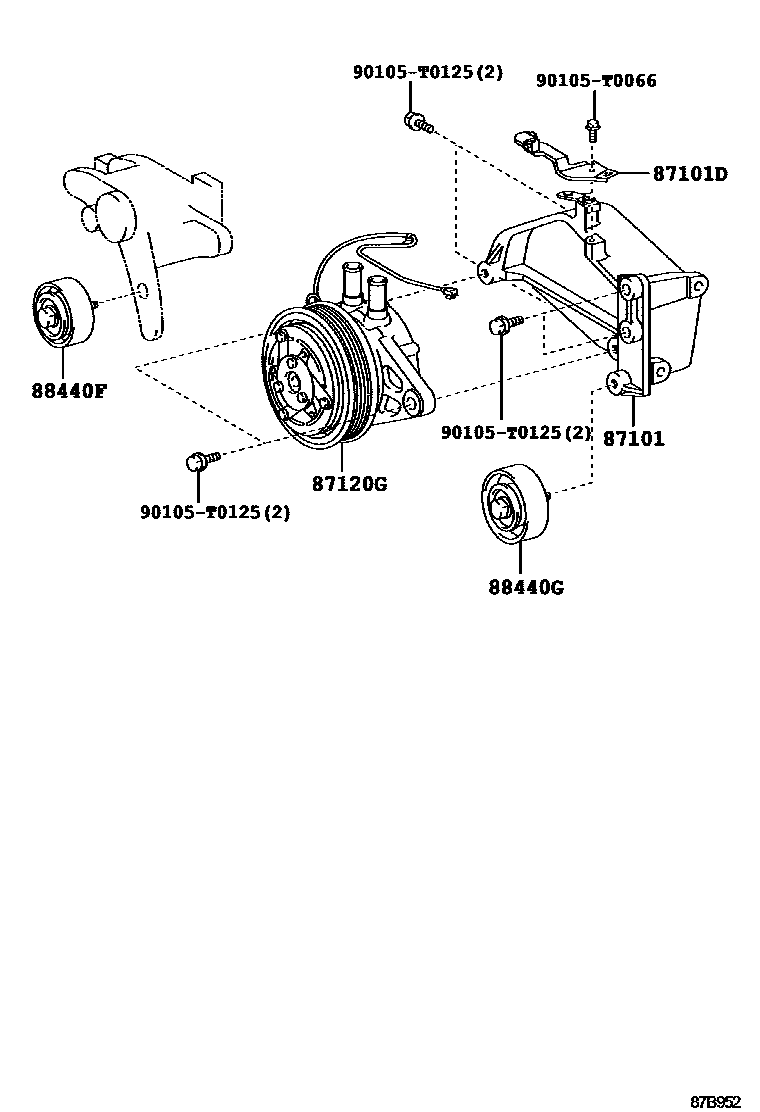

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87101BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-0K010iKUN35..(THDCB,XTR)..SR201107-201512

87101DBRACKET SUB-ASSY, VISCOUS HEATER NO.2

main87101-0K050iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201107-201512

87120GHEATER ASSY, VISCOUS W/MAGNET CLUTCH

main87120-0K010iKUN35..DCB,SCB,THSCB;KUN25..LHD..(SCB,THSCB);KUN35..(THDCB,XTR)..DLX;KUN2#..LHD..(DCB,THDCB,XTR)..5F..DLX..EUR201107-201512

88440FPULLEY ASSY, IDLE NO.1

main88440-0K010iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX..EUR¥9,600201107-201504

main88440-0K030iKUN25..RHD..SCB..SR;KUN26..LHD..5FC..DLX201108-201512

88440GPULLEY ASSY, IDLE NO.2

main88440-0K060iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX..EUR¥9,600201107-201504

main88440-0K070iKUN35..DCB,SCB;KUN25..LHD..SCB;KUN2#..LHD..DCB..5F..DLX201108-201512

90105T0066

main90105-T0066

90105T0125

main90105-T0125¥140

7 parts on this diagram · 1 diagram in section
