MIRROR

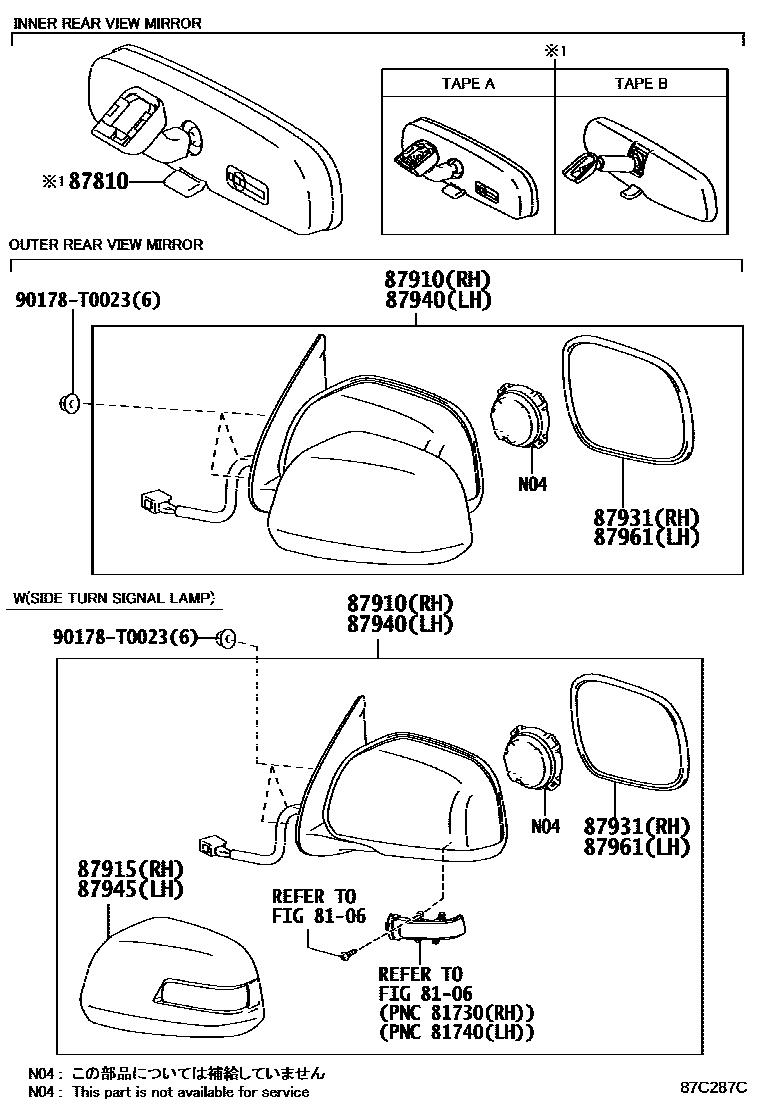

Parts diagram

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041i201107-201112

main87810-AA011i201112-201305

TYPE B:REFER ILLUST.

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0K870i201107-201512

PLATED

main87910-0KA10i201108-201512

PLATED

main87910-0KA20i201107-201512

NO PAINT REQ.

main87910-0KA30i201107-201512

NO PAINT REQ.

main87910-0K890i201210-201512

NO PAINT REQ.,POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

main87910-0KA60i201107-201512

PLATED,RUSSIA & UKRAINE SPEC

87915COVER, OUTER MIRROR, RH

main87915-0K190i201107-201512

PLATED

main87915-0K250i201107-201512

PLATED,RUSSIA & UKRAINE SPEC

87931OUTER MIRROR, RH

main87931-0K870i201107-201512

main87931-0K890i201107-201512

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0K730i201107-201512

PLATED

main87940-0K770i201108-201512

PLATED

main87940-0K780i201107-201512

NO PAINT REQ.

main87940-0K790i201107-201512

NO PAINT REQ.

main87940-0K750i201107-201210

NO PAINT REQ.,POWER DOOR LOCK-WITH

main87940-0K820i201107-201512

PLATED,RUSSIA & UKRAINE SPEC

87945COVER, OUTER MIRROR, LH

main87945-0K190i201107-201512

PAINT REQ.

main87945-0K250i201107-201512

PLATED,RUSSIA & UKRAINE SPEC

87961MIRROR OUTER, LH

main87961-0K730i201107-201512

main87961-0K750i201107-201512

90178T0023

main90178-T0023

9 parts on this diagram · 1 diagram in section
