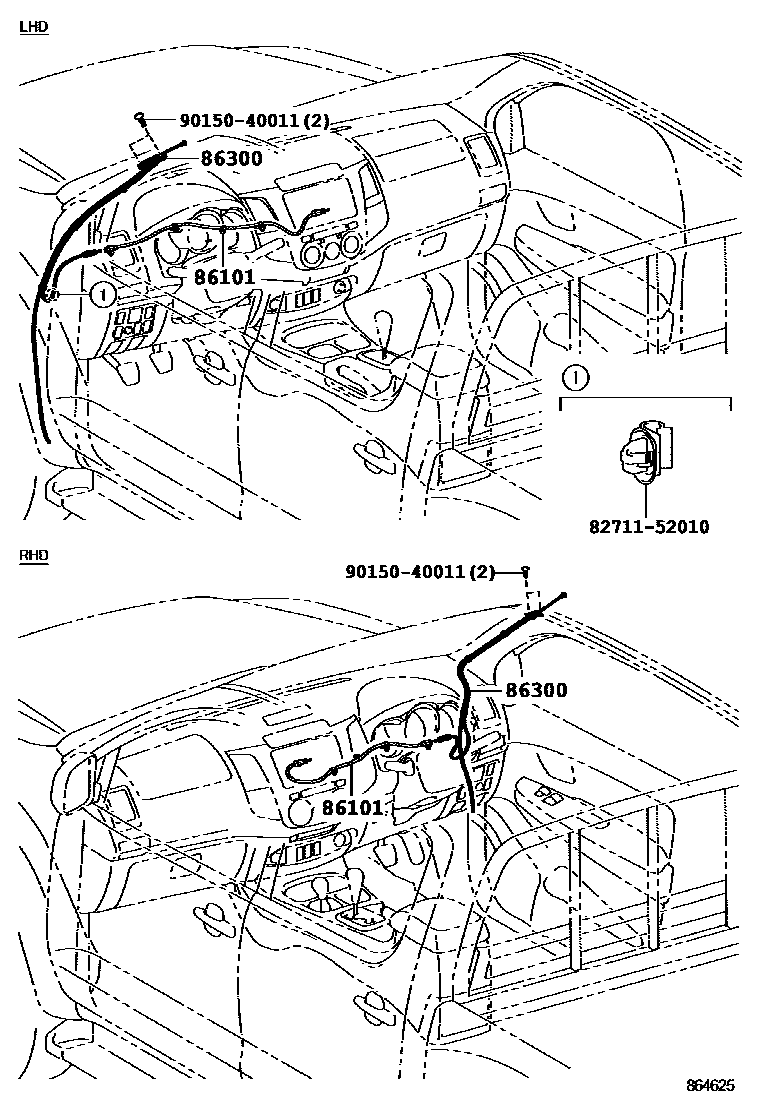

ANTENNA

0001 1PILLAR ANTENNA 0002 1POLE ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0K270iKUN2#,35..LHD..(THDCB,XTR)201107-201504

main86101-0K320iKUN25..RHD..XTR201107-201504

main86101-0K340iKUN2#..RHD..DCB201108-201512

main86101-0K450iKUN2#,35..LHD..DCB201108-201512

main86101-0K550iKUN25,35..LHD..SCB201108-201512

main86101-0K560iKUN25,35..THSCB201107-201208

main86101-0K600iKUN25,35..LHD..SCB201210-201512

main86101-0K610iKUN25,35..THSCB201208-201504

86300ANTENNA ASSY, W/HOLDER

main86300-0K010iKUN25,35..SCB201108-201512

main86300-0K050iKUN25,35..THSCB201107-201504

main86300-71030iKUN25,35..XTR201107-201207

sub86300-71080

main86300-71050iKUN2#,35..DCB,THDCB201107-201207

sub86300-71090

main86300-71080iKUN25,35..XTR201208-201504

main86300-71090iKUN2#,35..DCB,THDCB201208-201512

8271152010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52010

9015040011

main90150-40011

4 parts on this diagram · 2 diagrams in section
