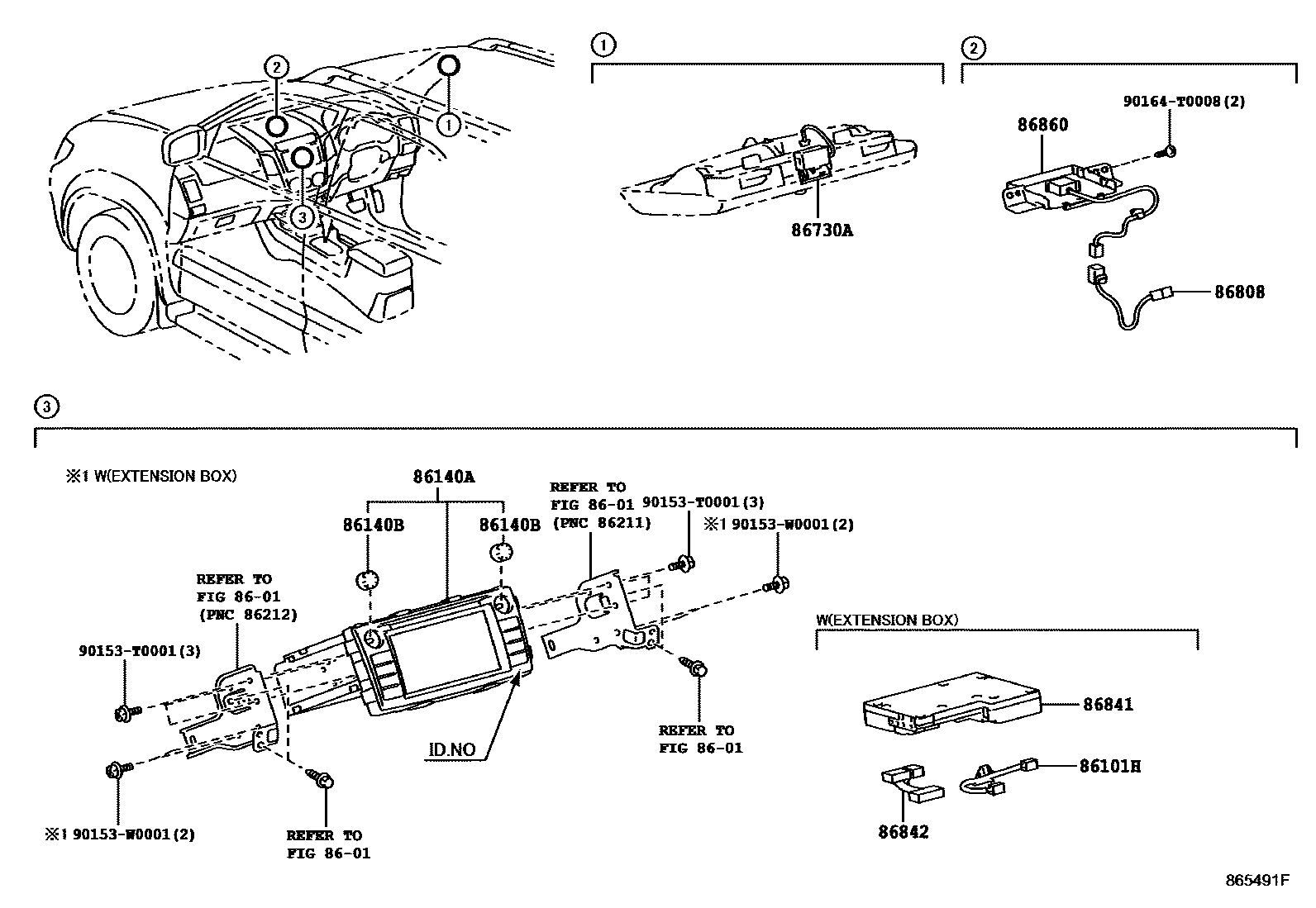

NAVIGATION & FRONT MONITOR DISPLAY
8601
86101HCORD SUB-ASSY, ANTENNA
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC,ID=57028
PANASONIC,ID=57028,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
PANASONIC,ID=57027
PANASONIC,ID=57027,MULTI INFORMATION DISPLAY-WITH&AUDIO-*DA(EXTRA) & CD & 6SEPAKER& RDS
PANASONIC,ID=57027,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
FUJITSU TEN,ID100251
FUJITSU TEN,ID100251,MULTI INFORMATION DISPLAY-WITH&AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
FUJITSU TEN,ID100251,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
FUJITSU TEN,ID100250,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
FUJITSU TEN,ID100250
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
MULTI INFORMATION DISPLAY-WITH&AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
MULTI INFORMATION DISPLAY-WITH&AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
86730AMICROPHONE ASSY, TELEPHONE
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
86841COMPUTER, NAVIGATION
main86840-0W010
main86840-0W011
main86840-02011
main86840-02012
main86840-0W012
main86840-0W013
main86840-02013
main86840-02014
86842WIRE, NAVIGATION, NO.1
main86842-12010
86860ANTENNA ASSY, NAVIGATION
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
90153T0001
main90153-T0001
90153W0001
main90153-W0001
90164T0008
main90164-T0008
12 parts on this diagram · 1 diagram in section
