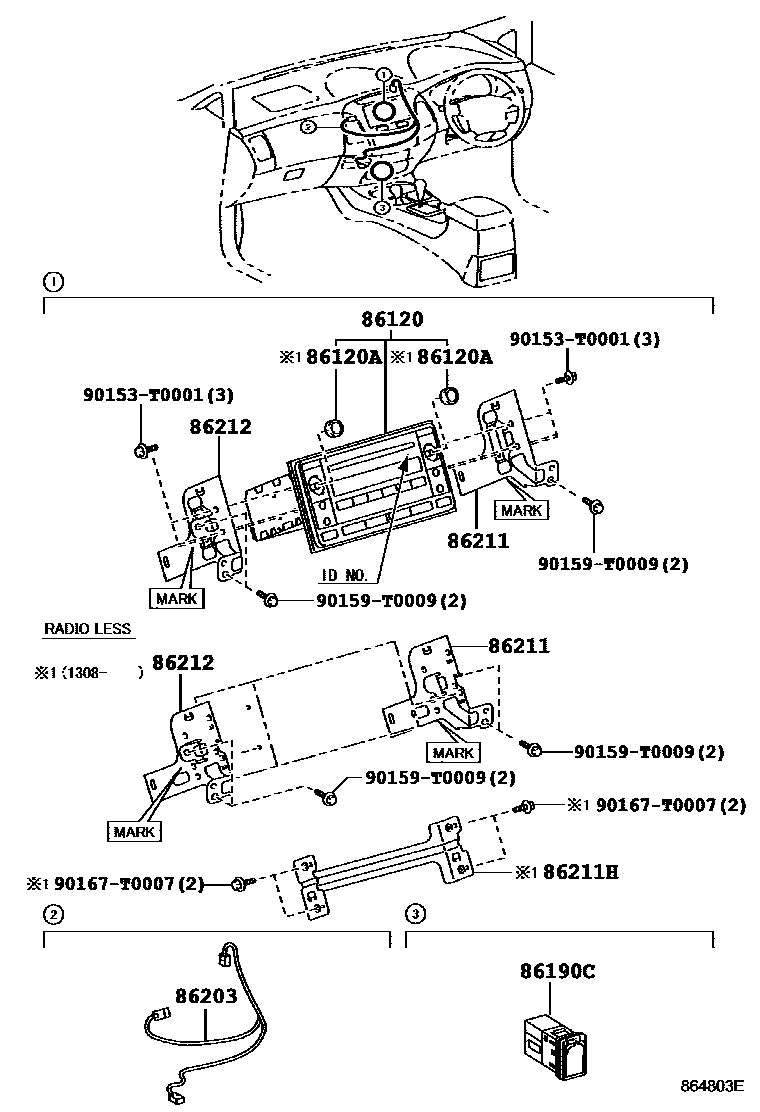

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-0K490iKUN25..DLX..FLD201111-201208

FUJITSU TEN,ID100009,TYPE A:REFER ILLUST.

main86120-0K550iKUN25..DLX..FLD201208-201308

PANASONIC,ID=53874,TYPE A:REFER ILLUST.

main86120-0KC11iKUN25..DLX..FLD201308-201504

FUJITSU TEN,ID100305,TYPE B:REFER ILLUST.

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25246iKUN25..DLX..FLD201308-201504

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0K010iKUN25,35..(THDCB,XTR)..SR..EUR201107-201310

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

main86190-0K030iKUN26..DCB..SR201308-201512

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

main86190-0K030iKUN35..(THDCB,XTR)..SR201408-201512

86203WIRE, RADIO

main86203-71020iKUN26..RHD..SR201108-201310

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

main86203-71060iKUN25,35..(THDCB,XTR)..SR..EUR201107-201310

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

main86203-71090iKUN25..RHD..DCB..SR201310-201512

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

main86203-71100iKUN25,35..LHD..DCB..SR201308-201512

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

main86203-71100iKUN35..(THDCB,XTR)..SR201408-201512

86211BRACKET, RADIO, NO.1

main86211-0K030iKUN26..SR201107-201512

AUDIO-WITHOUT(AUDIO) & 4SPEAKER,MARK=CR

main86211-0K030iKUN35..(THDCB,XTR)..SR201107-201512

MARK=CR

main86211-0K030iKUN26..LHD..DCB..SR201410-201512

AUDIO-WITHOUT(AUDIO) & 6SPEAKER,MARK=CR

main86211-0K040iKUN25,35..DCB..SR201107-201310

MARK=DR

main86211-0K040iKUN25,35..DCB..SR201107-201310

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS,MARK=DR

main86211-0K070iKUN25..DLX..FLD201111-201308

MARK=YR

main86211-0K090iKUN25,35..DCB..SR201308-201512

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS,MARK=IR

main86211-0K090iKUN25..FLD;KUN26..THDCB201308-201512

MARK=IR

86211HBRACKET, RADIO, NO.2

main86211-0K110iKUN35..(THDCB,XTR)..SR201308-201408

main86211-0K110iKUN26..LHD..DCB..SR201410-201512

AUDIO-WITHOUT(AUDIO) & 6SPEAKER

main86211-0K110iKUN35..(THDCB,THSCB,XTR)..DLX;KUN25..LHD..(THDCB,THSCB,XTR)..EUR201308-201512

AUDIO-WITHOUT(AUDIO) & 4SPEAKER

86212BRACKET, RADIO, NO.2

main86212-0K030iKUN25,35..(THDCB,THSCB,XTR)..EUR201107-201310

MARK=CL

main86212-0K030iKUN25,35..(THDCB,THSCB,XTR)..EUR201107-201310

AUDIO-WITHOUT(AUDIO) & 4SPEAKER,MARK=CL

main86212-0K040iKUN26..DCB..SR201107-201310

MARK=DL

main86212-0K040iKUN26..THDCB;KUN25..SR..FLD201107-201310

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS,MARK=DL

main86212-0K070iKUN25..DLX..FLD201111-201308

MARK=YL

main86212-0K090iKUN26..DCB..SR201308-201512

AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS,MARK=IL

main86212-0K090iKUN25,35..DCB..SR201308-201512

MARK=IL

main86212-0K100iKUN26..THDCB201308-201512

AUDIO-WITHOUT(AUDIO) & 4SPEAKER,MARK=CL

main86212-0K100iKUN35..(THDCB,XTR)..SR201308-201512

MARK=CL

main86212-0K100iKUN26..LHD..DCB..SR201410-201512

AUDIO-WITHOUT(AUDIO) & 6SPEAKER,MARK=CL

90153T0001

main90153-T0001

90159T0009

main90159-T0009

90167T0007

main90167-T0007

10 parts on this diagram · 2 diagrams in section
