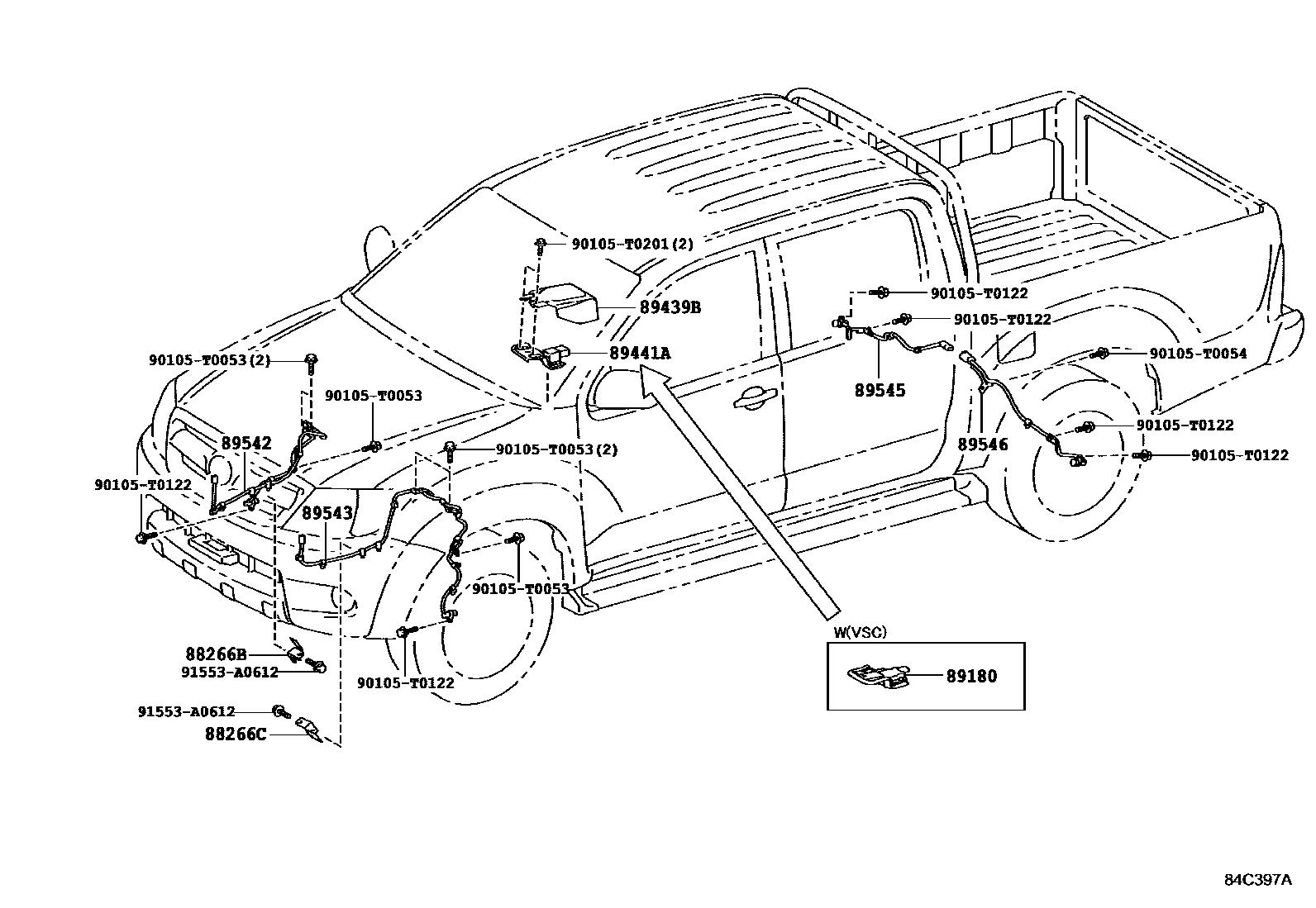

ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iKUN2#,35201107-201512

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K030iKUN2#,35201107-201512

89180SENSOR ASSY, YAWRATE

main89180-71010iKUN26..DLX201108-201512

89439BBRACKET, SENSOR

main89439-0K030iKUN2#,35201107-201512

(L)

main89439-71020iKUN2#,35201107-201512

(J)

89441ASENSOR, DECELERATION

main89440-71030iKUN25,35;KUN26..SR201107-201210

main89440-71030iKUN2#,35..THDCB,THSCB,XTR201210-201410

LABEL=89441-60030

89542SENSOR, SPEED, FRONT RH

main89542-0K020iKUN2#,35..THDCB,THSCB,XTR201107-201410

main89542-71010iKUN26..DLX201108-201512

89543SENSOR, SPEED, FRONT LH

main89543-0K020iKUN2#,35..THDCB,THSCB,XTR201107-201410

main89543-71010iKUN26..DLX201108-201512

89545SENSOR, SPEED, REAR RH

main89545-0K070iKUN2#,35..THDCB,THSCB,XTR201107-201410

main89545-71030iKUN26..DLX201108-201512

89546SENSOR, SPEED, REAR LH

main89546-0K070iKUN2#,35..THDCB,THSCB,XTR201107-201410

main89546-71030iKUN26..DLX201108-201512

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

90105T0201

main90105-T0201

91553A0612

main91553-A0612

14 parts on this diagram · 1 diagram in section
