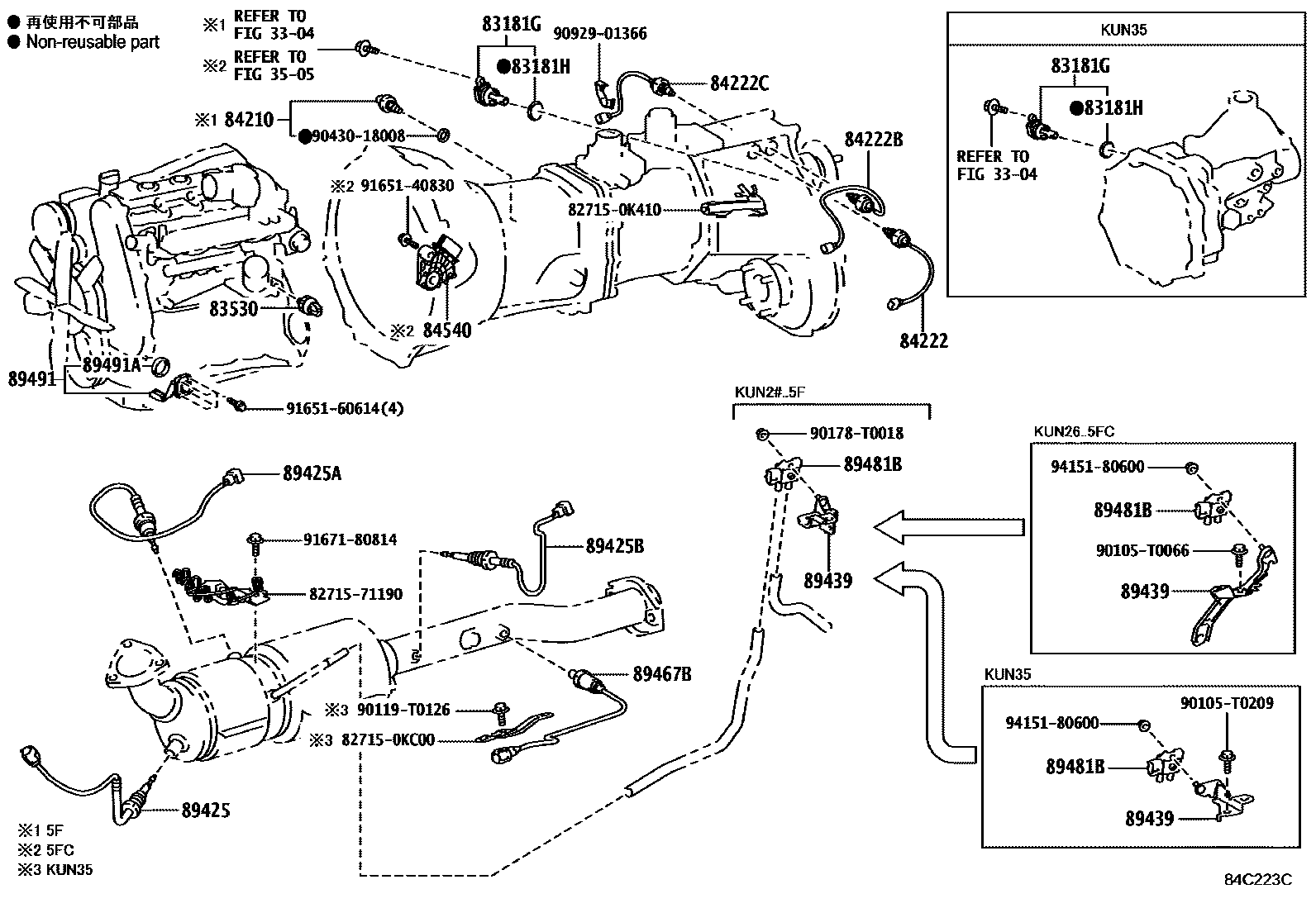

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1STEERING 0009 1SEAT 0010 1DOOR,ROOF & FLOOR

3304

3505

83181GSENSOR, SPEEDOMETER

main83181-12020iKUN2#,35201107-201512

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iKUN2#,35201107-201512

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN2#,35201107-201512

DENSO

main83530-60010iKUN2#,35201107-201512

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN2#,35..5F201107-201512

TYPE D:REFER 33-01

main84210-0K010iKUN2#,35..5F201107-201512

TYPE C:REFER 33-01

main84210-52050iKUN2#,35..(THDCB,THSCB,XTR)..5F201107-201504

TYPE B:REFER 33-01

main84210-71010iKUN25,35..(THDCB,THSCB,XTR)..DLX..EUR201308-201408

TIRE & DISC WHEEL-225/70R17 6J

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080iKUN2#201107-201512

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iKUN26..5FC201107-201512

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35110iKUN2#201107-201512

84540SWITCH ASSY, NEUTRAL START

main84540-04010iKUN26..5FC201309-201512

(L)

main84540-71010iKUN26..5FC201309-201512

(J)

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71010iKUN2#,35201107-201512

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71020iKUN2#,35201107-201512

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71030iKUN2#..5F201107-201512

main89425-71040iKUN35201107-201512

main89425-71050iKUN26..5FC201107-201512

89439BRACKET, SENSOR

main89439-0K040iKUN2#..5F201107-201202

main89439-0K041iKUN2#..5F201202-201512

main89439-71030iKUN26..5FC201107-201512

main89439-71040iKUN35201107-201512

89467BSENSOR, AIR FUEL RATIO

main89467-71090iKUN35201107-201512

main89467-71100iKUN2#201107-201512

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-12050iKUN2#,35201107-201512

89491SENSOR, ENGINE OIL LEVEL

main89491-26081iKUN2#,35201107-201512

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iKUN2#,35201107-201512

827150K410BRACKET,WIRING HARNESS CLAMP

main82715-0K410

827150KC00BRACKET,WIRING HARNESS CLAMP

main82715-0KC00

8271571190BRACKET,WIRING HARNESS CLAMP

main82715-71190

90105T0066

main90105-T0066

90105T0209

main90105-T0209

90119T0126

main90119-T0126

90178T0018

main90178-T0018

9043018008

main90430-18008

9092901366

main90929-01366

9165140830

main91651-40830

9165160614

main91651-60614

9167180814

main91671-80814

9415180600

main94151-80600

31 parts on this diagram · 10 diagrams in section
