BATTERY & BATTERY CABLE

0001 11-BATTERY 0002 12-BATTERY 0003 12-BATTERY

28800BATTERY

main28800-0L010i1KDFTV..KUN26..THDCB201107-201504

80D26L,GS

main28800-0L030i2KDFTV..KUN25,35..THDCB,THSCB,XTR201107-201504

105D31L,GS

main28800-0L120i1KDFTV..KUN26..THDCB201107-201504

80D26L,YUASA

main28800-0L150i2KDFTV..KUN25,35..THDCB,THSCB,XTR201107-201212

105D31L,FURUKAWA

sub28800-0L151

main28800-0L151i2KDFTV..KUN25,35..THDCB,THSCB,XTR201301-201504

105D31L,FURUKAWA

main28800-0L360i1KDFTV..KUN26..THDCB201107-201504

80D26L,PANASONIC

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i1KDFTV,2KDFTV..KUN2#,35201107-201512

TYPE A:REFER ILLUST.

main90982-05066i1KDFTV,2KDFTV..KUN2#,35201107-201512

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0K030i1KDFTV..KUN26;2KDFTV..KUN25,35..DCB,SCB201107-201512

main82821-0K030i2KDFTV..KUN25,35..THDCB,THSCB,XTR201107-201504

P/N LABEL=828210K030

main82821-0K070i2KDFTV..KUN25,35..THDCB,THSCB,XTR201107-201504

P/N LABEL=828210K070

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1KDFTV,2KDFTV..KUN2#,35201107-201512

28897PLATE, BATTERY CAUTION

main28897-54030i1KDFTV..KUN26..DCB201108-201512

TYPE B:REFER ILLUST.

28898PLATE, BATTERY

main28898-0L010i2KDFTV..KUN25,35;1KDFTV..KUN26..THDCB201107-201512

90178T0019

main90178-T0019

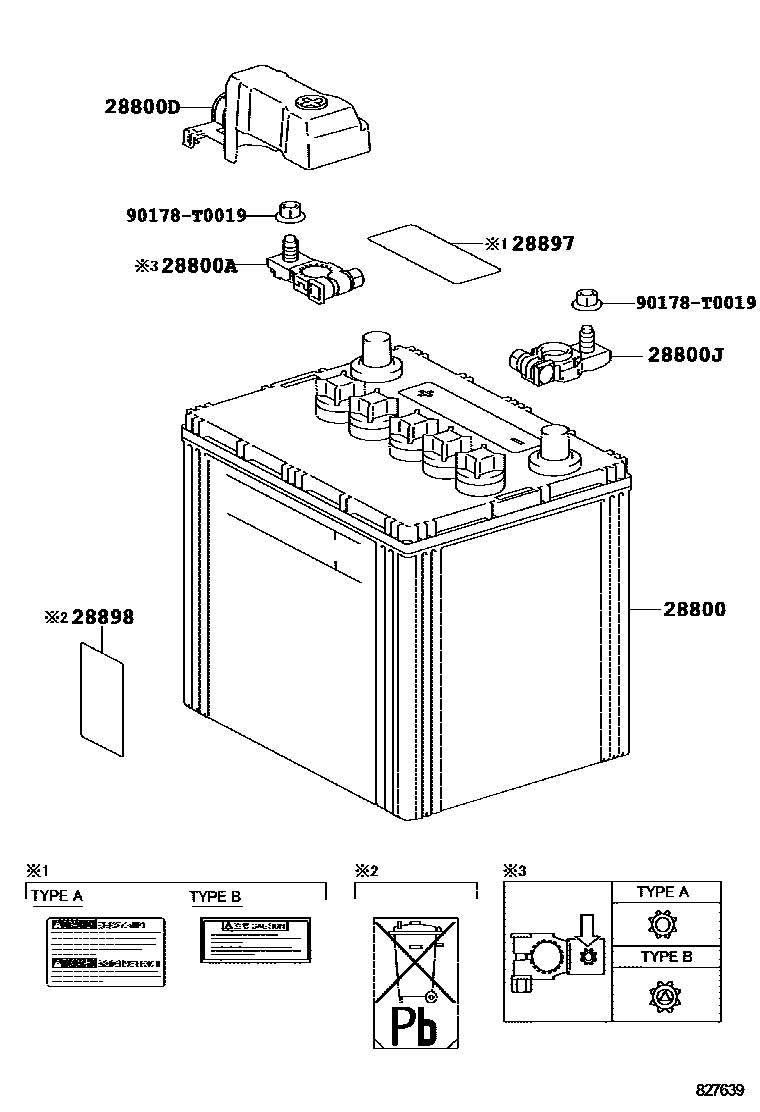

7 parts on this diagram · 3 diagrams in section
