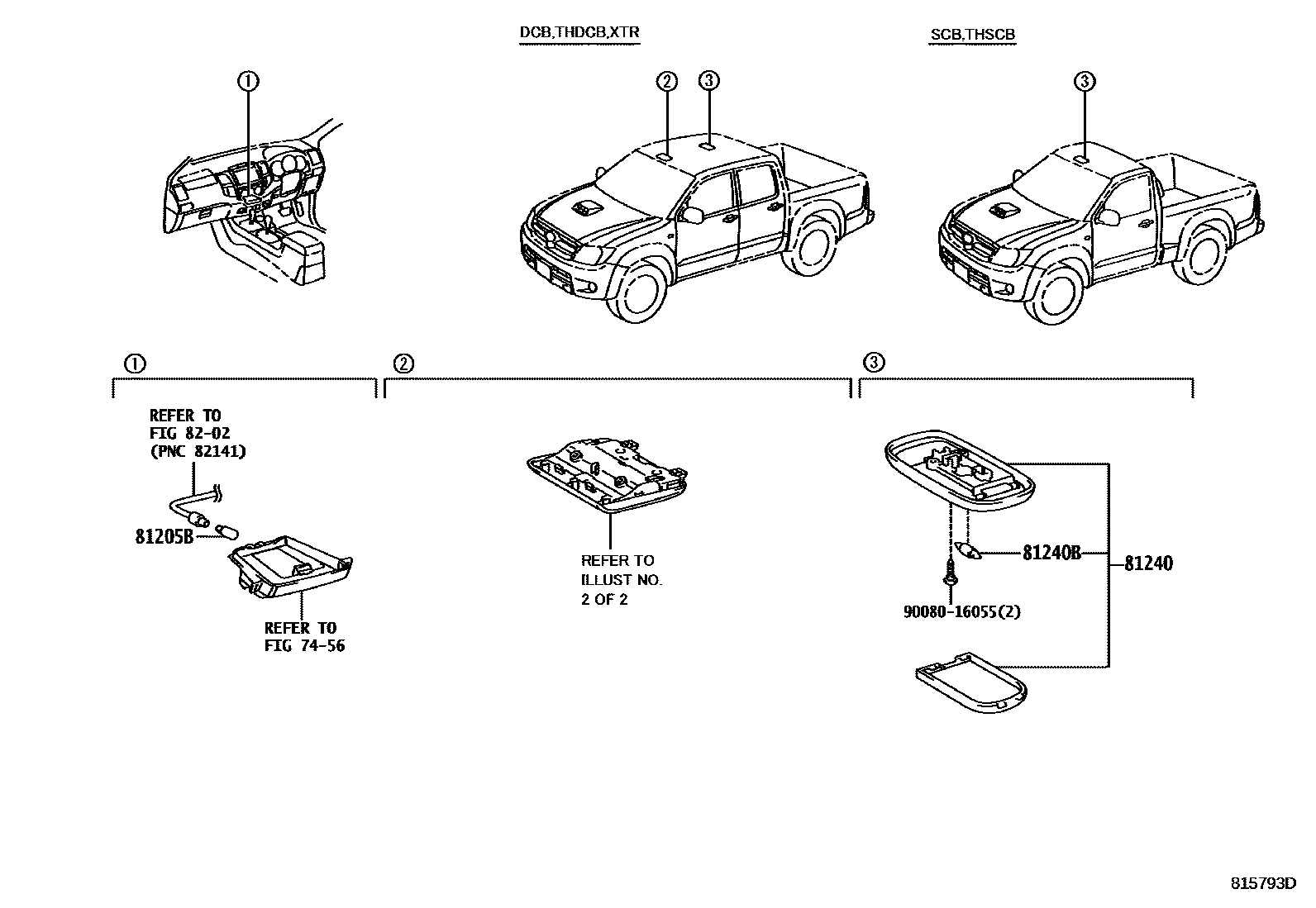

INTERIOR LAMP

0001 1 0002 1

7456

81205BBULB, ASH RECEPTACLE LAMP

main90981-TB001iKUN26;KUN25,35..(DCB,THDCB,XTR)..SR201107-201512

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-0K010-B0iKUN2#,35201107-201512

LT.GRAY,TRIM1#,2#

sub81240-0K010

81240BBULB, ROOM LAMP, NO.1

main90981-14011iKUN2#,35201107-201512

12V 8W

8202

9008016055

main90080-16055

6 parts on this diagram · 2 diagrams in section
