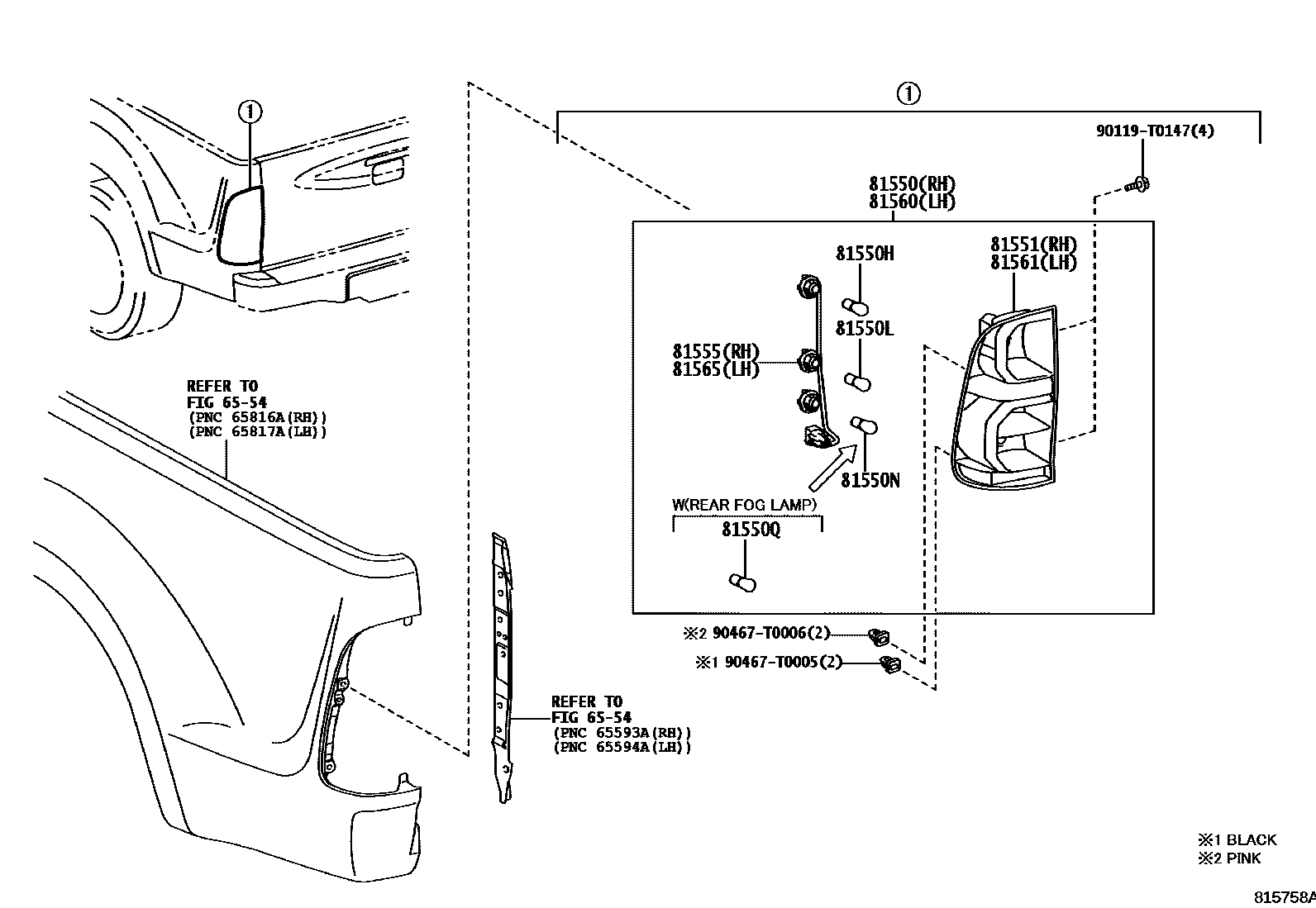

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K140iKUN2#,35..LHD..(THDCB,THSCB,XTR)..CBU201107-201504

main81550-0K150iKUN25..RHD..XTR201107-201504

main81550-0K160iKUN2#,35..LHD..(DCB,SCB)..CBU201108-201512

main81550-0K170iKUN2#..RHD..(DCB,SCB)201108-201512

main81550-0K360iKUN25,35..IV3201310-201512

main81550-71010iKUN25,35..IV3201107-201310

81550HBULB, TAIL & STOP LAMP

main90981-TD004iKUN25,35..IV3201408-201512

12V 21/5W

main99132-21210iKUN25,35..IV3201107-201408

12V 21/5W

main99132-21210iKUN2#,35..CBU201107-201512

81550LBULB, REAR TURN SIGNAL LAMP

main90981-TD003iKUN25,35..IV3201408-201512

12V 21W

main90981-WF005iKUN2#,35..(THDCB,THSCB,XTR)..CBU201205-201504

12V 21W

main90981-WF006iKUN2#,35..(THDCB,THSCB,XTR)..CBU201107-201204

12V 21W,AMBER

main90981-WF006iKUN2#,35..(DCB,SCB)..CBU201107-201512

main99132-11210iKUN25,35..IV3201107-201408

12V 21W

81550NBULB, BACK UP LAMP

main90981-TD003iKUN25,35..IV3201408-201512

12V 21W

main99132-11210iKUN25,35..IV3201107-201512

12V 21W

81550QBULB, REAR FOG LAMP, NO.1

main99132-11210iKUN2#,35..CBU201107-201512

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K140iKUN2#,35..LHD..(THDCB,THSCB,XTR)..CBU201107-201504

main81551-0K150iKUN25..RHD..XTR201107-201504

main81551-0K160iKUN2#,35..LHD..(DCB,SCB)..CBU201108-201512

main81551-0K170iKUN2#..RHD..(DCB,SCB)201108-201512

main81551-0K360iKUN25,35..IV3201310-201512

main81551-60442iKUN25,35..IV3201107-201310

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K140iKUN2#,35..LHD..(THDCB,THSCB,XTR)..CBU201107-201504

main81555-0K150iKUN25..RHD..XTR201107-201504

main81555-0K160iKUN2#,35..(DCB,SCB)..CBU201108-201512

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K150iKUN25..RHD..XTR201107-201504

main81560-0K160iKUN2#,35..LHD..(THDCB,THSCB,XTR)..CBU201107-201504

main81560-0K170iKUN2#..RHD..(DCB,SCB)201108-201512

main81560-0K180iKUN2#,35..LHD..(DCB,SCB)..CBU201108-201512

main81560-0K400iKUN25,35..IV3201310-201512

main81560-71010iKUN25,35..IV3201107-201310

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K150iKUN25..RHD..XTR201107-201504

main81561-0K160iKUN2#,35..LHD..(THDCB,THSCB,XTR)..CBU201107-201504

main81561-0K170iKUN2#..RHD..(DCB,SCB)201108-201512

main81561-0K180iKUN2#,35..LHD..(DCB,SCB)..CBU201108-201512

main81561-0K400iKUN25,35..IV3201310-201512

main81561-60372iKUN25,35..IV3201107-201310

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K140iKUN25..RHD..XTR201107-201504

main81555-0K150iKUN2#,35..LHD..(THDCB,THSCB,XTR)..CBU201107-201504

main81555-0K160iKUN2#,35..(DCB,SCB)..CBU201108-201512

90119T0147

main90119-T0147

90467T0005

main90467-T0005

90467T0006

main90467-T0006

14 parts on this diagram · 3 diagrams in section
