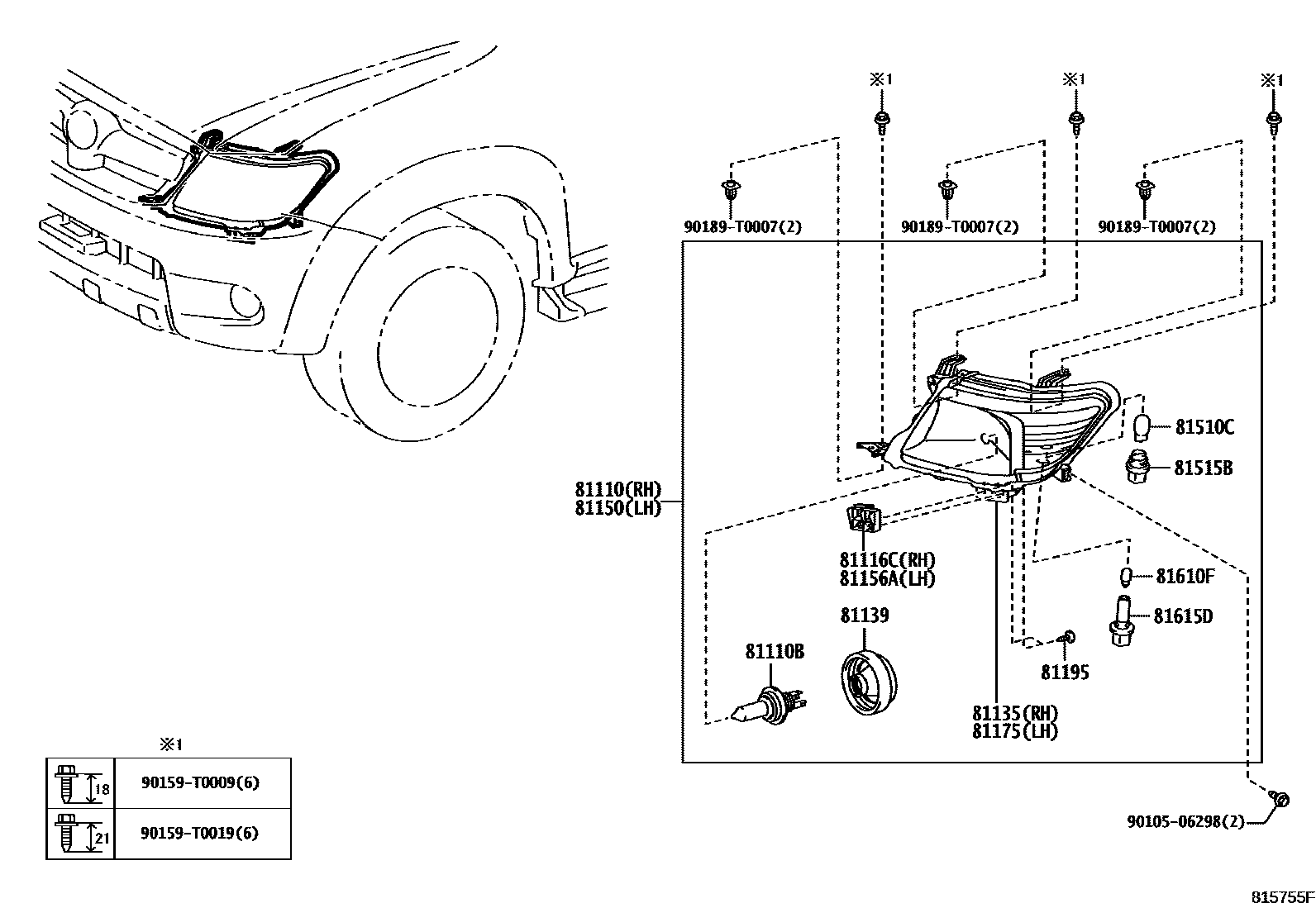

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0K380iKUN25..RHD..XTR201107-201306

sub81110-0K381

main81110-0K381iKUN25..RHD..XTR201307-201504

main81110-0K400iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201306

sub81110-0K401

main81110-0K401iKUN2#,35..LHD..(THDCB,THSCB,XTR)201307-201504

main81110-0K420iKUN2#..RHD..(DCB,SCB)201108-201512

main81110-0K440iKUN2#,35..LHD..(DCB,SCB)201108-201512

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iKUN2#,35201107-201512

12V 60/55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-0K370iKUN2#,35..THDCB,THSCB,XTR201107-201504

main81116-0K410iKUN2#,35..DCB,SCB201108-201512

81135UNIT ASSY, HEADLAMP, RH

main81130-0K380iKUN25..RHD..XTR201107-201307

sub81130-0K381

main81130-0K381iKUN25..RHD..XTR201307-201504

main81130-0K400iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201307

sub81130-0K401

main81130-0K401iKUN2#,35..LHD..(THDCB,THSCB,XTR)201307-201504

main81130-0K420iKUN2#..RHD..(DCB,SCB)201108-201512

main81130-0K440iKUN2#,35..LHD..(DCB,SCB)201108-201512

81139COVER, HEADLAMP SOCKET

main90075-65002iKUN2#,35201107-201512

81150HEADLAMP ASSY, LH

main81150-0K380iKUN25..RHD..XTR201107-201306

sub81150-0K381

main81150-0K381iKUN25..RHD..XTR201307-201504

main81150-0K400iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201306

sub81150-0K401

main81150-0K401iKUN2#,35..LHD..(THDCB,THSCB,XTR)201307-201504

main81150-0K420iKUN2#..RHD..(DCB,SCB)201108-201512

main81150-0K440iKUN2#,35..LHD..(DCB,SCB)201108-201512

81156ABRACKET, HEADLAMP, LH

main81156-0K370iKUN2#,35..THDCB,THSCB,XTR201107-201504

main81156-0K410iKUN2#,35..DCB,SCB201108-201512

81175UNIT ASSY, HEADLAMP, LH

main81170-0K380iKUN25..RHD..XTR201107-201307

sub81170-0K381

main81170-0K381iKUN25..RHD..XTR201307-201504

main81170-0K400iKUN2#,35..LHD..(THDCB,THSCB,XTR)201107-201307

sub81170-0K401

main81170-0K401iKUN2#,35..LHD..(THDCB,THSCB,XTR)201307-201504

main81170-0K420iKUN2#..RHD..(DCB,SCB)201108-201512

main81170-0K440iKUN2#,35..LHD..(DCB,SCB)201108-201512

81195SCREW, HEADLAMP

main81136-0K180iKUN2#,35..THDCB,THSCB,XTR201107-201504

main81136-0K410iKUN2#,35..DCB,SCB201108-201512

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iKUN2#,35201107-201512

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iKUN2#,35201107-201512

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iKUN2#,35201107-201512

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iKUN2#,35201107-201512

9010506298

main90105-06298

90159T0009

main90159-T0009

90159T0019

main90159-T0019

90189T0007

main90189-T0007

17 parts on this diagram · 1 diagram in section
