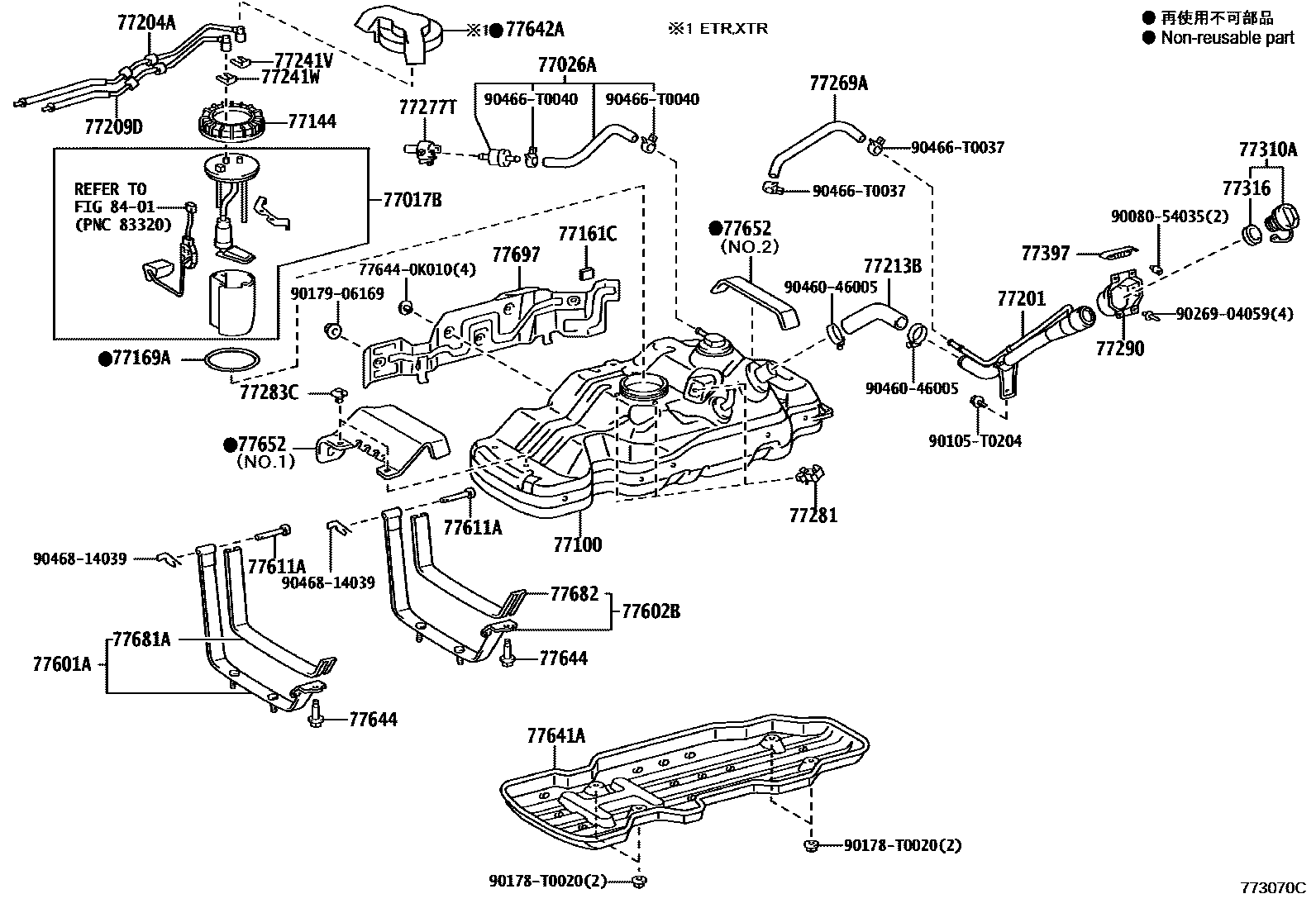

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL LID OPENER

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-0K011iKUN2#,35201107-201512

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77027-0K010iKUN2#,35201107-201512

77100TANK ASSY, FUEL

main77001-0K081iKUN2#,35..DCB,SCB201108-201512

main77001-0K220iKUN2#,35..THDCB,THSCB,XTR201107-201504

77144RETAINER, FUEL PUMP GAUGE

main77144-0K010iKUN2#,35201107-201512

77161CPROTECTOR, FUEL TANK, LOWER

main77671-0K010iKUN2#,35201107-201512

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iKUN2#,35201107-201512

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K100iKUN2#,35..CBU201107-201512

main77201-0K120iKUN25,35..IV3201107-201512

77204ATUBE, FUEL TANK RETURN

main77204-0K020iKUN2#,35..DCB,SCB201107-201504

main77204-0K200iKUN2#,35..DCB,SCB201304-201512

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K020iKUN2#,35..DCB,SCB201107-201504

main77209-0K260iKUN2#,35..DCB,SCB201304-201512

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K020iKUN2#,35201107-201502

sub77213-0K021

main77213-0K021iKUN2#,35201503-201512

77241VCLIP, TUBE JOINT

main77241-35450iKUN2#,35201107-201512

77241WCLIP, TUBE JOINT

main77241-33011iKUN2#,35201107-201512

77269AHOSE, FUEL TANK BREATHER

main77269-0K020iKUN2#,35201107-201512

77277TBRACKET, CHECK VALVE

main77277-0K010iKUN2#,35201107-201512

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K070iKUN2#,35201107-201512

77283CBRACKET, FUEL TANK PROTECTOR

main77283-0K010iKUN2#,35201107-201512

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0K010iKUN2#,35..(THDCB,THSCB,XTR)..CBU201107-201504

main77290-0K020iKUN2#,35..(DCB,SCB)..CBU201108-201512

77310ACAP ASSY, FUEL TANK

main77300-52030iKUN2#,35..CBU201107-201512

77316GASKET, FUEL TANK CAP

main77316-52040iKUN2#,35..CBU201107-201512

77397PLATE, FUEL INLET PIPE SEAL

main77397-0K010iKUN2#,35..CBU201107-201512

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K040iKUN2#,35..THDCB,THSCB,XTR201107-201504

main77601-0K090iKUN2#,35..DCB,SCB201108-201512

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K040iKUN2#,35..THDCB,THSCB,XTR201107-201504

main77602-0K080iKUN2#,35..DCB,SCB201108-201512

77611APIN (FOR FUEL TANK BAND)

main77653-0K041iKUN2#,35201107-201512

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K050iKUN2#,35..THDCB,THSCB,XTR201107-201504

main77641-0K090iKUN2#,35..DCB,SCB201108-201512

77642APROTECTOR, FUEL TANK, NO.2

main77641-0K100iKUN25,35..XTR201107-201504

77644BOLT, FUEL TANK

main77644-35030iKUN2#,35201107-201512

77652CUSHION, FUEL TANK, NO.1

main77652-0K010iKUN2#,35201107-201512

NO.1:REFER ILLUST.

main77652-0K020iKUN2#,35201107-201512

NO.2:REFER ILLUST.

77681ASEAT, FUEL TANK BAND

main77681-0K040iKUN2#,35201107-201512

77682SEAT, FUEL TANK BAND, LH

main77682-0K020iKUN2#,35201107-201512

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K010iKUN2#,35201107-201512

8401

776440K010BOLT, FUEL TANK

main77644-0K010

9008054035

main90080-54035

90105T0204

main90105-T0204

90178T0020

main90178-T0020

9017906169

main90179-06169

9026904059

main90269-04059

9046046005

main90460-46005

90466T0037

main90466-T0037

90466T0040

main90466-T0040

9046814039

main90468-14039

41 parts on this diagram · 4 diagrams in section
