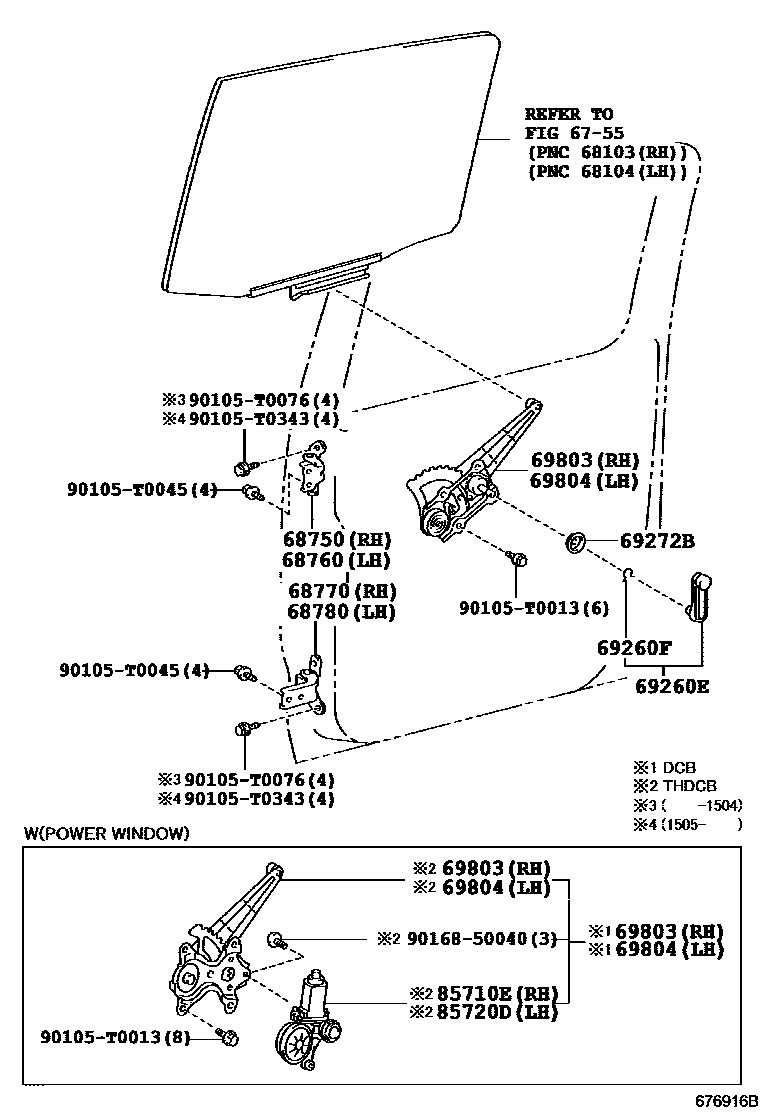

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0K010iKUN2#,35..THDCB201107-201504

main68750-0K020iKUN2#,35..DCB201108-201512

sub68750-0K010

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0K010iKUN2#,35..THDCB201107-201504

main68760-0K020iKUN2#,35..DCB201108-201512

sub68760-0K010

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iKUN2#,35..DCB201108-201512

main68770-52031iKUN2#,35..THDCB201107-201504

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iKUN2#,35..DCB201108-201512

main68780-52031iKUN2#,35..THDCB201107-201504

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0K010-B1iKUN25,35..THDCB..DLX201107-201504

MD.GRAY,TRIM1#

main69260-0K010-C0iKUN25,35..THDCB..DLX201308-201504

BLACK,TRIM2#

main69260-0K020-B1iKUN2#,35..LHD..DCB..DLX201108-201512

MD.GRAY,TRIM1#

main69260-0K020-C0iKUN2#,35..LHD..DCB..DLX201310-201512

BLACK,TRIM2#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKUN2#,35..LHD..(DCB,THDCB)..DLX201107-201512

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-04020iKUN25,35..THDCB..DLX201107-201504

main69268-0K010iKUN2#,35..LHD..DCB..DLX201108-201512

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K010iKUN2#,35..THDCB..SR201107-201504

main69830-0K010iKUN25,35..THDCB..DLX201107-201504

main69830-0K031iKUN2#,35..LHD..DCB..DLX201108-201512

main69830-0K041iKUN26..RHD;KUN25,35..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..DCB..DLX201108-201512

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K010iKUN2#,35..THDCB..SR201107-201504

main69840-0K010iKUN25,35..THDCB..DLX201107-201504

main69840-0K031iKUN2#,35..LHD..DCB..DLX201108-201512

main69840-0K041iKUN26..RHD;KUN25,35..DCB..SR;KUN26..LHD..DCB..SR;KUN25..RHD..DCB..DLX201108-201512

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K020iKUN2#,35..THDCB..SR201107-201504

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K020iKUN2#,35..THDCB..SR201107-201504

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

90105T0343

main90105-T0343

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section
