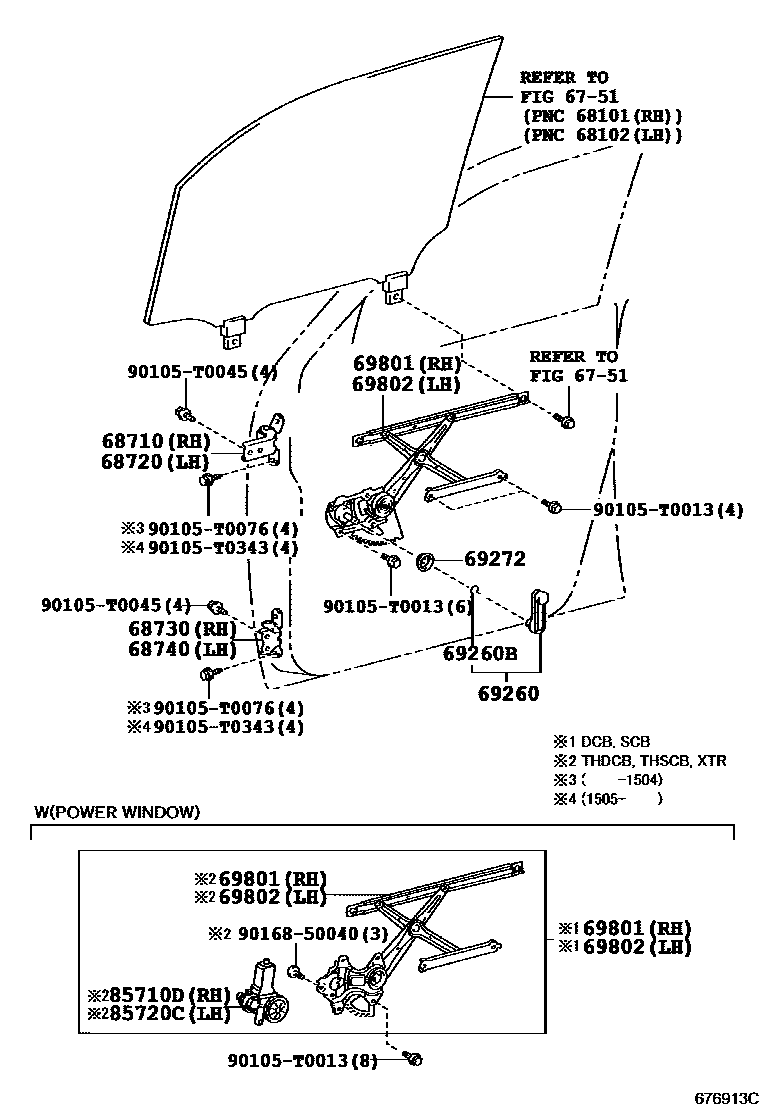

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iKUN2#,35..DCB,SCB201108-201512

main68710-0D030iKUN2#,35..THDCB,THSCB,XTR201107-201504

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iKUN2#,35..DCB,SCB201108-201512

main68720-0D030iKUN2#,35..THDCB,THSCB,XTR201107-201504

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iKUN2#,35201107-201512

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iKUN2#,35201107-201512

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K010-B1×2iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX201107-201504

MD.GRAY,TRIM1#

main69260-0K010-C0×2iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX201308-201504

BLACK,TRIM2#

main69260-0K020-B1×2iKUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX201108-201512

MD.GRAY,TRIM1#

main69260-0K020-C0×2iKUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX201310-201512

BLACK,TRIM2#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKUN35..DLX;KUN35..SCB..SR;KUN25..LHD..(SCB,THSCB);KUN2#..LHD..(DCB,THDCB,XTR)..DLX201107-201512

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020×2iKUN25,35..LHD..(THDCB,THSCB,XTR)..DLX201107-201504

main69268-0K010×2iKUN35..SCB..SR;KUN25..LHD..SCB;KUN2#..LHD..DCB..DLX;KUN35..(DCB,SCB)..DLX201108-201512

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K011supersedes 69810-0K011iKUN25..RHD..XTR;KUN2#,35..(THDCB,XTR)..SR201107-201504

main69810-0K041supersedes 69810-0K031iKUN25..RHD..SCB;KUN25,35..DCB..SR;KUN26..LHD..DCB..SR;KUN2#..RHD..DCB..DLX201108-201512

main69810-0K141iKUN26..RHD..SR201108-201512

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K011supersedes 69820-0K011iKUN25..RHD..XTR;KUN2#,35..(THDCB,XTR)..SR201107-201504

main69820-0K041supersedes 69820-0K031iKUN26..RHD;KUN25..RHD..SCB;KUN25,35..DCB..SR;KUN25..RHD..DCB..DLX201108-201512

main69820-0K141iKUN26..LHD..DCB..SR201108-201512

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K010iKUN25..RHD..XTR;KUN2#,35..(THDCB,XTR)..SR201107-201504

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K010iKUN25..RHD..XTR;KUN25,35..(THDCB,XTR)..SR201107-201504

main85720-0K050iKUN26..THDCB201107-201504

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

90105T0343

main90105-T0343

9016850040

main90168-50040

17 parts on this diagram · 1 diagram in section
